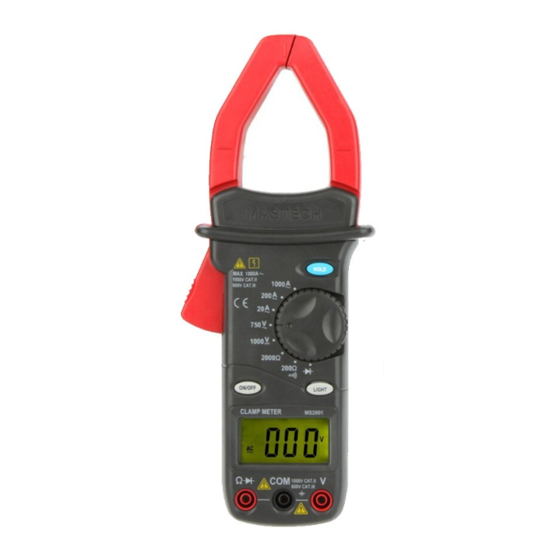

Mastech MS2001 Operator's Instruction Manual

DIGITAL CLAMP METER
DIGITAL CLAMP METER
Safety Information
The digital clamp meter has been designed according to IEC
1010-1 and IEC1010-2-032 concerning safety requirements
OPERATOR'S
for electrical measuring instruments and hand – held current
INSTRUCTION MANUAL clamps with overvoltage category 1000V CAT II 600V CAT III
and pollution 2.
Safety Symbols
Important safety information, refer to the
operating manual.
Dangerous voltage may be present.
Earth ground.
Double insulation ( Protection class 1000V
CAT II 600V CAT III ).
MAX 1000A~ HOLD
1000V CAT ll
The digital clamp meter complies with the requirements of the
600V CAT lll 1000A
~
200A following European Community Directives: 89/336/EEC ( Elec-
~
750V
~ tromagnetic Compatibility ) and 73/23/EEC ( Low Voltage ) as
1000V amended by 93/68/EEC ( CE Marking ).
1000Ω However, electrical noise or intense electromagnetic fields in
2000Ω the vicinity of the equipment may disturb the measurement
200Ω
circuit.Measuring instruments will also respond to unwanted
ONOFF LIGHT signals that may be present within the measurement circuit.
Users should exercise care and take appropriate precautions
CLAMP METER
to avoid misleading
°C
DC Ω
V
AC
~ A
2 20 200 KHz
Ω COM V
1000V CAT ll
600V CAT lll
DIGITAL CLAMP METER
Safety Precautions
Follow all safety and operating instructions to ensure maximum
personal safety during the operation and to ensure the meter is
used safely and is kept in good operating condition.
•
Read these operating instructions thoroughly and completely
before operating your meter. Pay particular attention to
WARNINGS, which will inform you of potentially dangerous
procedures. The instructions in these warnings must be followed.
• Always inspect your meter and test leads for any sign of
damage or abnormality before every use. If any abnormal
conditions exist (i.e. broken test leads, cracked cases, display
not reading, etc.), do not attempt to take any measurements.
• Do not expose the instrument to direct sunlight, extreme
temperature or moisture.
•
Never ground yourself when taking electrical measurements.
Do not touch exposed metal pipes, outlets, fixtures, etc., which
might be at ground potential. Keep your body isolated from
ground by using dry clothing; rubber shoes, rubber mat, or any
approved insulating material.
• You always are careful when working with voltages above 60V
dc or 30V ac rms. Keep fingers behind the probe barriers while
measuring.
• Never use the meter to measure voltages that might exceed
the maximum allowable input value of any function.
• Never touch exposed wiring, connections or any live circuit
when attempting to take measurements.
01
02
DIGITAL CLAMP METER DIGITAL CLAMP METER
Maintenance 5 Display
3 1/2 digit, 7 segment, 16mm high, LCD.
•
Before opening the case, always disconnect test leads from all
6
"V" jack
energized circuits.
This is positive input terminal for VOLT measurements
• Never use the meter unless the back cover is in place and
connection is made to it using the red test lead.
fastened completely.
7
"COM" jack
•
Do not use abrasives or solvents on the meter. To clean it using
This is negative ( ground ) input terminal for all
a damp cloth and mild detergent only.
measurement modes except current. Connection is
•
Qualified and trained service technicians should only perform
made to it using the black test lead.
calibration and repair of the meter.
Ω
• Do not attempt calibration or service unless trained and another 8 "
person capable of rendering first aid and resuscitation is present.
This is the positive input terminal for ohms and diode.
Connection is made to it using the red test lead.
General Description
9 Power Switch
The meter is a handheld 3 1/2 digital clamp meter for
A push push switch is used to turn the meter on or off.
measuring DC and AC voltage, AC current, Resistance,
Trigger
10
Diode and Continuity Test with battery operated.
Press the lever to open the transformer jaws. When the
Front Panel Description lever is released, the jaws will close again.
1
Transformer jaws
Pick up the AC current flowing through the conductor.
2 Hold button
When this button is pushed, the display will keep the
last reading and " H " symbol will appear on the LCD
until pushing it again.
3
Rotary switch
This switch is used to select functions and desired
ranges.
4 Back light
To use this function, press the LIGHT button. When this
button is pushed, the Back light of display is on. After
about 3 5 seconds, the Back light is self-off. The Back
light is on again, just push this button once.
03
DIGITAL CLAMP METER
CLAMP METER LAYOUT
" jack
10
9
8
7
04
1
2
MAX 1000A~ HOLD
1000V CAT ll
600V CAT lll 1000A
~
200A
~
750V
~
3
1000V
1000Ω
2000Ω
200Ω
4
ONOFF LIGHT
CLAMP METER
°C
DC Ω
5
V
AC
~ A
2 20 200 KHz
Ω COM 1000V CAT ll V
600V CAT lll
5
05
