Operation

6 Operation
The EtherNet/IP Module is designed for use in a system
complying with the ODVA Common Industrial Protocol. For
successful operation, the scanner must also support all
functions and interfaces described in this manual.

6.1 Device Classification

The EtherNet/IP Module is an Adapter class device and
must be managed by a Scanner class device over Ethernet.

6.2 Scanner Configuration

6.2.1 EDS File

6 6
Download the EDS file from drives.danfoss.com/services/pc-
tools. The EDS file contains all required attributes of the
EtherNet/IP Module.
Once the EDS file is loaded, define the individual
EtherNet/IP Module. Input/output registers must be 240
bytes in size and type INT.

6.3 LEDs

Table 6.1 Feedback LEDs
12
EtherNet/IP Module
LED name LED status Description
Off The module is not powered up.
Power
On The module receives power.
Off The module is not powered up or does not have an IP address.
Error Flashing Connection timeout.
On Duplicate IP address.
Off The module is not powered up or does not have an IP address.
Flashing The module has obtained an IP address but has not established any network
Status
connections.
On Communication has been established.
Off No network connection.
Link x
On Connected to a network.
TX/RX x Flashing Transmitting or receiving data.
Danfoss A/S © 05/2017 All rights reserved.

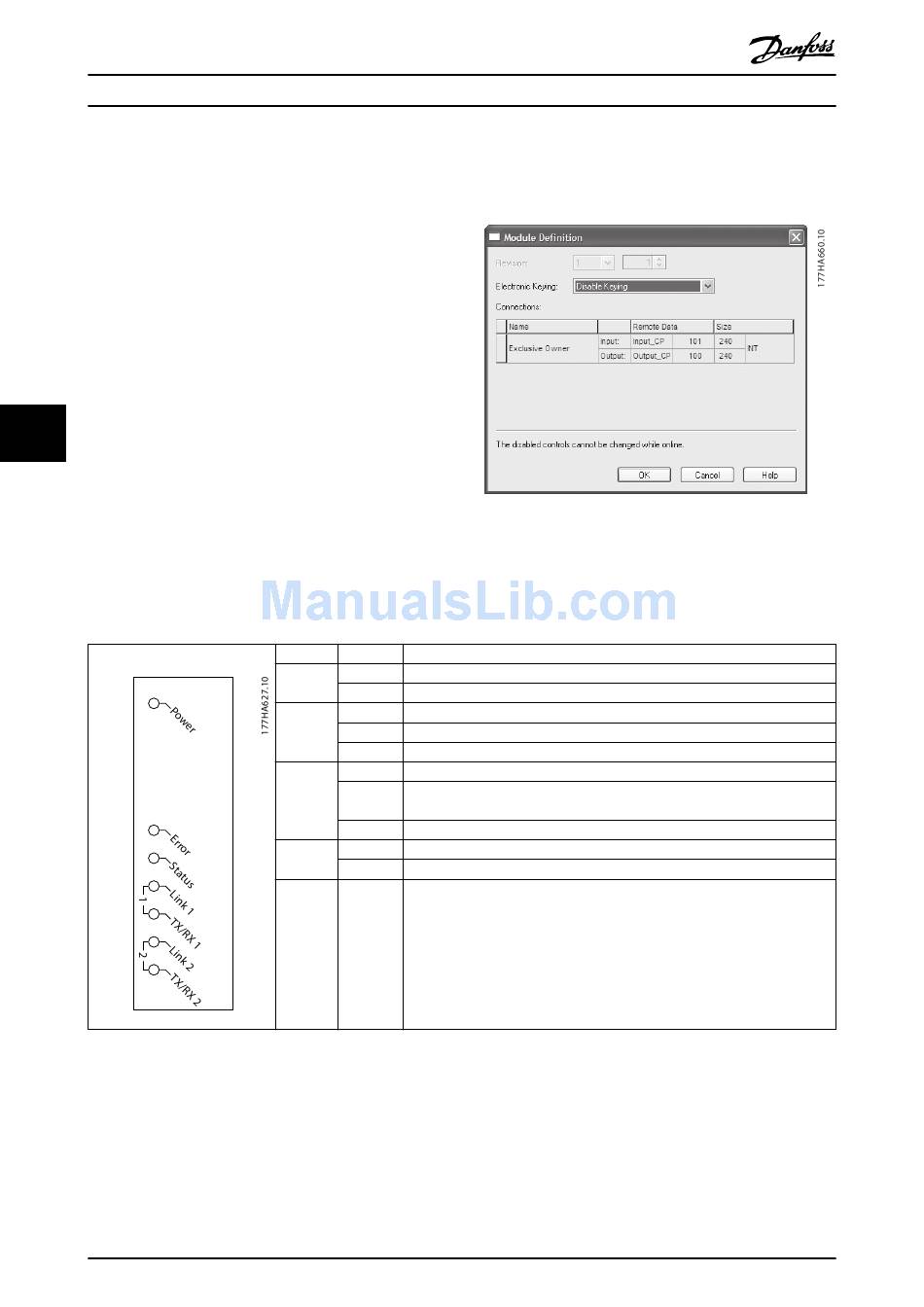

Illustration 6.1 Module Definition of the EtherNet/IP Module,
Using RSLogix 5000
