This range hood is equipped standard with a 8" round vertical duct option. To convert from 8" round vertical to 8"
round horizontal ducting or 3-1/4" x 10" rectangular horizontal ducting please following the instructions below.

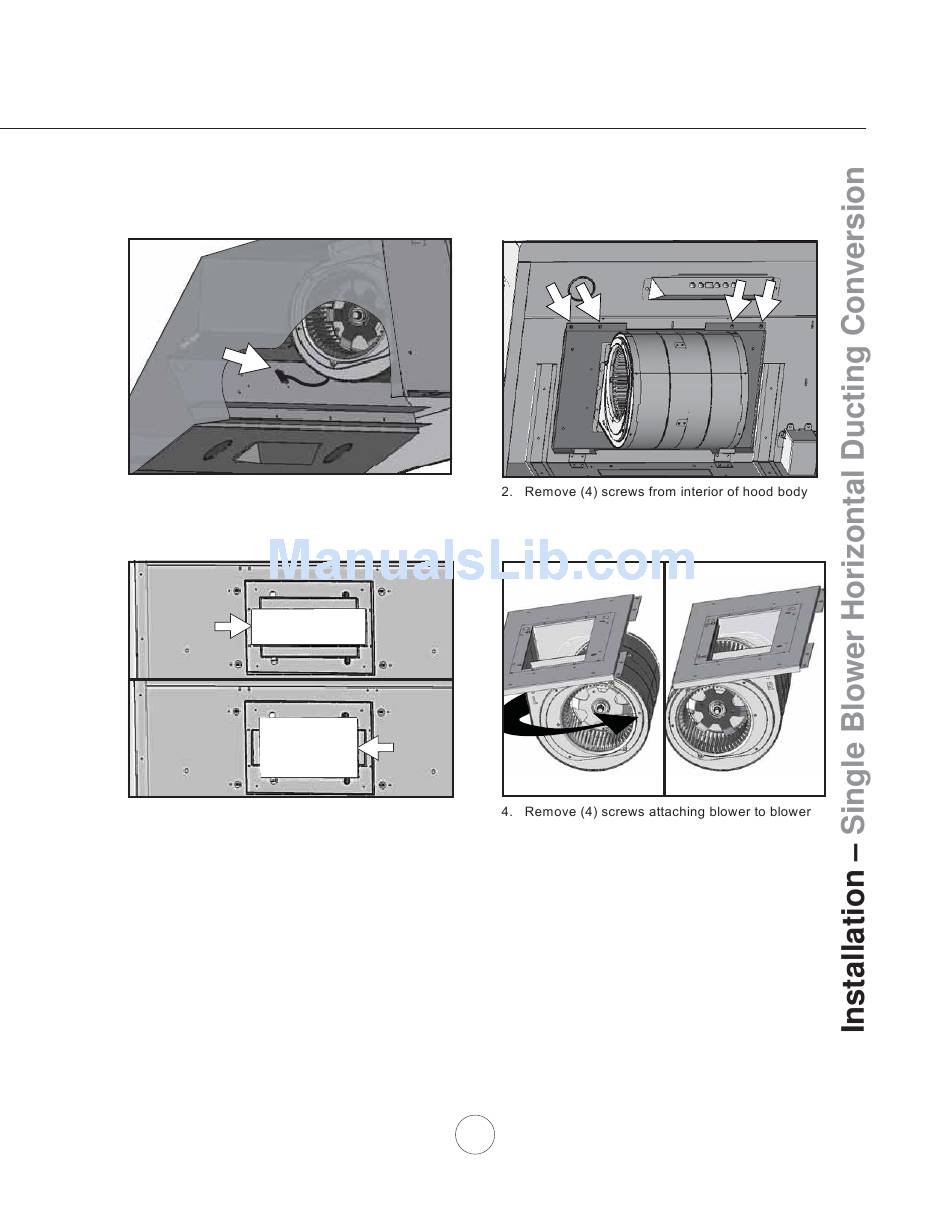

VERTICAL TO HORIZONTAL DUCTING CONVERSION
1. Disconnect blower plug.
B
3. Knock out rear plate B for rear rectangular rear
ducting or plate C for 8 inch round rear ducting.
attaching single blower plate to top of hood
body. Remove single blower and single blower
plate.
C
plate. Turn blower 180 degrees and reattach to
blower plate.
