Use the UP/DOWN arrow buttons to select the valid PAN ID value.
5.
Press FAN to store the value in memory.
6.
o
o
Press
F|
C to exit service mode.
7.

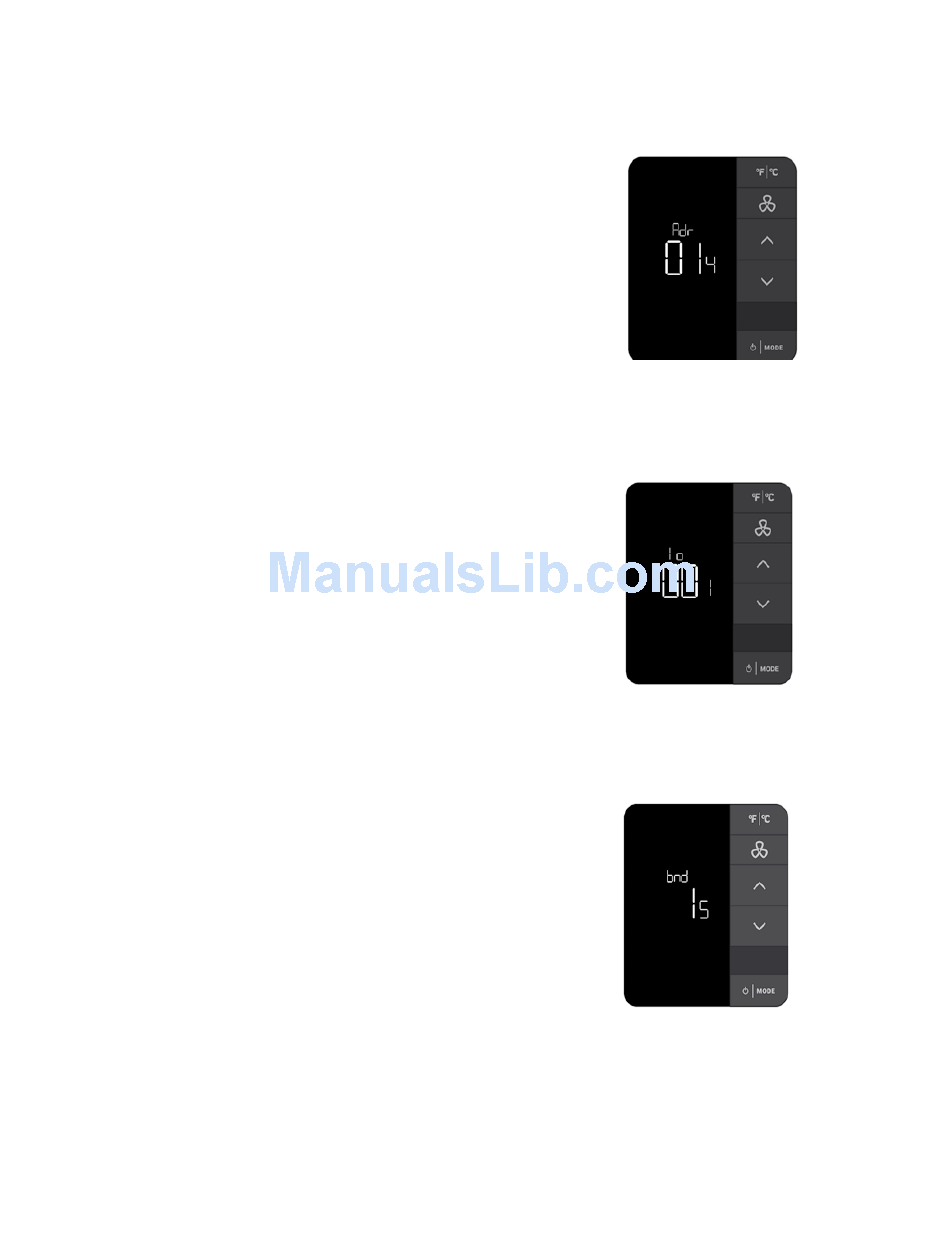

TEACHING A DEVICE ADDRESS

Teaching a device address binds a device to the e7 by passing the Room ID,
PANID, and RF channel to that device and at the same time setting the target
device address to the displayed Adr value. Follow these steps:
Set the Room ID, PAN ID and RF Channel in the e7 according to instruc-
1.
tions in this manual.
In SERVICE MODE, use the UP/DOWN arrow buttons to select Adr.
2.
Press MODE. The information display changes to show Adr and value
3.
001. Use the UP/DOWN arrow buttons to change the displayed value to
the target address.
Press FAN to initiate a reverse bind, or press MODE to initiate a forward bind. Refer to device-specific binding
4.
documentation to determine which type of binding to use.
Refer to INNCOM Application Note 323 for device specific Address Teach instructions.
5.
o
o
Press
F|
C three times to exit service mode.
6.

TEACHING A DEVICE I/O MAP

Teaching an I/O Map binds a device to the e7 by passing the Room ID, PANID,
and RF channel to that device and at the same time activating an I/O Map in the
target device. Follow these steps:
Set the Room ID, PAN ID and RF Channel in the e7 according to instruc-
1.
tions in this manual.
In SERVICE MODE, use the UP/DOWN arrow buttons to select Io.
2.
Press MODE. The information display changes to show Io and a value.
3.
Use the UP/DOWN arrow buttons to change the displayed value to the
desired I/O map.
Press FAN to initiate a reverse bind or press MODE to initiate a forward
4.
bind. Refer to device-specific binding documentation to determine which type of binding to use
Refer to INNCOM Application Note 323 for device specific I/O Map Teach instructions.
5.
o
o
Press
F|
C three times to exit service mode.
6.

BINDING A REMOTE DEVICE

Use this feature to bind a Ving or Salto RF lock to a device that does not have a
User Interface, such as a PC502.4G or Evora. To bind a remote device, do the
following:
Set the Room ID, PAN ID and RF Channel in the e7 following instruc-
1.
tions in this manual.
In SERVICE MODE, use the UP/DOWN arrow buttons to select Adr.
2.
Press MODE. The information display changes to show Adr and value
3.
001. Use the UP/DOWN arrow buttons to change the displayed value to
the target address (65 for Timelox, 69 for Salto).
Press F/C to temporarily store the defined address. The display changes
4.
back to show Adr.
Press the UP arrow button until bnd is selected. Press MODE to show current value.
5.
Use the UP/DOWN arrow buttons to change the displayed value to the Address to send the Open Bind window
6.
command.
Press FAN button to make the e7 send the Open Bind window command to the defined address.
7.
o
o
Press
F|
C twice to exit service mode.
8.
INNCOM E7 THERMOSTAT USER GUIDE
23
36-00013—02
