- Page 1 4-in 1-out HDMI v1.3 With Digital Audio Switcher Operation Manual CLUX-41AT...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................. 1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions..........2 4.1 Front Panel................2 4.2 Rear Panel................2 4.3 Remote Control..............3 4.4 RS-232 Protocol..............4 4.4.1 Pin Definition..............4 4.4.2 Commands..............4 5. -
Page 3: Introduction
1. Introduction CLUX-41AT is a high performance HDMI v1.3 switcher with separate digital audio input and output. It allows your various HDMI sources to share one HDTV display. Simply pressing one button you can select your desired HDMI source for display on the HDTV, meanwhile the selected digital audio will be passed through the Toslink (Optical Fiber) or Coaxial channel to play on your audio amplifier. -
Page 4: Operation Controls And Functions

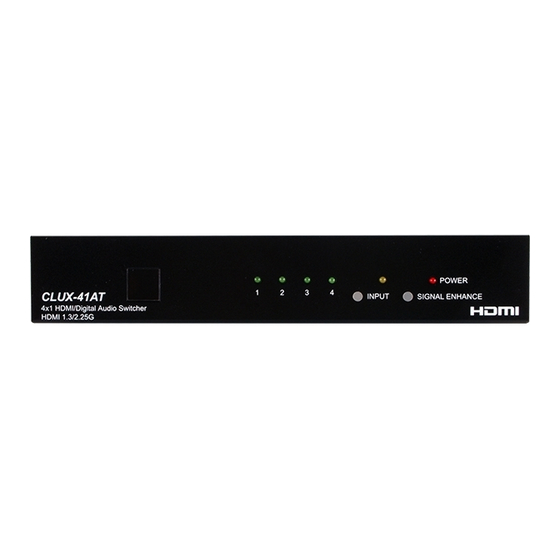

4. Operation Controls and Functions 4.1 Front Panel POWER CLUX-41AT INPUT SIGNAL ENHANCE 4x1 HDMI/Digital Audio Switcher HDMI 1.3/2.25G 1. Remote control sensor. 2. Input select/Indicators: Press the "INPUT" button repeatedly to switch to your desired input source (HDMI/Toslink/Coaxial) and the LED will illuminate to indicate which input source is being selected. -
Page 5: Remote Control
3. Digital audio output: - Connects the Toslink output to the Toslink input of your display using optical cable. - Connects the digital SPDIF output to the digital coaxial input of the display using coaxial cable. 4. HDMI inputs: Connect your various HDMI sources to each of the HDMI input of the unit using HDMI cables. -
Page 6: Rs-232 Protocol
4.4 RS-232 Protocol 4.4.1 Pin Definition Remote Control Console CLUX-41AT Definition Definition * RS-232 transmission format: Baud Rate: 9600 bps Data bit: 8 Bits Parity: None Stop Bit: 1 bit 4.4.2 Commands COMMAND ACTION "I" + "1" PORT 1 ON "I"... -
Page 7: Specifications
5. Specifications 5.1 General Specification * Frequency bandwidth: 2.25 Gbps (single link) * Inputs: 4 x HDMI female ports (Type A connector) 4 x Toslink digital audio out 4 x Coaxial digital audio out * Outputs: 1 x HDMI female port (Type A connector) 1 x Toslink digital audio out 1 x Coaxial digital audio out * 5VDC power supply... - Page 8 2x1 HDMI V1.3 Switcher CLUX-31S 3x1 HDMI V1.3 Switcher CLUX-31SY 3x1 HDMI V1.3 Switcher CLUX-41SY 4x1 HDMI V1.3 Switcher CLUX-42S 4x2 HDMI V1.3 Switcher CLUX-41AT 4x1 HDMI V1.3 Switcher with Digital Audio CLUX-210T 2x10 HDMI V1.3 Splitter with Digital Audio...
