Commissioning
5.3.2 LCP Layout
The LCP is divided into 4 functional groups (see
Illustration 5.1).
A. Display area
B. Display menu keys
C. Navigation keys and indicator lights (LEDs)
D. Operation keys and reset
5 5
1
2
A
4
6
B
7
10 C
On
15
Warn.
16
Alarm
17
D
18

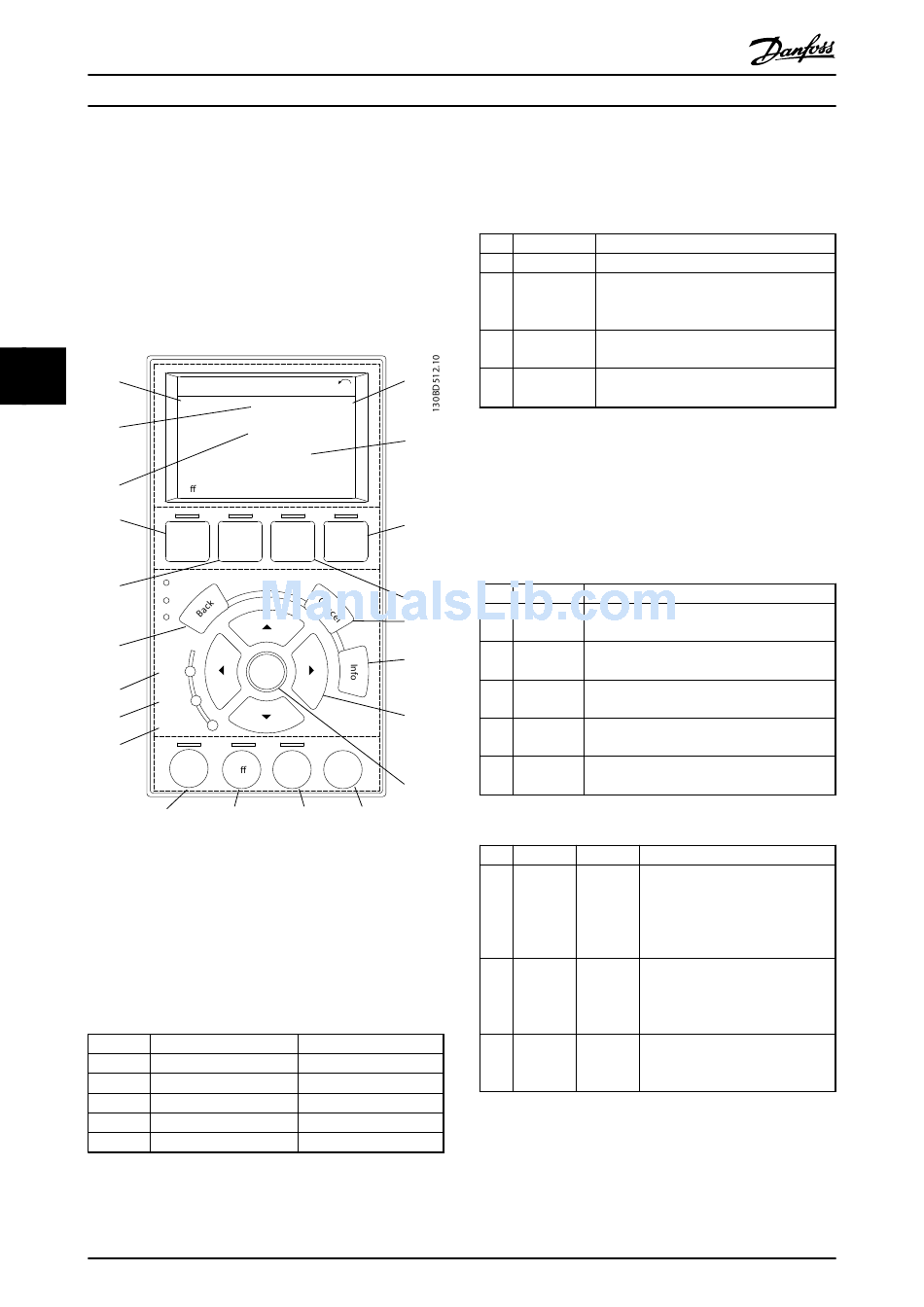

Illustration 5.1 Local Control Panel (LCP)
A. Display Area
The display area is activated when the frequency converter
receives power from mains voltage, a DC bus terminal, or
an external 24 V DC supply.
The information displayed on the LCP can be customized
for user application. Select options in the Quick Menu
Q3-13 Display Settings.
Display
1
2
3
4
5
Table 5.1 Legend to Illustration 5.1, Display Area
22
Status 1(1)
0.0 % 0.00 A 0.00 kW
0.0Hz
2605 kWh
O Remote Stop
Quick Main Alarm
Status
Menu Menu Log
OK
Hand Auto
Reset
O
on on
19 20
Parameter number Default setting
0-20 Reference %
0-21 Motor current
0-22 Power [kW]
0-23 Frequency
0-24 kWh counter
®
VLT HVAC Drive Operating Instructions
B. Display Menu Keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
Key
6 Status
7 Quick Menu
Main Menu
8
9 Alarm Log
3
Table 5.2 Legend to Illustration 5.1, Display Menu Keys
5
C. Navigation Keys and Indicator Lights (LEDs)
Navigation keys are used for programming functions and
moving the display cursor. The navigation keys also
provide speed control in local (hand) operation. There are
9
also 3 frequency converter status indicator lights in this
area.
Key
8
10 Back
11
11 Cancel
12
12 Info
13
Navigation
13
Keys
14 OK
14
21
Table 5.3 Legend to Illustration 5.1, Navigation Keys
Indicator
15 ON
16 WARN
17 ALARM
Table 5.4 Legend to Illustration 5.1, Indicator Lights (LEDs)
MG11AJ02 - Rev. 2013-07-31
Function
Shows operational information.
Allows access to programming parameters
for initial set-up instructions and many
detailed application instructions.
Allows access to all programming
parameters.
Displays a list of current warnings, the last
10 alarms, and the maintenance log.
Function
Reverts to the previous step or list in the
menu structure.
Cancels the last change or command as long
as the display mode has not changed.
Press for a definition of the function being
displayed.
Use the 4 navigation keys to move between
items in the menu.
Use to access parameter groups or to enable
a choice.
Light Function
Green The ON light activates when the
frequency converter receives
power from mains voltage, a DC
bus terminal, or an external 24 V
supply.
Yellow When warning conditions are met,
the yellow WARN light comes on
and text appears in the display
area identifying the problem.
Red A fault condition causes the red
alarm light to flash and an alarm
text is displayed.
