5
5.1
LED indicators
Description of the
LEDs
GR30/GM30/GR50, GR50 User Interface

GR50 User Interface

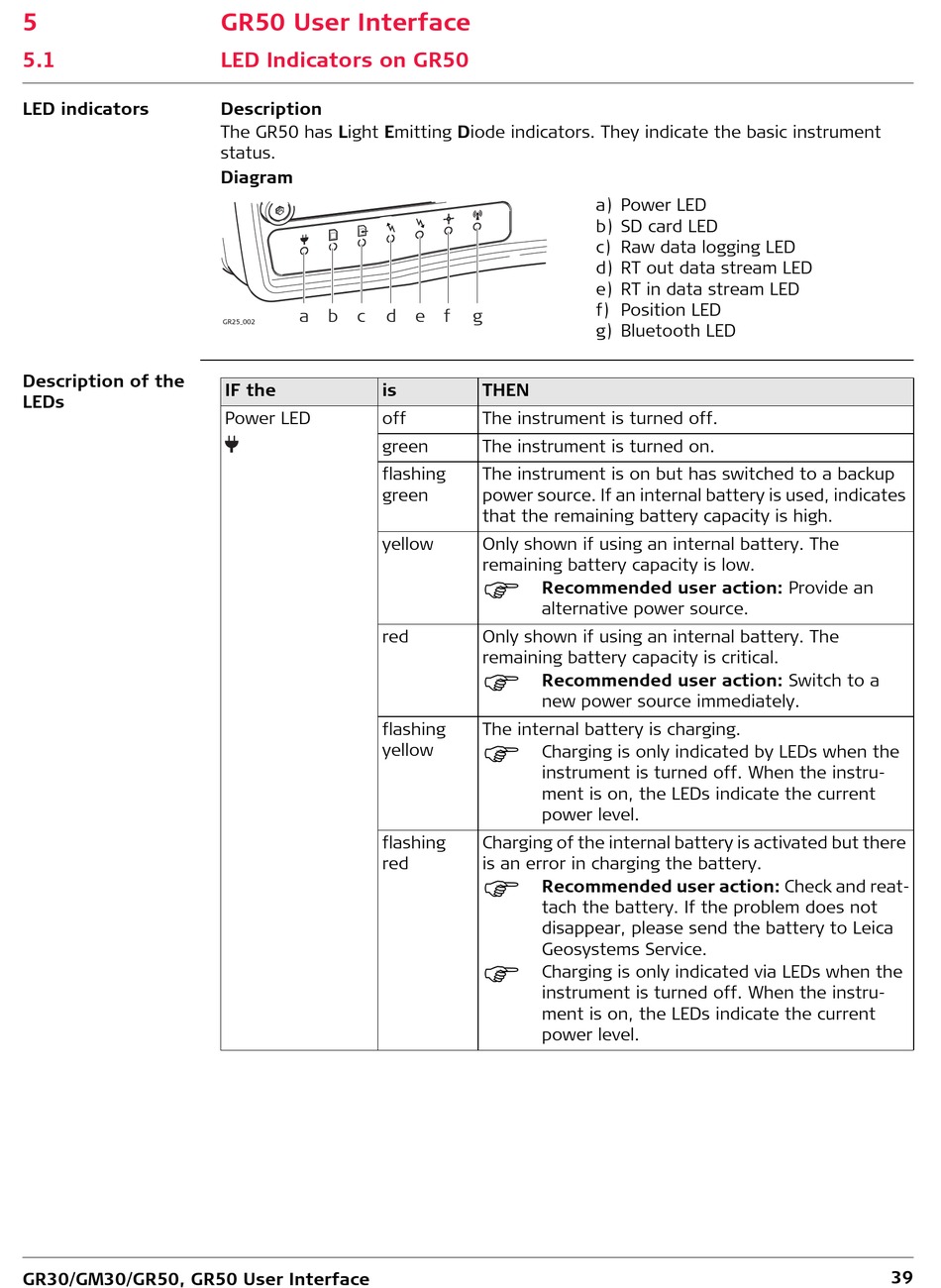

LED Indicators on GR50

Description
The GR50 has Light Emitting Diode indicators. They indicate the basic instrument
status.
Diagram
a b c d
GR25_002
IF the is
Power LED off
green
flashing
green
yellow
red
flashing
yellow
flashing
red
e f g
THEN
The instrument is turned off.
The instrument is turned on.
The instrument is on but has switched to a backup
power source. If an internal battery is used, indicates
that the remaining battery capacity is high.
Only shown if using an internal battery. The
remaining battery capacity is low.

Recommended user action: Provide an
alternative power source.
Only shown if using an internal battery. The
remaining battery capacity is critical.

Recommended user action: Switch to a
new power source immediately.
The internal battery is charging.

Charging is only indicated by LEDs when the
instrument is turned off. When the instru-
ment is on, the LEDs indicate the current
power level.
Charging of the internal battery is activated but there
is an error in charging the battery.

Recommended user action: Check and reat-
tach the battery. If the problem does not
disappear, please send the battery to Leica
Geosystems Service.

Charging is only indicated via LEDs when the
instrument is turned off. When the instru-
ment is on, the LEDs indicate the current
power level.
a) Power LED
b) SD card LED
c) Raw data logging LED
d) RT out data stream LED
e) RT in data stream LED
f) Position LED
g) Bluetooth LED
39
