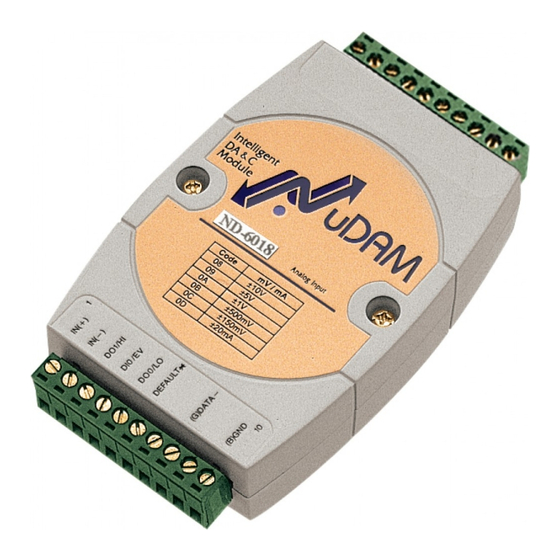

ADLINK Technology NuDAM-6018 User Manual

6000 Series Analog Input Modules
-6018 Thermocouple Analog Input Module

1. Introduction

NuDAM-6018 is a thermocouple input module with 8 input
channels. Six of the eight channels are differential and the
other two are single ended type.
Features
8 analog input channels

6 differential input and 2 single ended input

 programmable input range
programmable host watchdog timer for host failure

protection
on board CJC for temperature measurement

 2500 Vrms analog input isolation
internal watchdog timer for device failure protection

 easy programming by software
easy installation and wiring

Specifications
Interface:

RS-485, 2 wires
Speed (bps): 600, 1200, 2400, 4800, 9600, 19.2k,
38.4k, 57.6k, 115.2k
 Analog Input:
Differential channels: 6
Single ended channels: 2
Resolution: 16 bits
Accuracy: ±0.05%
Sampling rate: 10
Unit conversion: thermocouple, mV, V or mA
Thermocouple type: J, K, T, E, R, S, B, N and C
J: 0C ~ 760C K: 0C ~ 1370C
T: -100C ~ 400C E: 0C ~ 1000C
R: 500C ~ 1750C S: 500C ~ 1750C
B: 500C ~ 1800C N: -270C ~ 1300C
C: 0C ~ 2320C
Voltage range: programmable 6 levels:
±2.5V, ±1V, ±500mV, ±100mV, ±50mV, ±15mV
Current measurement: 20mA (with external 125
ohm resistor)
Isolation Voltage: 2500 Vrms
Note: The maximum input voltage shall not
exceed to ±30V with reference to AGND
otherwise, they may cause an unrecoverable
harm to the hardware component.
Storage Temperature Range: -25 to 80 C

Operating Temperature Range: -10 to 70 C

Power Requirement: +10V to +30V Unregulated

DC
with against power reversal
Power Consumption: 0.70W

 Case: ABS with captive mounting hardware
CE Class A Conformity

The Optimal Choice for Harsh Environment

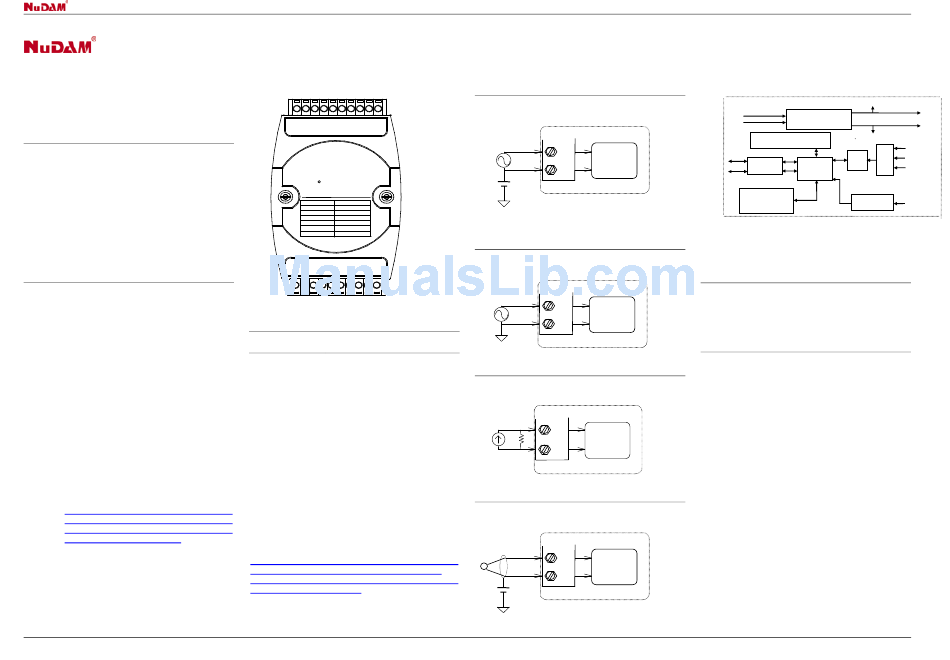

2. Pin Assignment

Vin Vin
Vin Vin Vin Vin Vin
Vin Vin Vin
1+ 0+
4+ 3+ 2+ 1- 0-
4- 3- 2- 11
20
8-CH Thermocouple
Input
ND-6018
T/C
CODE
0E J
0F K
10
T
11 E
12 R
13 S
DE (Y)
*
(B)
FA DA
1 Vin AG Vin (R)
Vin (G) 10
Vin GN
UL TA
+V
5+ ND 7+ DA
6+
5- D
T + s
TA
-
Pin Definitions
Pin # Signal Name Description
1 Vin5+ Differential positive input channel 5
2 Vin5- Differential negative input channel 5
3 Vin6+ Single-ended input channel 6
4 AGND Analog signal ground of channel 6 & 7
5 Vin7+ Single-ended input channel 7
6 DEFAULT* Initial state setting
7 (Y)DATA+ RS-485 signal, positive
8 (G)DATA- RS-485 signal, negative
9 (R)+VS Power supply, +10V ~ +30Vdc
10 (B)GND Ground
11 Vin0+ Differential positive input channel 0
12 Vin0- Differential negative input channel 0
13 Vin1+ Differential positive input channel 1
14 Vin1- Differential negative input channel 1
15 Vin2+ Differential positive input channel 2
16 Vin2- Differential negative input channel 2
17 Vin3+ Differential positive input channel 3
18 Vin3- Differential negative input channel 3
19 Vin4+ Differential positive input channel 4
20 Vin4- Differential negative input channel 4
*The module is in DEFAULT mode when DEFAULT* pin
connected to GND while applying power on the module.
*Do not apply any power signal to DEFAULT* pin, just left
it open or connected it to GND.

3. Application Wiring

Differential Voltage Input
Differential
Signal
Source
IN(+)
ADC
IN(-)
<30V
AGND
AGND
Single Ended Voltage Input
Ground
Signal
Source
IN(+)
ADC
AGND
Current Input Measurement
Current
Source
IN(+)
R
ADC
IN(-)
R=125 Ohm
%1 accuracy
Thermocouple Input Measurement
IN(+)
ADC
IN(-)
<30V
AGND
AGND

4. Functional Block Diagram

Power Input
+ 5V
+10V ~ +30V
Power
Regulator & Filter
GND
Watchdog/Power Failure
Supervisor
Data+
Mux
RS-485 ADC
Micro
Rec/Drv
Processor
Data -
EEPROM
1-bit
Config Data
Safe Value Digital Input

5. Installation

Equipment for Installation
A existing RS-485 network
NuDAM modules
DC Power supply (+10V~+30V)
Wires for power, communication and I/O signal
Installation Procedure
1. Configure every single NuDAM module under the
administration utility
2. The baud rate setting and calibration procedure must be
done under the DEFAULT* mode
3. The baud rate and check-sum status must be identity
with the application network. The address ID must not
be conflict with other modules on the network
4. Plug the new module to the existing network
5. Use the NuDAM administration utility to check the
entire network
8
Thermo-
couple
Input
channels
Default*
Pin
