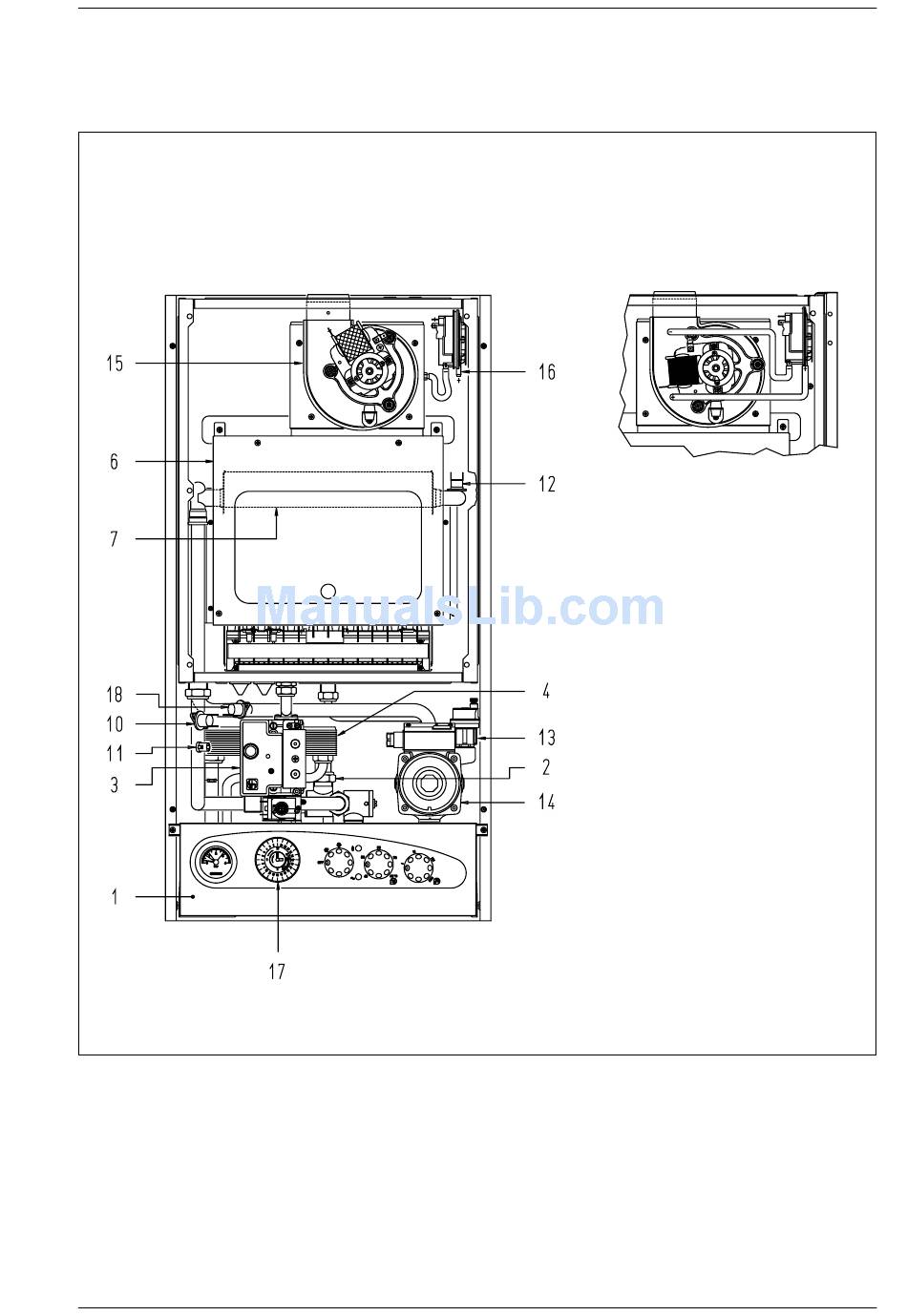

INTERNAL VIEW
22
"FRIENDLY FORMAT 100 E" model
KEY
1 Control panel
2 Divertor valve
3 Gas valve with control box
4 D.H.W. exchager
6 Combustion chamber
7 Water-gas exchager
10 100°C safety thermostat
11 NTC sensor
12 Limit thermostat
13 Air relief valve
14 Circulating pump
15 Fan
16 Smoke pressure switch
17 Time clock ("80 E - 100 E" models)
18 Frosto stat
Fig. 26
