"FRIENDLY FORMAT 80 - 80 E" versions
Sectores of diaphragm
to remove
1
2
4
6
Remove diaphragm
"FRIENDLY FORMAT 100 E" version
Sectores of diaphragm
to remove
1
2
3
4
5
6
Remove diaphragm

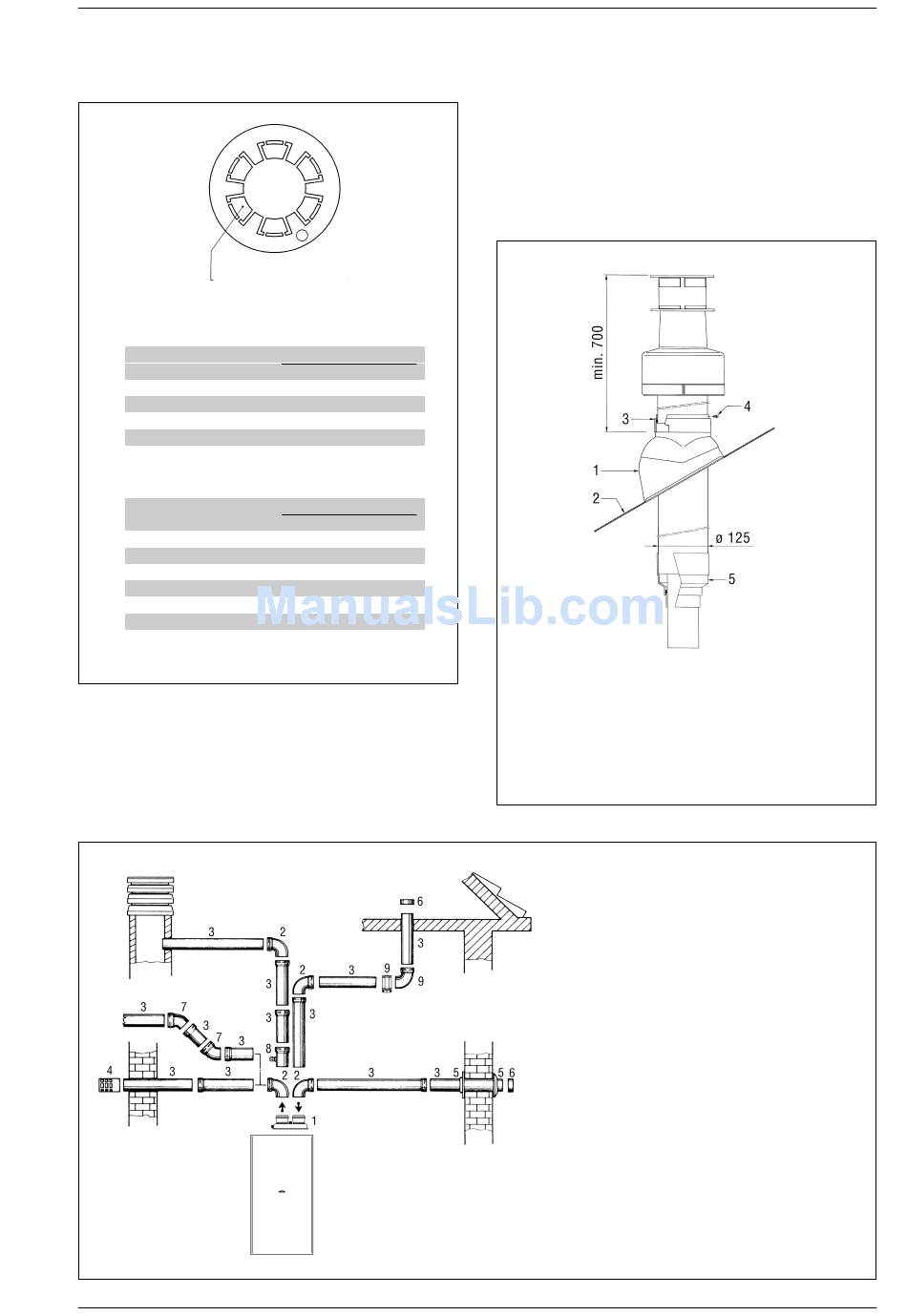

3.6.2 Separate-pipes roof outlet
The roof outlet terminal (1240 mm) cannot be shortened and
when positioning the tile, the minimum distance from the dis-
charge head terminal must not be less than 700 mm (fig. 17).
12
SECTOR OF DIAPHRAGM
Total head loss
mm H O Pa
2
0 ÷ 2 0 ÷ 19,6
2 ÷ 3 19,6 ÷ 29,4
3 ÷ 4 29,4 ÷ 39,2
4 ÷ 5 39,2 ÷ 49,0
5 ÷ 7 49,0 ÷ 68,6
Total head loss
mm H O Pa
2
0 ÷ 2 0 ÷ 19,6
2 ÷ 3 19,6 ÷ 29,4
3 ÷ 4 29,4 ÷ 39,2
4 ÷ 5 39,2 ÷ 49,0
5 ÷ 6 49,0 ÷ 58,8
6 ÷ 7 58,8 ÷ 68,6
7 ÷ 11 68,6 ÷ 107,8
The accessories to be used for this type of installation and
some of the connecting systems that may be adopted are
illustrated in fig. 18. There is the possibility of separating the
air-intake and flue-outlet dusts and then bringing them back
together again so as to obtain a concentric discharge by
using the doubler fitting (7 fig. 18).
Fig. 15
KEY
1 Air-smokes flow plitting unit
with take-off point
2a 90° elbow MF
2b Isolated 90° elbow MF
3a Extension L. 1000
3b Isolated extension L. 1000
4 Outlet terminal
5 Int.-est. ring kit
6 Intake terminal
7 45° elbow MF
8 Condensation outlet L. 135
9 Locking junction (n. 5)
KEY
1 Tile with articulated joint
2 Lead panel
3 Collar
4 Locking screw
5 Reducing fitting with gasket
code 8093000
code 8077404
code 8077408
code 8077303
code 8077306
code 8089501
code 8091500
code 8089500
code 8077406
code 8092800
code 8092700
Fig. 17
Fig. 16
