In these cases, when assembling, recover the silicone gasket
used on the terminal adapter (5 fig. 17), which is to be
replaced by the doubler, and insert it into the seat made in the
doubler. For this type of discharge the sum of the maximum
rectilinear development allowed for the pipes must not
exceed 7.00 mm H O ("80 - 80 E" models) and 11.00 mm
2
H O ("100 E" model). When calculating the lengths of pipe,
2
take into account the parameters given in the Table 2 .
3.7

WATER CONNECTIONS

3.7. 1 Central heating connections
– Fit the two C.H. isolation valves using the gaskets supplied
to the flow and return connections as shown in fig. 2. The
pipe connections are labelled on the lower part of the boiler.
– Connect the C.H. pipework as required.
3.7.2 D.H.W. connections
– Fit the D.H.W. isolation valve to the cold water inlet con-
nection as shown in fig. 2.
– Fit the union connection to the D.H.W. outlet.
– Connect the D.H.W. pipework as required.
3.8

GAS CONNECTIONS

– Screw the gas cock into the internal thread in the gas
inlet connection using a suitable jointing compound.
– Connect the gas supply pipe.

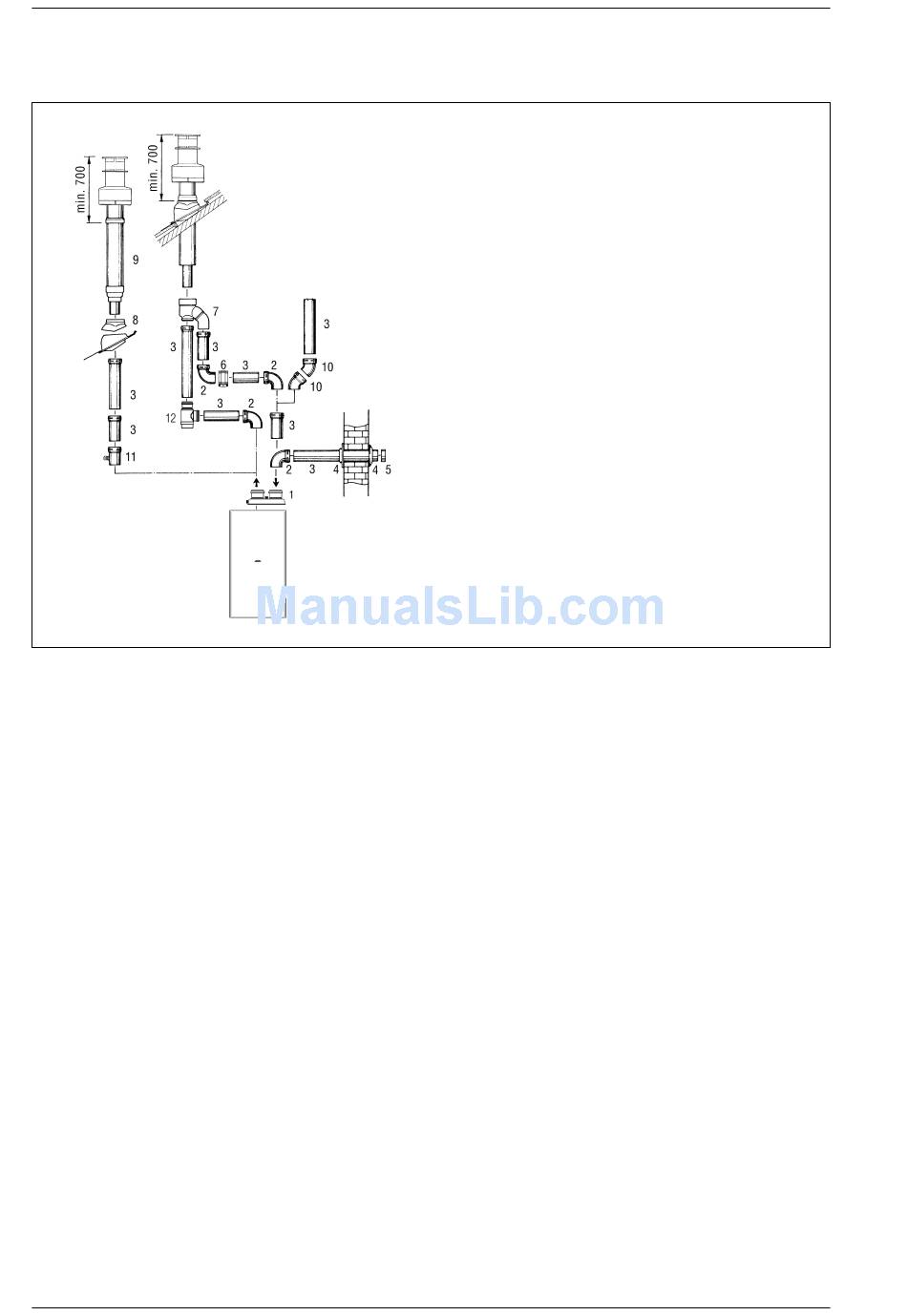

KEY
1 Air-smokes flow splitting unit
with take-off point
2 a 90° elbow MF
2 b Isolated 90° elbows MF
3 a Extension L. 1000
3 b Isolated extension L. 1000
4 Int.-est. ring kit
5 Intake terminal
6 Locking junction (n. 5)
7 Doubler fitting
8 Tile with articualted joint
9 Roof outlet terminal L. 1240
10 45° elbow MF
11 Condensation outlet L. 135
12 Tee condensation outlet
3.9

SAFETY VALVE CONNECTION

– The appliance safety valve is located towards the R.H.S. of
the boiler and the discharge pipe is supplied loose.
Remove the two selftapping screws and lower the control
box to improve access.
– Screw the discharge pipe to the valve outlet using a suit-
able jointing compound, and extend the pipe to ensure
that any discharge from the safety valve is safely routed
to a drain. The discharge pipe should be a minimum of 15
mm copper, and should avoid sharp corners or upward
pipe runs where water may be retained.
3. 1 0

WIRING INSTRUCTIONS

(Refer to sections 2.6 - 2.7 and fig. 19)
The external wiring is connected to the boiler via a lead cable
situated behind the control box at the L.H.S.
– If a room thermostat is to be used, unscrew the two
screws at either side of the control box, pivot the box
downwards, then remove the room thermostat connec-
tion cover (one screw) to gain access to connector TA.
– Remove the pre-wired kink and connect the room thermo-
stat to terminals 22 and 23.
– Re-fit the room thermostat connection cover.
The thermostat or timer-thermostat, recommended for
better room temperature control, must be class II as
specified by standard EN 60730. 1 (clean contact).
– Carry out electrical system checks through a suitable test
meter: earth continuity, polarity, resistance to earth and
short circuit.
– Re-secure control box.
code 8093000
code 8077404
code 8077408
code 8077303
code 8077306
code 8091500
code 8089500
code 8092700
code 8091400
code 8091300
code 8091201
code 8077406
code 8092800
code 8093300
Fig. 18
13
