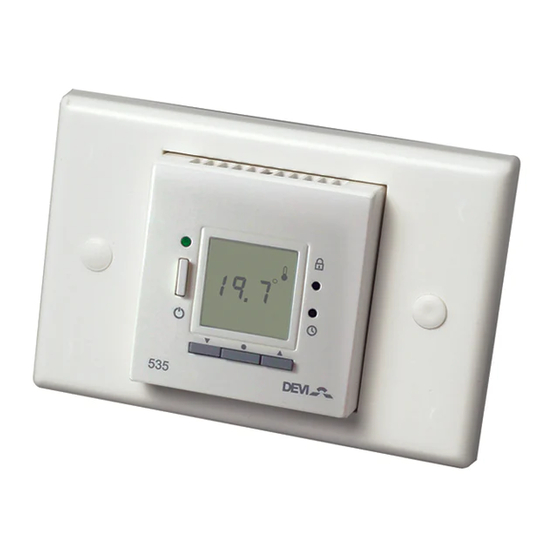

DEVI Devireg 535 Programming Instructions

Devireg 535
™
Programming Instructions
Introduction
The devireg™ 535 allows you to program your heating system by using pre-set program modes. Follow the steps
below to ensure the most desireable outcome to suit your heating requirements. The first step is to configure the
thermostat:
• If your devireg™ 535 has not already been configured by an electrician or installer, go to the section "Configuring the
Thermostat". Otherwise, skip this step.
• After your devireg™ 535 has been configured: There are 4 program modes to choose from. Depending on your requirements,
go to either the section "Manual Mode" or "Program Mode" and follow the steps provided to set up your thermostat.
Heat Indicator:
Red: Heating
Green: At temperature
Configuring the Thermostat
If your thermostat has already been configured by your installer or electrician, there is no need to configure
the thermostat.
Remove
1
front cover
Select
2
sensor mode
Select
maximum
3
floor
temperature
Choose the
4
scale
Save your
5
selection
Phone 1800 636 091 • Email info@devi.com.au • Web www.devi.com.au
BROCDEV002.4
To configure or re-configure your thermostat, you will need to remove the front cover. Depending on the type of cover,
the method of removal is slightly different. Refer to the images above for guidance.
Snap-lock Devireg ™ 535 Front Cover:
Insert a paper clip into the slot (as shown in the diagram above) to snap-release the cover. Gently squeeze both sides of
the cover whilst removing it. Press the top circular button located on the right hand side of the thermostat with a pencil.
Original Devireg ™ 535 Front Cover (if no slot on the bottom of the cover):
With a small screwdriver, gently press the release tabs on both sides of the thermostat (third groove from the bottom),
then remove the cover. Press the top circular button located on the right hand side of the thermostat with a pencil.
If your under floor heating is in a bathroom or wet area, we recommend you select the floor sensor mode . If it is in a dry
area like a bedroom or living room, we recommend floor and room sensor mode
Select (•) button and then use the arrows () until the correct symbols appear. Then press the Select (•) button to save.
Move on to the next screen by using the right hand arrow (). If you have chosen room sensor mode, go to Step 5.
The maximum floor temperature setting should now be displayed on the screen. To change the setting, press the
Select (•) button. Set the temperature by using the arrows () and then press the Select (•) button to select.
Depending on your floor structure and floor covering, we recommend the following:
Floor Construction Tiles Timber
Timber base 32°C
Concrete or F/C base 45°C
Now move to the next screen by pressing the right hand arrow (). If you have chosen floor and room sensor mode,
go to Step 5.
We recommend using "°C" for floor and room sensing or room sensing only, or 1-6 for floor sensing only. To change
the current setting, press the Select (•) button and change using the arrows (), then press Select (•) to save.
Press the top circular button with a pencil to go back to the original screen. Replace the front cover.
Weekdays
Settings
Room
Sensor
Time Periods ("Morning",
"Day", "Evening" & "Night")
Snap-lock Devireg
Carpet
Note: This is the maximum
27°C 30°C
temperature, not your preferred
27°C 40°C
operating temperature.
Frost
Childproof
Protection
Actual
Temperature
is displayed
Floor
Sensor
Maximum/
Minimum
535 Original Devireg 535
™ ™
third
groove
. To change the selection press the
