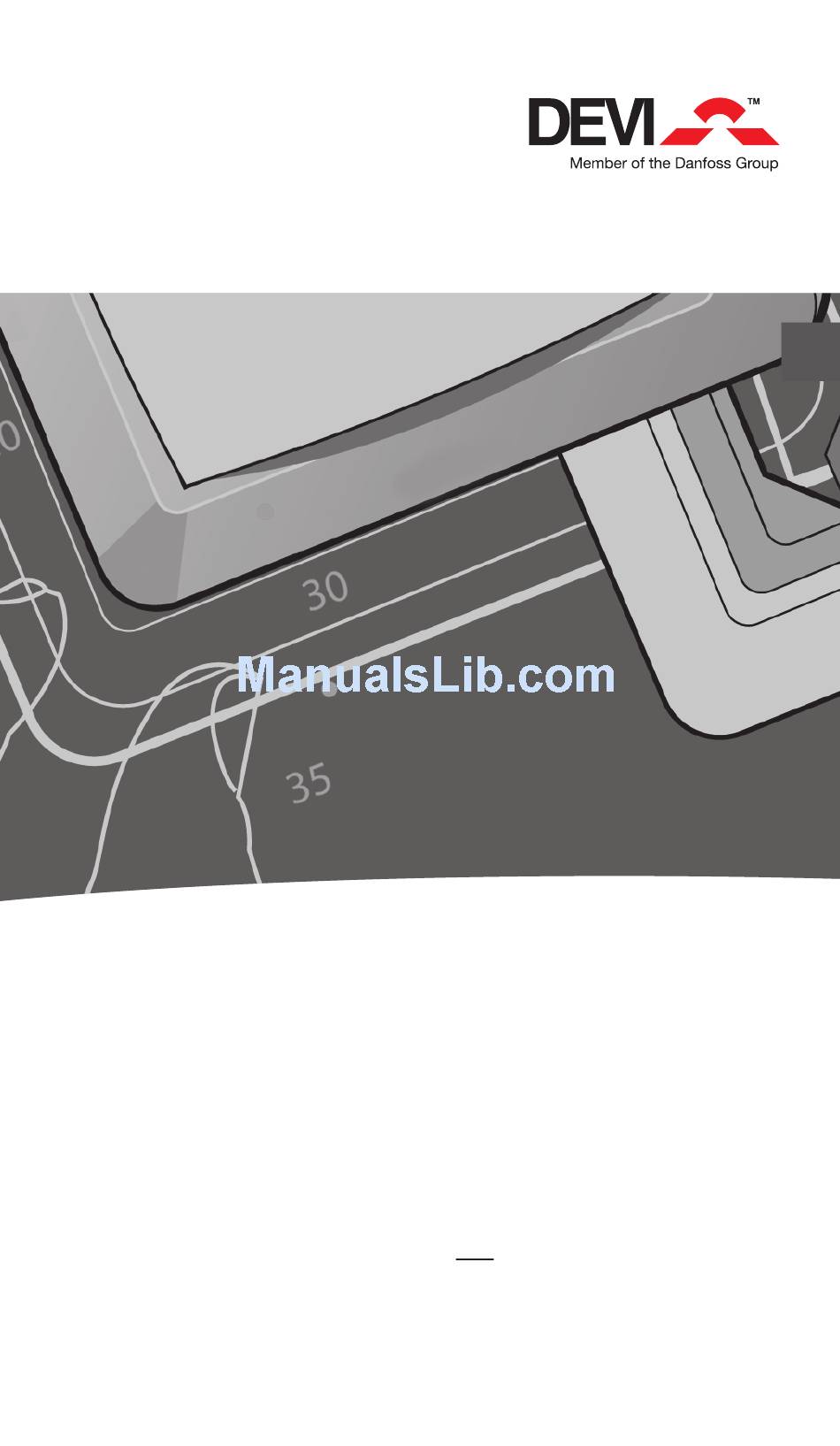

- Page 1 Devireg™ 535 Installation manual Warning! This manual is only to be used by a professional installer to install and set up the thermostat properly. It is not intended for the end-user!
- Page 2 Congratulations with… ... your DEVI floor heating system. Your property has been installed with a DEVI electric floor heating system. DEVI is Europe’s leading floor heating man- ufacturer, with over 45 years experience. We are confident that you will be satisfied with your new system.
-
Page 3: Install & Configure The Thermostat
Install & configure the thermostat Placement of Devireg™ 535 When Devireg™ 535 is used as a room sensor, installation height should typi- cally be between 80-150 cm. In wet rooms it should be installed on an even surface, according to local building regulations. -
Page 4: Installation And Connection
Installation and connection Installation of Devireg™ 535 1. To remove the front cover, gently press the release tabs under the bottom of the thermostat with a screwdriver. Then remove the front. Removing the front cover and pushing the installation button, is not intended to be done by anyone else but a qualified installer! - Page 5 Be aware that without a floor sensor, the temperature control can be less accurate, and overheating of the floor is of higher risk. DEVI recommends that a floor sensor is always installed. When the thermostat is used to control a floor heating...
- Page 6 Configuration - sensor Selection of sensor type Power on the thermostat. With the front off, with a small screw- driver, pencil, or needle press the installation button. Select the sensors to be used for the heating system: Devireg 535 is able to use two sensors: - a built-in room sensor - an external sensor to be placed...
- Page 7 Configuration - Max. floor temp. Maximum floor temperature. When selecting either floor sensor or floor and room sensors, next screen is maximum floor temperature. Default setting is 35°C. To change this setting, press • and ▲▼ use the arrow buttons to select your choice.
- Page 8 Configuration - Scale Scale If you select Devireg 535 to only use a floor sensor, mode , you have to select the display type. The choice is either numerical scale 1-6 or Celcius scale 5° to 45°. Default is Celcius scale. When select- ing Celcius, the display will show the actual temperature at the floor sensor.
-
Page 9: Troubleshooting
Trouble shooting Clock symbol flashing: Time settings were lost due to power cut. The thermostat resumes to manual mode. E4 flashing in display: Error code 4 – The thermostat has overheated and has switched off Let the thermostat cool for period. Then switch the thermostat off and on. -
Page 10: Technical Specifications
Technical specifications Operation voltage 180-250 VAC, 50/60 Hz Standby power Max. 0.30 W consumption Relay: • Resistive load 230V ~ 15A / 3450W • Inductive load cos φ= 0.3 Max. 4A Sensing unit NTC 15 kOhm at 25°C Sensing values: •... -
Page 11: Disposal Instruction
Disposal Instruction... - Page 12 Article No.: 08095880 Version - 02 DEVI A/S Ulvehavevej 61 DK-7100 Vejle Tel: +45 74 88 85 00 Fax: +45 74 88 85 01 www.devi.com...
