16.2.1 LED indicators

LED
Green LED
B channel
reporting
Green LED
D channel
reporting
Red LED

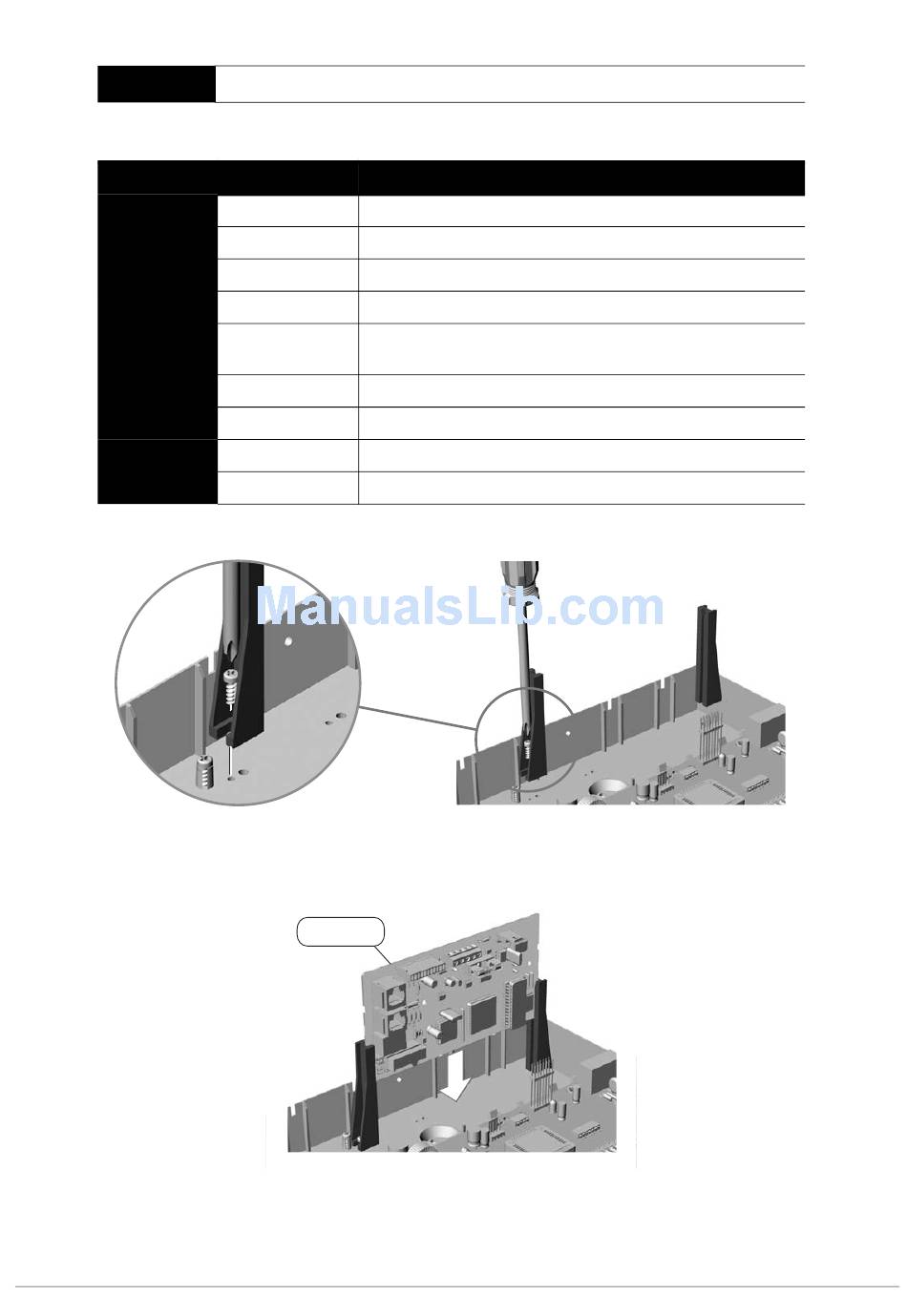

16.2.2 Mounting the CS7501 ISDN dialler

1. Mount the support pillars as shown.
2. Slot the board into the support pillars.
B.16.2
Red LED Panel communication status.
Status
Off No activity.
On The CS7501 ISDN connection is in use.
Flashing The CS7501 is between calls or trying different destinations.
Off The CS7501 has no connection with the central station.
On The CS7501 is making a connection to the central station or busy with
reporting events to central station.
Flashing The CS750 had a connection to the central station.
Blinking The CS7501 is waiting between reports.
Off The CS7501 is not communicating with the control panel.
Blinking The CS7501 is communicating with the control panel.
CS7501
Description
