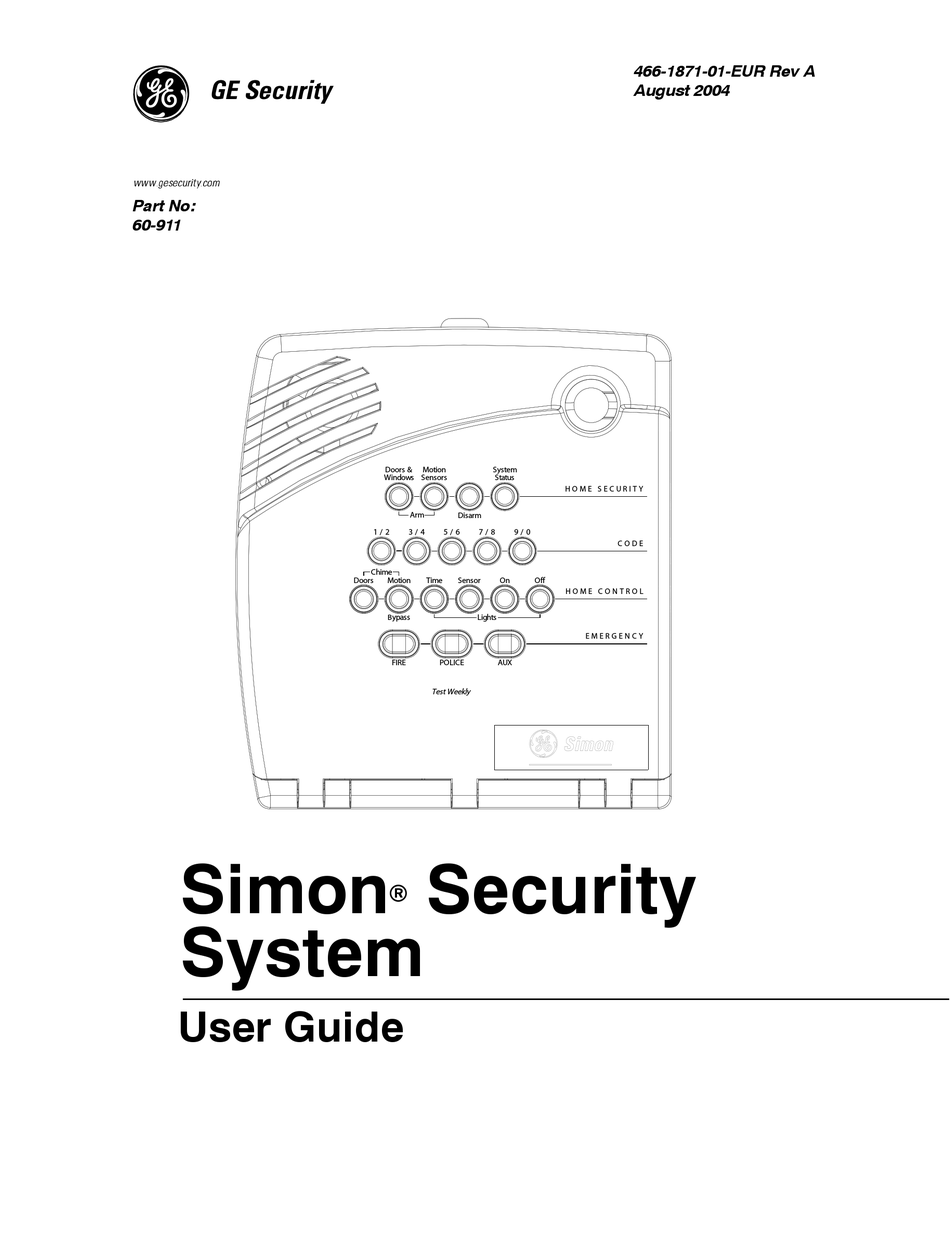

*( 6HFXULW\
JHVHFXULW\FRP
Part No:
60-911

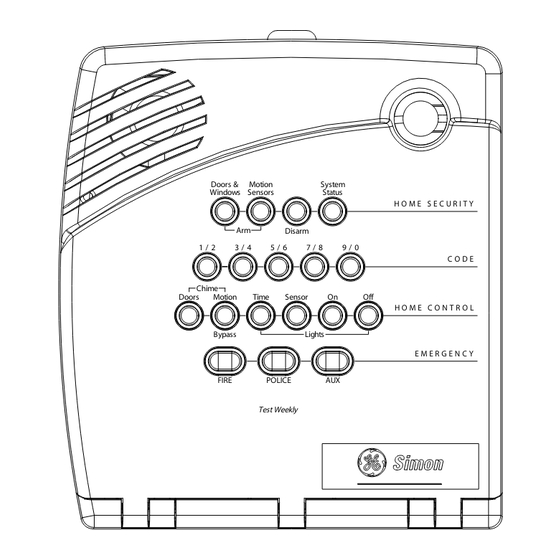

Simon
System
User Guide
Doors &
Motion
System
Windows
Sensors
Status
Arm
Disarm
1 / 2
3 / 4
5 / 6
7 / 8
9 / 0
Chime
Doors
Motion
Time
Sensor
On
Bypass
Lights
FIRE
POLICE
AUX
Test Weekly
Security
®
466-1871-01-EUR Rev A
August 2004
H O M E S E C U R I T Y
C O D E
Off
H O M E C O N T R O L
E M E R G E N C Y
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GE Security Simon
Summary of Contents for GE Security Simon
-
Page 1: User Guide
C O D E Chime Doors Motion Time Sensor H O M E C O N T R O L Bypass Lights E M E R G E N C Y FIRE POLICE Test Weekly Simon Security ® System User Guide... -
Page 2: Declaration Of Conformity
A sample of the product TUV 0123 / GE Security Inc. GE Security Inc. TUV 0123 has been tested by: CEQP 60-911 Simon 3 Euro Rev. D Test report reference EN50130-4(1995) +A1(1998) IEC60950, 3rd Ed 1999-4 EN300220-3 v1.3.1 Applied standards... - Page 3 Model listing The Euro Simon 3 security alarm panel will be marketed under the following product codes: Model Description BOM revision level 60-911-011-4-IE Simon 3 Ireland w/2 Way Voice X-10 Part # 60-911-011-4-IE Rev. A 60-911-010-4-IE Simon 3 Ireland w/2 Way Voice Part # 60-911-010-4-IE Rev.
-
Page 4: Table Of Contents
Contents Introduction to Your Security System Security System Components ........................1 How You Communicate to Your System Control Panel .............................. 2 Remote Handheld Touchpad........................2 Keychain Touchpad ............................ 2 Telephone..............................2 Computer ..............................2 How to Use Your Control Panel HOME SECURITY ............................ - Page 5 How to Use an Off-Site Phone Using Touchpads and Keypads Touchpads and Keypads ........................... 10 System Status............................10 ARM Doors & Windows ........................10 ARM Motion Sensors ........................... 10 Disarm..............................10 Subdisarm ............................. 11 Lights ..............................11 Emergency ............................11 Keychain Touchpad ..........................
- Page 6 Testing Communication..........................21 Setting the Clock............................21 Alarm System Limitations Service ..............................22 Planning for Emergencies Emergency Planning ..........................22 Your Floor Plan............................23 Quick Reference Table Back Page...
-
Page 7: Introduction To Your Security System
Door/Window Sensors detect the opening of a door or window. Smoke Sensors detect smoke and a significant rise in temperature. They have a built in siren that sounds when smoke or a significant rise in temperature is detected. Simon Security System... -
Page 8: How You Communicate To Your System
Your Control Panel • HOME SECURITY Note It may be necessary to enter • CODE an access code to arm your system. Check with your • HOME CONTROL installer to see if this feature is enabled. • EMERGENCY Simon Security System... -
Page 9: Home Security
If your system includes 24-hour protection sensors on items such as gun or jewelry cases, you must subdisarm the panel before accessing these areas to avoid causing an alarm. Environmental sensors, such as smoke, stay armed at all times. Simon Security System... - Page 10 Disarm mode. If You Never Leave After Arming Your panel can be programmed to recognize that you never left the premises. If you press the Arm Doors & Windows button and the Arm Motion Sensors button but Simon Security System...
-
Page 11: Code
System must be disarmed. Press Chime Doors button. Panel will announce, Chime on. Chime Doors button will be lit. ¾ Turn Chime Doors off: Press Chime Doors button Panel will announce, Chime off. Chime Doors button no longer lit Simon Security System... -
Page 12: Chime Special Motion
Remote Handheld Touchpad. Lights with odd unit numbers (1, 3, 5, 7) can only be con- trolled from a Remote Handheld Touchpad. ¾ Turn on individual lights that are controlled by Lamp Modules: Press Lights On button once. Simon Security System... -
Page 13: All Lights On
Status beeps are used to indicate key presses, status, and problems with the system. Note You may receive a different They can be enabled or disabled (see “Options”). The following table describes status number of status beeps if beep activity. buttons are pressed quickly. Simon Security System... -
Page 14: Alarm Sirens And Lamp Modules
2 second. Alarm Sirens and Lamp Modules Alarm Type Interior Siren Sound Exterior Siren Sound Lights Fire Temporal 3 Temporal 3 Turn on Intrusion On steady On steady Flash Emergency Fast on-off ________ Turn on Simon Security System... -
Page 15: Panel Indicator Lights
How to Use an You may use an off-site phone to arm/disarm your panel, turn lights on and off, check Off-Site Phone system status, or conduct an audio session (ask your installer if you have this feature). Simon Security System... -
Page 16: Using Touchpads And Keypads
Windows. panel, you may be required to enter your access code to Disarm arm the system. Press Disarm button once and enter your access code using the NUMERIC buttons to turn security protection off. Simon Security System... -
Page 17: Subdisarm
Note Panic alarms need to be silenced from the panel, a remote handheld touchpad or another key- chain touchpad. They cannot be silenced from the same keychain that activated the alarm. Simon Security System... -
Page 18: Using A Computer
The Master access code is The START MENU includes the following buttons: 1-2-3-4 when the panel is shipped. You should change • your Master Access Code after your system is installed • Delete (see “Access Code”). • Cancel Simon Security System... -
Page 19: Access Codes
The panel to arm the system. will call the central station with a panic alarm report, but there will be no indication of an alarm at the panel. Simon Security System... -
Page 20: Light Control
____. ¾ How to set time for light control: Open the cover of the panel. The panel voice prompts you to Use numbered keys to enter ID. Enter your mas- ter access code using the numbered keys. Simon Security System... -
Page 21: Programming Options
Press DONE. Panel announces, Option 1 is on. Delete turns off panel piezo beeps. Open panel cover. Panel announces, Use numbered keys to enter ID. Enter Access Code using the numbered keys. Panel announces, Please select from Start Menu. Simon Security System... -
Page 22: Option 02 - Panel Voice
Open panel cover. Panel announces, Use numbered keys to enter ID. Enter Access Code using the numbered keys. Panel announces, Please select from Start Menu. Press Delete from the Start menu. Panel announces, Select from main menu Simon Security System... -
Page 23: Option 37: Sensor Activated Light Lockout Stop Time
Press Option #. Panel announces, Option 1, press again for next option or done to select. Press 41. Panel announces, Option 41, press again for next option or done to delete Press DONE. Panel announces, Option 41 deleted. Simon Security System... -
Page 24: Option 42 - Speaker Level
Press Option #. Panel announces, Option 1, press again for next option or done to select. Press 55. Press DONE. Trouble Beeps Your security system is able to automatically test itself for: • Power failures • Low batteries • Non-working sensors • Communication troubles with the Central Monitoring Station Simon Security System... -
Page 25: Ac Power Failure
For example, a Door/Window Sensor magnet may have been removed from the sensor. Your system will indicate this condition to you by causing the SYSTEM STATUS button to light. When you press this button, the system Simon Security System... -
Page 26: Sensor Tampered
If any of the sensors did not test successfully and you want to terminate the test, press DONE or Cancel. The panel will announce Sensor test canceled or failure. If a sensor test fails, call your security dealer. Use the following table to trip devices: Simon Security System... -
Page 27: Testing Communication
Close the cover. Alarm System Not even the most advanced alarm system can guarantee protection against burglary, Limitations fire, or environmental problems. All alarm systems are subject to possible compromise or failure-to-warn for a variety of reasons. Simon Security System... -
Page 28: Service
Use a different escape route if closed doors feel hot to the touch. • Crawl and hold your breath as much as possible to help reduce smoke inhalation during your escape. • Meet at a designated outdoor location. Simon Security System... -
Page 29: Your Floor Plan
Your Floor Plan Use the following guidelines when drawing your floor plan (use the next page to draw your floor plan): • Show all building levels. • Show exits from each room (two exits per room are recommended). Simon Security System... - Page 30 • Show the location of all security system components. • Show the location of any fire extinguishers. Simon Security System...
- Page 31 Simon Security System...
-
Page 32: Quick Reference Table
Quick Reference Table Remote Handheld Keychain Remote How to … Control Panel Touchpad Touchpad Phone Disarm the Press * + Access Code Access Code Press once Disarm System Code + 1 (Level 1) Disarm Subdisarm the Press * + Master Enter Master Code while Enter Master Code while System...
