FastTrak TX4650, TX2650 User Manual

Managing Logical Drives

• Viewing All Logical Drives (below)
• Creating a Logical Drive (page 80)
• Creating a JBOD (page 84)
• Deleting a Logical Drive or JBOD
(page 88)
• Viewing Logical Drive Information
(page 88)
• Making Logical Drive Settings
(page 89)
• Migrating a Logical Drive (page 90)

Viewing All Logical Drives

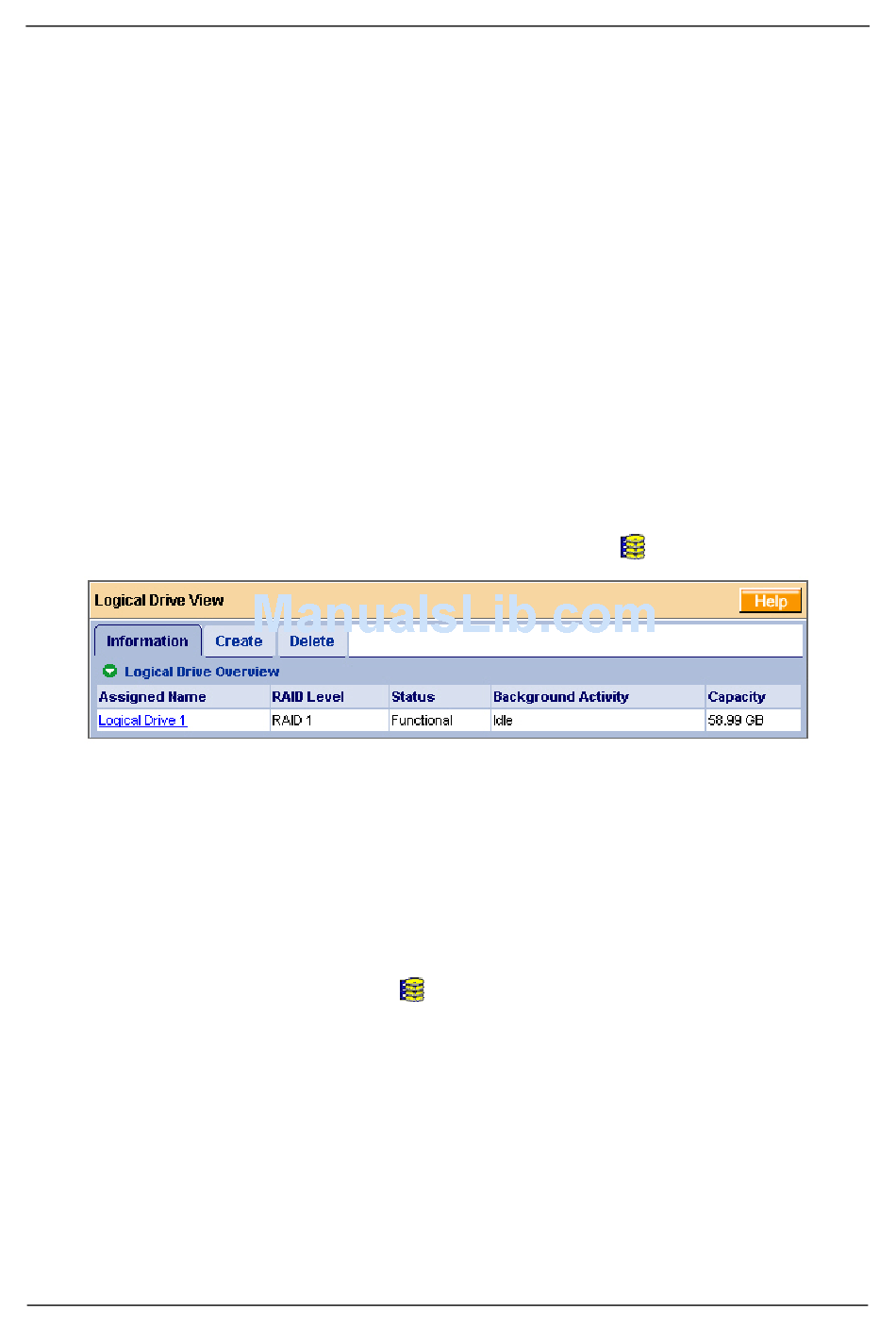

Logical Drive View provides a list of all logical drives currently on the Host PC. To
access Logical Drive View, click the Logical Drive View
From this screen, you can click the links to access information and functions of
individual logical drives and use the Create and Delete features.

Creating a Logical Drive

A logical drive is a collection of physical drives in a RAID.
To create a new logical drive:
1. Click the Logical Drive View
2. Click the Create tab.
The Select RAID Level screen appears.
• Rebuilding a Logical Drive
(page 93)
• Synchronizing a Logical Drive
(page 97)
• Viewing Logical Drive Initialization
(page 99)
• Activating a Logical Drive
(page 100)
• Responding to a Critical or Offline
Logical Drive (page 101)
icon.
80
icon in Tree View.
