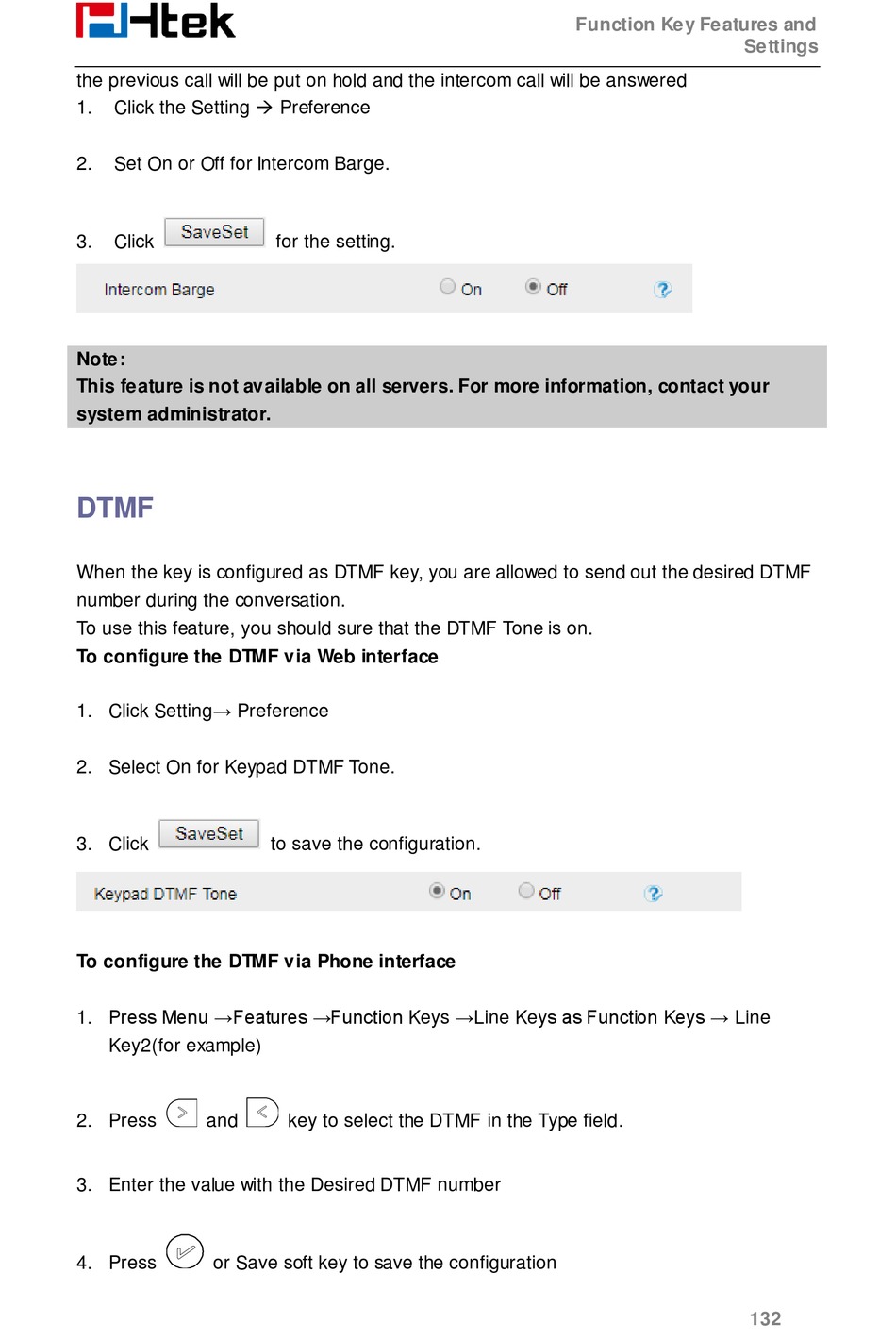

Dtmf - Htek UC926E User Manual

the previous call will be put on hold and the intercom call will be answered
Click the Setting  Preference
1.
2. Set On or Off for Intercom Barge.
3. Click
Note:
This feature is not available on all servers. For more information, contact your
system administrator.

DTMF

When the key is configured as DTMF key, you are allowed to send out the desired DTMF
number during the conversation.
To use this feature, you should sure that the DTMF Tone is on.
To configure the DTMF via Web interface
1. Click Setting→ Preference
2. Select On for Keypad DTMF Tone.
3. Click
To configure the DTMF via Phone interface
1. Press Menu →Features →Function Keys →Line Keys as Function Keys → Line
Key2(for example)
2. Press and
3. Enter the value with the Desired DTMF number
4. Press or Save soft key to save the configuration
for the setting.
to save the configuration.
key to select the DTMF in the Type field.
Function Key Features and
Settings
132
