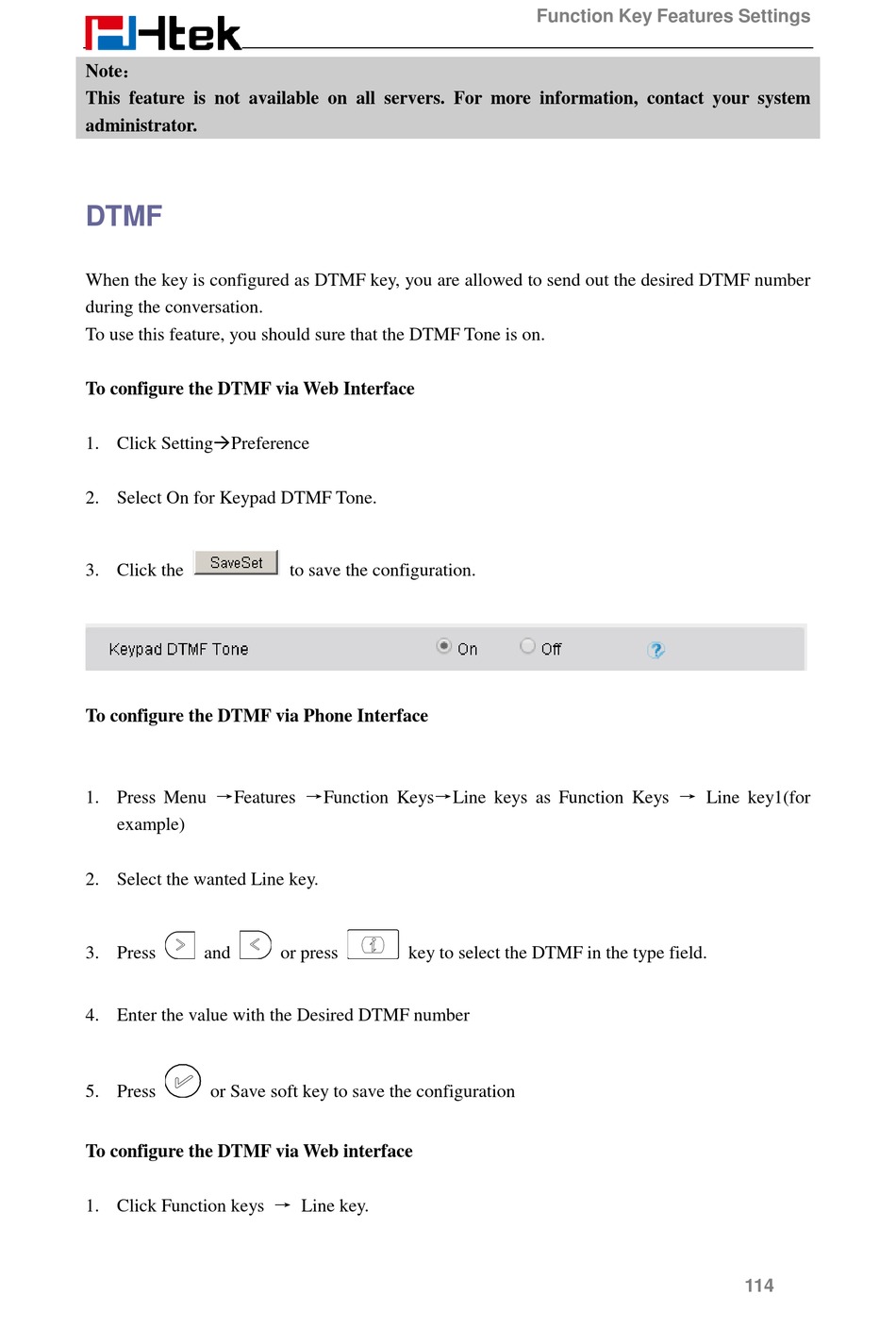

Dtmf - Htek uc842 User Manual

Function Key Features Settings
Note：
This feature is not available on all servers. For more information, contact your system
administrator.

DTMF

When the key is configured as DTMF key, you are allowed to send out the desired DTMF number
during the conversation.
To use this feature, you should sure that the DTMF Tone is on.
To configure the DTMF via Web Interface
1. Click SettingPreference
2. Select On for Keypad DTMF Tone.
3. Click the to save the configuration.
To configure the DTMF via Phone Interface
1. Press Menu →Features →Function Keys→Line keys as Function Keys → Line key1(for
example)
2. Select the wanted Line key.
3. Press and or press key to select the DTMF in the type field.
4. Enter the value with the Desired DTMF number
5. Press or Save soft key to save the configuration
To configure the DTMF via Web interface
1. Click Function keys → Line key.
114
