F P
roNT ANeL
Sigma provides you with 16 stereo line inputs and 16 stereo line outputs on Tascam standard (AES59) 25-pin D-sub
connectors. Using the web browser interface, the left input of each stereo channel can be selected as a mono source.
When an input is set to mono, the channel number on the front panel will glow green.
Please note that setting an input to mono does not give you 2 independent mono inputs!
Input Level Meters
Levels can be set for +18dBu, +22dBu or +24dBu via the web browser interface
Headphones - stereo headphone output on 1/4" jack.
Important - For health and safety reasons, do not reboot Sigma with while monitoring through headphones.
iJack Input - stereo external input on 1/8" jack (from iPod output or similar device).
Sigma also provides access to Mix Insert Send/Returns, a Line Level output for sending headphone feeds into a live room,
an external input and talkback input, all on standard DB-25 connections. Access to the Main Speaker Outputs, Alternative
Speaker Outputs and the Mix A Output is provided on XLR male connectors.

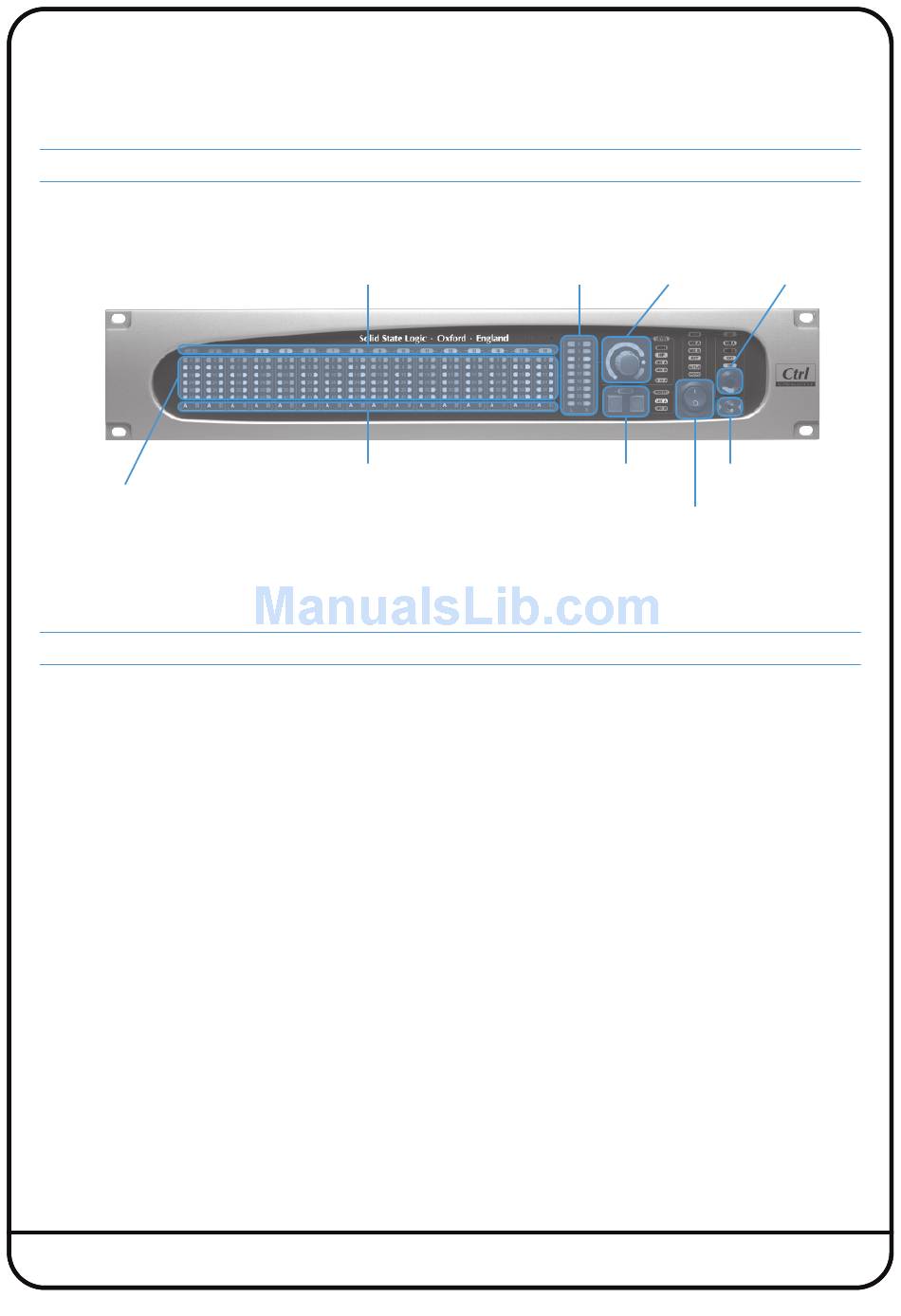

Channel Numbers
Mix Bus A/B Indicators
Page 8
Master Rotary
Meter Encoder
Customisable iJack
User Buttons Input
Power Switch
Headphones
