Altronix AL600ULX Installation Manual page 3

Stand-by Specifications (total current shown):
Output
12VDC / 40 AH Battery
24VDC / 12 AH Battery
24VDC / 40 AH Battery
Installation Instructions:
The unit should be installed in accordance with article 760 of The National Electrical Code as well as NFPA 72 and all
applicable Local Codes.
1. Mount the unit in desired location.
2. Set the unit to the desired DC output voltage by setting SW1 (Fig. 1A, below) to the appropriate position
(Power Supply Voltage Output Selections Chart, pg. 2).

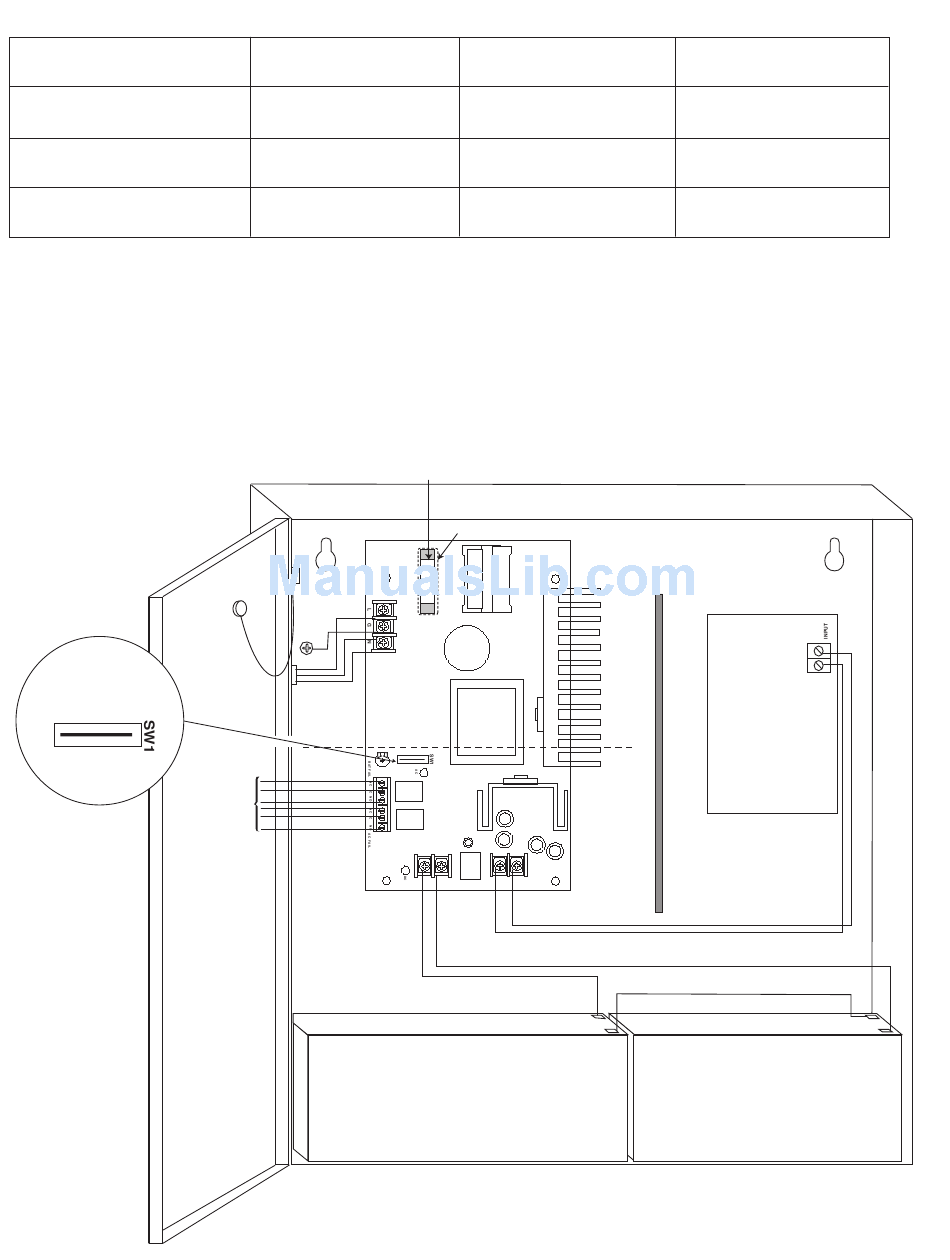

Fig. 1
Door
Fig. 1A
24V - OPEN
12V - CLOSED
Battery & AC
(power limited)
4 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 6 amp
Alarm = 6 amp
Stand-by = 6 amp
Alarm = 6 amp
CAUTION: De-energize unit prior to servicing. For continued protection
against risk of electric shock and fire hazard replace fuse with the same type
and rating 3.5A, 250V. Replace fuse cover before energizing.
Do not expose to rain or moisture.
Green
Wire
Lead
Strap
(from
Enclosure
to Door)
115VAC
power mains
non-power
limited
Class 1
Supervision
Circuit
Battery 1
Keep power limited wiring separate from non-power limited.
Use minimum .25" spacing.
24 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 1.0 amp
Alarm = 6 amp
Stand-by = 200mA
Alarm = 6.0 amp
Stand-by = 1.0 amp
Alarm = 6 amp
Fuse Cover
24V - OPEN
12V - CLOSED
+ BAT ---
+ DC ---
non-power limited
- 3 -
60 hr. of Stand-by &
5 Minutes of Alarm
Stand-by = 300mA
Alarm = 6 amp
Stand-by = 300mA
Alarm = 6 amp
Power
Distribution
Module(s)
Divider
Battery connection (non power limited)
Battery 2
