Chapter 1 Introduction - AXIOMTEK CAPA318 User Manual

CAPA318 3.5" Board
Chapter 1
Introduction
® ® ®

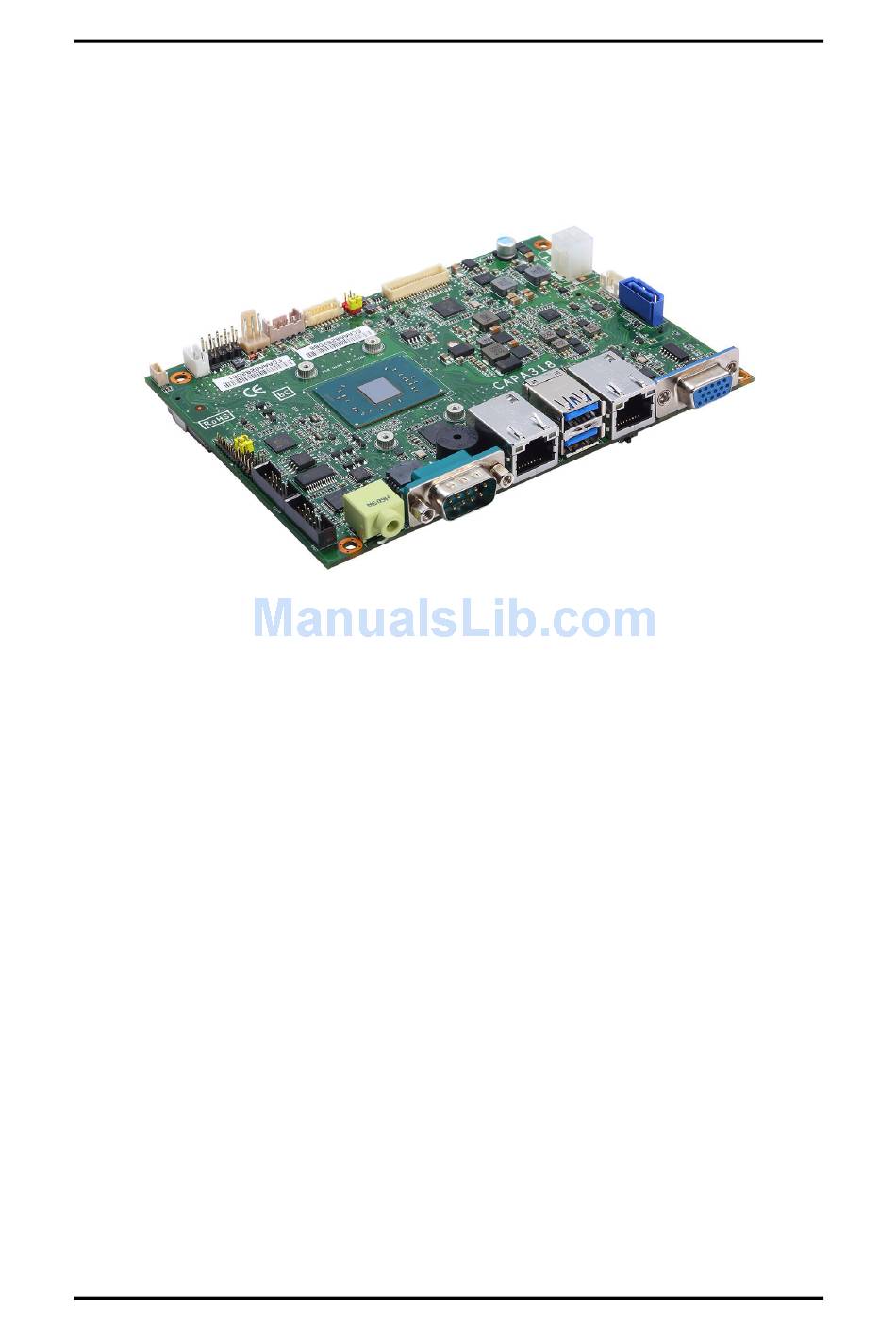

The CAPA318, a 3.5" board, supports Intel Pentium N4200 and Celeron N3350. It delivers
outstanding system performance through high-bandwidth interfaces, multiple I/O functions for
interactive applications and various embedded computing solutions.
The CAPA318 comes with one 204-pin unbuffered SO-DIMM socket for single channel DDR3L
1600MHz memory, maximum memory capacity up to 8GB. There are two Gigabit/Fast
Ethernet ports, one SATA port with transfer rate up to 6Gb/s, two USB 3.0 and two USB 2.0
high speed compliant, and built-in HD audio codec that can achieve the best stability and
reliability for industrial applications. Additionally, it provides you with unique embedded
features, such as two serial ports (RS-232) and 3.5" form factor that applies an extensive array
of PC peripherals.
Introduction 1
