3.0 CONFIGURATION

The Model 2010 is configured using four internal switches. Figure 1

shows the switch locations with respect to other PC board components.

The four switches shown in Figure 2 allow selection of character length

and extended signaling rate. These switches are located internally on the

Model 2010's PC board. To access them use a small flathead screwdriver

to pop open the Model 2010's case as shown in Figure 3.

Figure 2. Close-up of the Model 2010's configuration switches

2010AS3297 Manual

B&B Electronics -- PO Box 1040 -- Ottawa, IL 61350

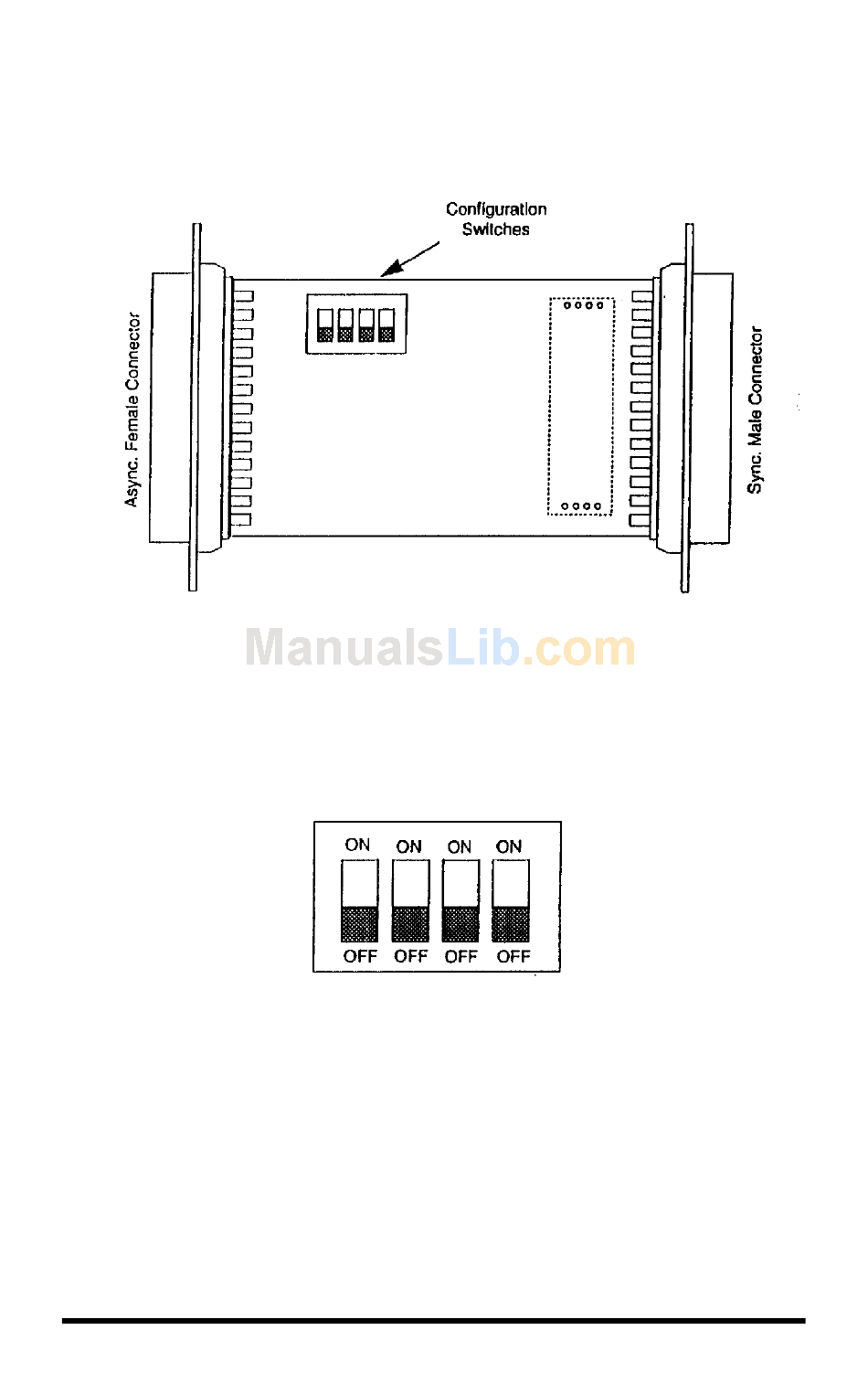

Figure 1. Switch locations on the 2010 PC board

PH (815) 433-5100 -- FAX (815) 434-7094
