- Page 2 International Headquarters B&B Electronics Mfg. Co. Inc. 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 -- General Fax (815) 433-5105 www.bb-elec.com Website: support@bb-elec.com European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 -- Fax +353 91-792445 www.bb-europe.com Website: techsupport@bb-elec.com...
-
Page 3: Table Of Contents
Table of Contents FCC RADIO FREQUENCY INTERFERENCE STATEMENT ..4 WARRANTY ....................4 ABOUT THE GIGA-MINIMC ..............4 INSTALLING THE GIGA-MINIMC ............... 6 HARDWARE MOUNTING ..............7 POWERING THE GIGA-MINIMC............8 LED OPERATION ....................9 SPECIFICATIONS ................. 11 FIBER OPTIC CLEANING GUIDELINES ........12 ELECTROSTATIC DISCHARGE PRECAUTIONS ...... -
Page 4: Fcc Radio Frequency Interference Statement
FCC RADIO FREQUENCY INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 5 Products of other manufacturers sold by B&B Electronics are not subject to any warranty or indemnity offered by B&B Electronics, but may be subject to the warranties of the other manufacturers. Notwithstanding the foregoing, under no circumstances shall B&B Electronics have any warranty obligations or any other liability for: (i) any defects resulting from wear and tear, accident, improper use by the buyer or use by any third party except in accordance with the written instructions or advice of the B&B...
-
Page 6: About The Giga-Minimc

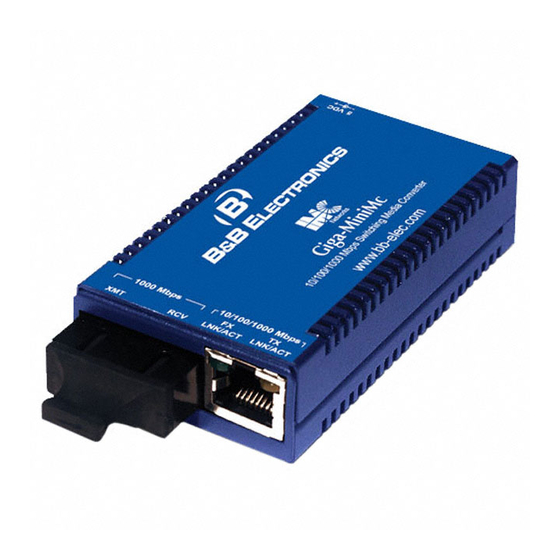

ABOUT THE GIGA-MINIMC Part Numbers: 856-10730-RX, 856-10730-TX The above part numbers must be installed in pairs. As a pair, the units provide secure data to be passed securely, in one direction only. The Giga-MiniMc provides a single conversion between 10/100/1000 Base-T twisted pair and 1000 Base-SX/FX fiber. This device Auto Negotiates speed and duplex on the copper port and the fiber 100Mbps, FDX. -
Page 7: Hardware Mounting
HARDWARE MOUNTING The Giga-MiniMc can be mounted on a DIN rail or using wall mount brackets (shown below). DIN rail clips (part number 806-39105) and wall mount brackets (part number 895-39229) are available for purchase through a B&B Electronics Distributor. DIN Rail Clips The Giga-MiniMc can be mounted with two DIN Rail... -
Page 8: Powering The Giga-Minimc
NOTE The DIN clips are designed for use on a DIN-35 rail. POWERING THE GIGA-MINIMC The Giga-MiniMc includes multiple powering options: A country-specific, high-reliability AC power adapter • (included) IE-PowerTray/18 for Rack Mounting • Dual-USB power cable (required for gigabit) •... -
Page 9: Led Operation
LED OPERATION Each Giga-MiniMc includes two LEDs, located on the RJ-45 connector. LED functions are as follows for the TX Unit: FX LNK/ACT Glows green when a link is established on the FX (fiber) port; blinks green when activity is detected on the fiber port. - Page 10 Each Giga-MiniMc includes two LEDs, located on the RJ-45 connector. LED functions are as follows for the RX Unit: FX LNK/ACT Glows green when a link is established on the FX (fiber) port; blinks green when activity is detected on the fiber port.
-
Page 11: Specifications
SPECIFICATIONS Ethernet Connections • 10/100/1000 BaseT • Auto Negotiation • AutoCross • Flow Control • 1536 MTU • Full Line-Rate Forwarding AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2A max. Operating Temperature +32°F to +122°F (0°C to +50°C) Storage Temperature -31°C to +167°... -
Page 12: Fiber Optic Cleaning Guidelines
FIBER OPTIC CLEANING GUIDELINES Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. 1. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;... -
Page 13: Electrostatic Discharge Precautions
ELECTROSTATIC DISCHARGE PRECAUTIONS Electrostatic discharge (ESD) can cause damage to any product, add-in modules or standalone units, containing electronic components. Always observe following precautions when installing or handling these kinds of products 1. Do not remove unit from its protective packaging until ready to install. -
Page 14: Safety Certifications
SAFETY CERTIFICATIONS UL/CUL: Listed Safety Information Technology Equipment, including Electrical Business Equipment. The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC). Certified to Safety of Information Technology Equipment, Including Electrical Business Equipment. - Page 15 © 2013 B&B Electronics. All rights reserved. The information in this document is subject to change without notice. B&B Electronics assumes no responsibility for any errors that may appear in this document. Giga-MiniMc is a trademark of B&B Electronics. Other brands or product names may be trademarks and are the property of their respective companies.
