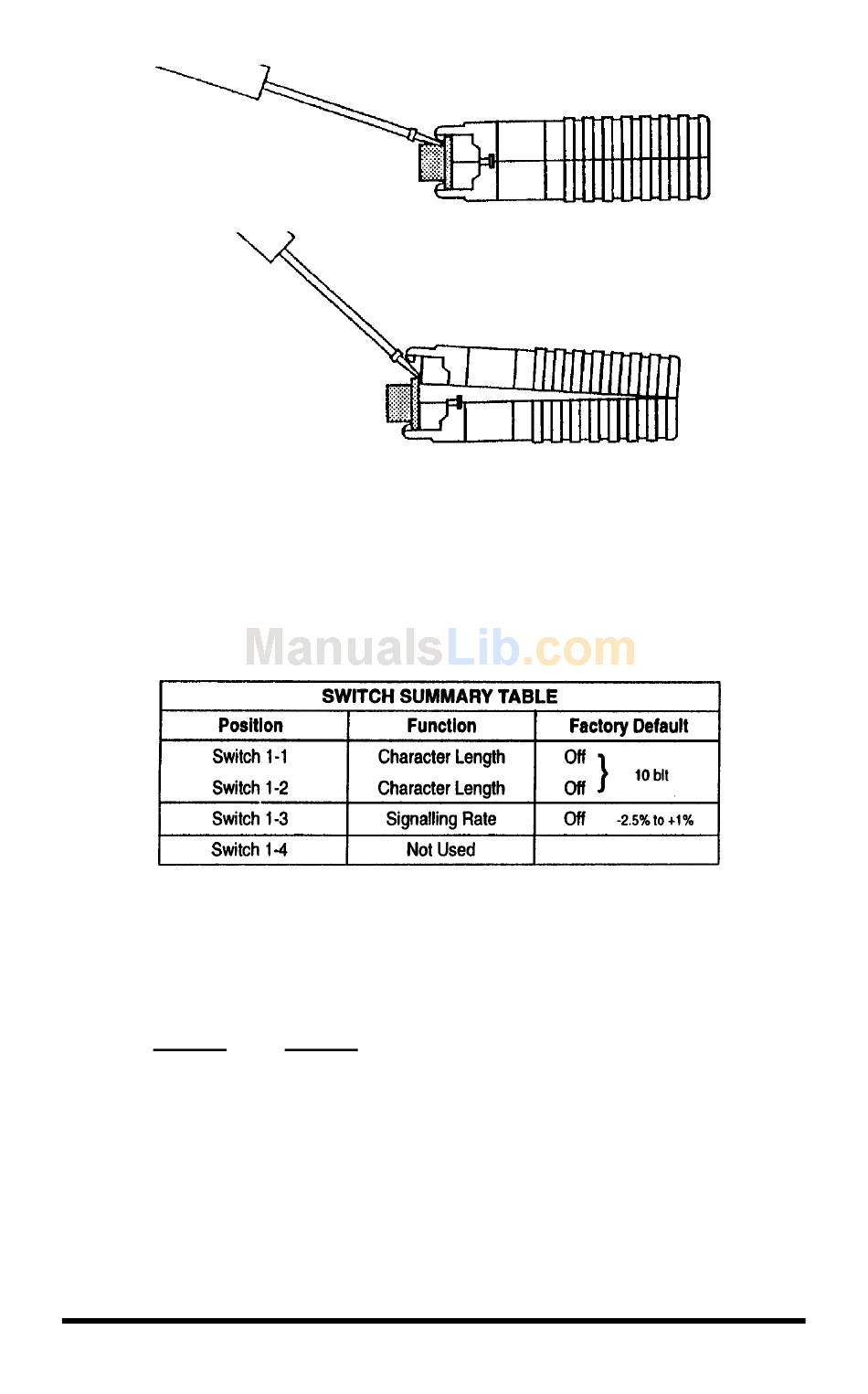

Figure 3. Opening the Model 2010's case with a small screwdriver

3.2 SWITCH SETTINGS

All possible settings for the Model 2010's configuration switches are
presented in the following summary table and descriptions. If you have
additional questions regarding configuration, contact B&B Technical
Support at (815) 433-5100.

Switches SW1-1 and SW1-2: Character Length

Switches SW1-1 and SW1-2 are set in combination to determine the
character length for asynchronous data.
SW 1-1
Off
On
Off
On
4
B&B Electronics -- PO Box 1040 -- Ottawa, IL 61350
SW 1-2
On
On
Off
Off
PH (815) 433-5100 -- FAX (815) 434-7094
8 bit
9 bit
10 bit
11 bit
