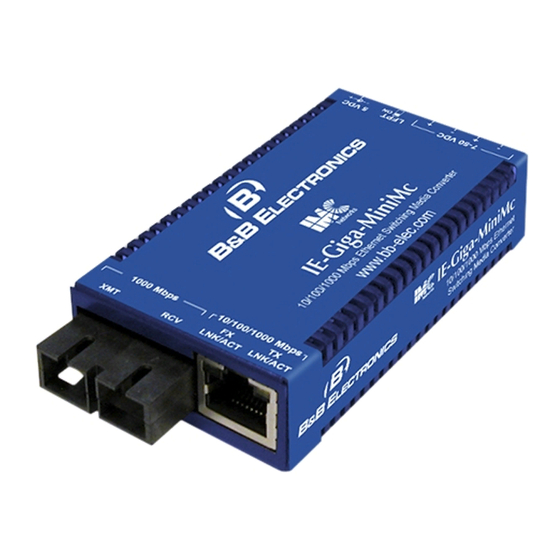

Summary of Contents for B&B Electronics IE-Giga-MiniMc

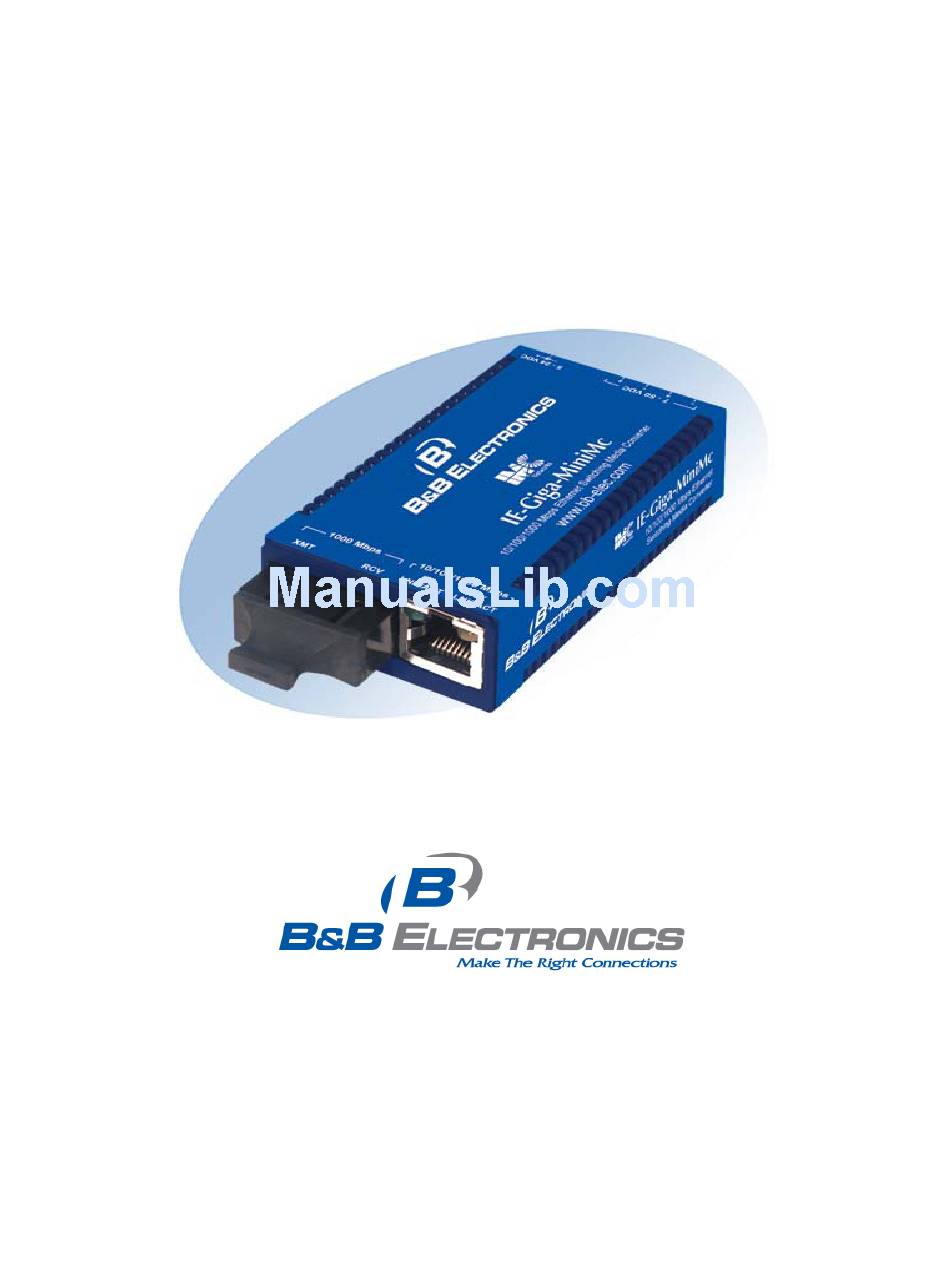

  • Page 1 IE-Giga-MiniMc Operation Manual...
  • Page 2: Fcc Radio Frequency Interference Statement

    FCC Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Table Of Contents

    Table of Contents FCC Radio Frequency Interference Statement .............. ii Warranty ................. Error! Bookmark not defined. About the IE-Giga-MiniMc ....................1 Installing the IE-Giga-MiniMc ..................... 2 Hardware Mounting Options ....................3 LED Operation .......................... 4 DC Power Supply Precautions .................... 7 Specifications ..........................
  • Page 4: About The Ie-Giga-Minimc

    Auto Negotiates the connected device’s speed and duplex mode: 10/100/1000 Mbps Half Duplex; or 10 /100/1000 Mbps Full Duplex (including Flow Control). The IE-Giga-MiniMc supports jumbo packets up to 1632 bytes. The IE represents the unit’s use as an Industrial Ethernet device, which allows for extended temperature operation of -25°C to +85°C for DC power and -10°C to...
  • Page 5: Installing The Ie-Giga-Minimc

    Installing the IE-Giga-MiniMc The IE-Giga-MiniMc installs virtually anywhere as a standalone device in locations with extremely limited space. Installation options include: Velcro strips  DIN rail mounting with DIN Rail clips  A wall mount bracket  An IE-PowerTray/18 for high density applications ...
  • Page 6: Hardware Mounting Options

    Hardware Mounting Options The IE-Giga-MiniMc can be mounted on a DIN rail or using wall mount brackets (shown below). DIN rail clips (part number 806-39105) and wall mount brackets (part number 895-39229) are available for purchase through an B&B Electronics Distributor.
  • Page 7: Led Operation

    Dual USB cable • IE-Power/5V DIN rail mount power supply LED Operation Each IE-Giga-MiniMc converter includes two LEDs, located on the RJ-45 connector. LED functions are as follows: LED functions are as follows (above illustration is representative): FX LNK/ACT Glows green when a link is established on the fiber port; blinks green when activity is detected on the fiber port.
  • Page 8 DC Terminal Block Wiring Instructions The IE-Giga-MiniMc can be powered via the DC terminal block. From a power source, connect to any one positive and any one negative terminal on IE-Giga- MiniMc. Connected to Chassis NOTE When using stranded wire, the leads must be tinned and equivalent to a 16 AWG solid conductor.
  • Page 9 Cascading Power When installing multiple IE-Giga-MiniMc units on a DIN rail, connect to one DC input source and then cascade from one DC block to the next, until reaching the maximum electrical current available.
  • Page 10: Dc Power Supply Precautions

    DC Power Supply Precautions The following precautions should be observed when installing chassis with DC power supplies. Check nameplate ratings to assure there is no overloading of supply circuits that could have an effect on overcurrent protection and supply wiring. When installing 7 to 50 rated equipment, it must be installed only per the following conditions: Connect the equipment to a 7 to 50VDC supply source that is electrically...
  • Page 11: Specifications

    Specifications Ethernet Connections • 10/100/1000 BaseT • Auto Negotiation • AutoCross • Flow Control • 1632 MTU • Full Line-Rate Forwarding DC Input Voltage 7 to 50 VDC on DC terminal block 5 VDC on DC jack AC Wall Adapter 100 to 240 ±10% VAC input, 5 VDC output, 2 A max Power Tray 18-Slot AC for Miniature Converters 125W, 20A@5V...
  • Page 12: B&B Electronics Technical Support

    B&B Electronics Technical Support Tel: (800) 346-3119 (in the U.S. and Canada) Monday-Friday, 7:00am-7”00pm CST +353 91 792444 (Europe) Monday through Friday 8:00am - 5:00pm GMT Fax: (815) 433-5109 E-Mail: support@bb-elec.com Web: www.bb-elec.com...
  • Page 13: Fiber Optic Cleaning Guidelines

    Fiber Optic Cleaning Guidelines Fiber Optic transmitters and receivers are extremely susceptible to contamination by particles of dirt or dust, which can obstruct the optic path and cause performance degradation. Good system performance requires clean optics and connector ferrules. Use fiber patch cords (or connectors, if you terminate your own fiber) only from a reputable supplier;...
  • Page 14: Electrostatic Discharge Precautions

    Electrostatic Discharge Precautions Electrostatic discharge (ESD) can cause damage to any product, add-in modules or stand alone units, containing electronic components. Always observe the following precautions when installing or handling these kinds of products Do not remove unit from its protective packaging until ready to install. Wear an ESD wrist grounding strap before handling any module or component.
  • Page 15: Safety Certifications

    Safety Certifications UL/CUL: Listed to Safety of Information Technology Equipment, including Electrical Business Equipment. CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC) and the Council Directive on Electrical Equipment Designed for use within Certain Voltage Limits (2006/95/EC).
  • Page 17 The information in this document is subject to change without notice. B&B Electronics assumes no responsibility for any errors that may appear in this document. IE-Giga-MiniMc is a trademark of B&B Electronics. Other brands or product names may be trademarks and are the property of their respective companies.
