Configuration Instructions

McBasic-Gigabit has user-configurable features located on the PCB board. Please
refer to the board diagram and the table for available features.
To access the McBasic-Gigabit board for configuration, loosen the two screws on
the front of the unit. Slide the board out of the enclosure (faceplate is attached).
Configure, then slide the board back into the enclosure and tighten the screws.

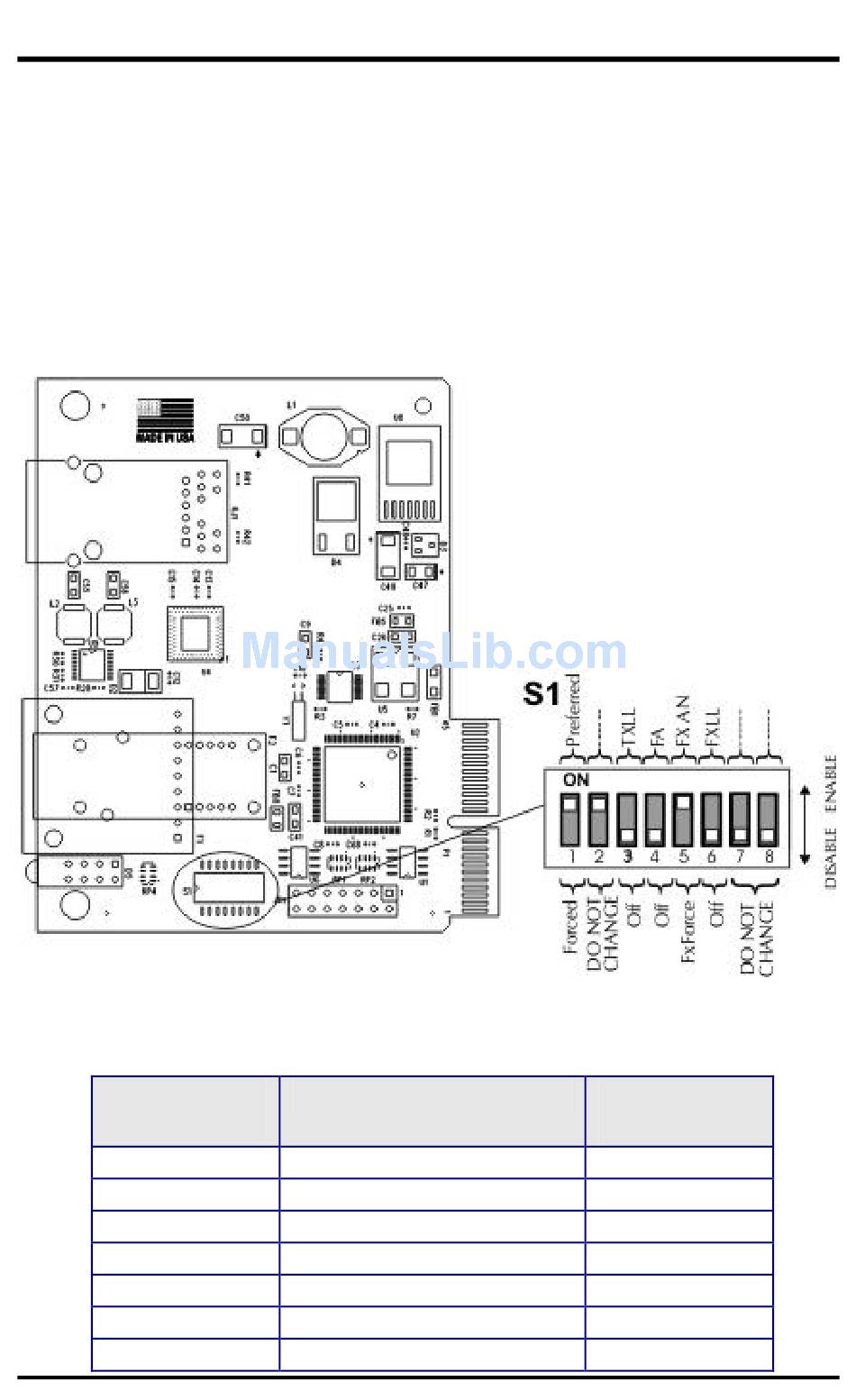

Following is the McBasic-Gigabit PCB board used to configure the unit.
DIP Switch on
S1
1
2
3
4
5
6
7
McBasic-Gigabit w/LFPT
Feature
Forced/Preferred
Factory use - Do not change
TX LinkLoss
FiberAlert
FX Auto Negotiation
FX LinkLoss
Factory use - Do not change
2
Default Setting
ON
ON
OFF
OFF
ON
OFF
OFF
