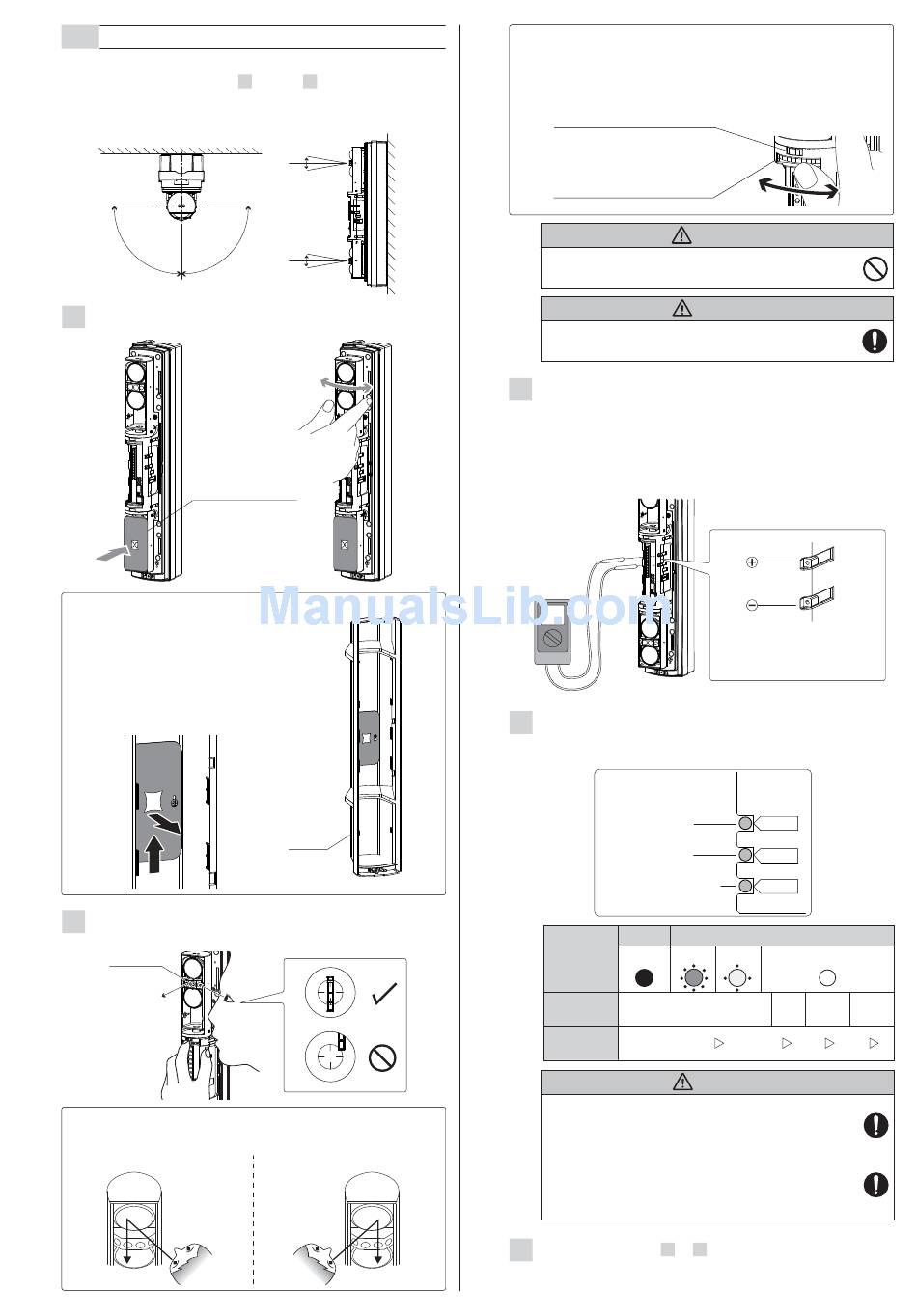

4-2 OPTICAL ALIGNMENT

Optical alignment is an important procedure to increase reliability.
Be sure to take alignment step 1 through 5 described below to
attain the maximum level of the output through the monitor jack.
Horizontal alignment angle
90°
90°
1
Perform rough alignment of the horizontal angle.
Beam blocking plate
Note>>
‡ Mount a beam blocking plate to the lower
unit and then start optical alignment from
the upper unit.
‡ Beam blocking plate is attached on the
back of the cover.
‡ Return the beam blocking plate to the
cover after use.
2
Look into the viewfinder and perform fine alignment of the
horizontal and vertical angles using the alignment dial.
Viewfinder
Note>>
< How to look into the viewfinder >
From right side
Left eye
Vertical alignment angle
10°
10°
10°
10°
Cover
From left side
Right eye
-9-
Note>>
Check the diagram below and perform fine alignment
for both horizontal alignment and vertical alignment.
Turn the small dial for
horizontal alignment.
Turn the large dial for
vertical alignment.
- Clockwise: Upward
- Counterclockwise: Downward
‡ Do not look at strong light sources such as sunlight
through the viewfinder.
‡ 'R QRW WRXFK WKH OHQV GXULQJ RSWLFDO DGMXVWPHQW
3
After the alignment using the viewfinder, make adjustment
with the voltmeter for more accurate optical alignment.
Set the voltmeter range to 5 to 10 VDC.
After checking the receiving level of optical axis by using
the Level indicator LED, make sure to make fine
alignment for both transmitter and receiver with voltmeter
to achieve a monitor output level of "Excellent".
4
Adjust the horizontal and vertical angles while checking
the light receiving status by Alarm indicator LED on the
pairing receiver.
Receiver
Alarm indicator LED
Level indicator LED
Low battery indicator LED
Light
interrupted
ON (Red) Fast blink Slow blink
Level indicator
LED
Adjustment
Realign
level
Monitor jack
0 V
output
‡ The Alarm indicator LED is a supporting tool for
easy alignment. Be sure to perform fine alignment
to ensure the maximum output level through the
monitor jack.
‡ The Level indicator LED should only be used for
rough alignment, for fine alignment always use the
monitor jack output level.
5
Make the settings of 1 to 4 to the lower as well.
Warning
Caution
Insert the voltmeter's positive pin into
the positive terminal of the monitor
jack, and the negative pin into the
negative terminal.
Alarm
Level-ind
Low Battery
Light received
OFF
Fair Good Excellent
1.0 V 2.4 V 2.8 V
Caution
