Location of Input Power (Mains) and Output
Power (Motor Terminal Blocks)

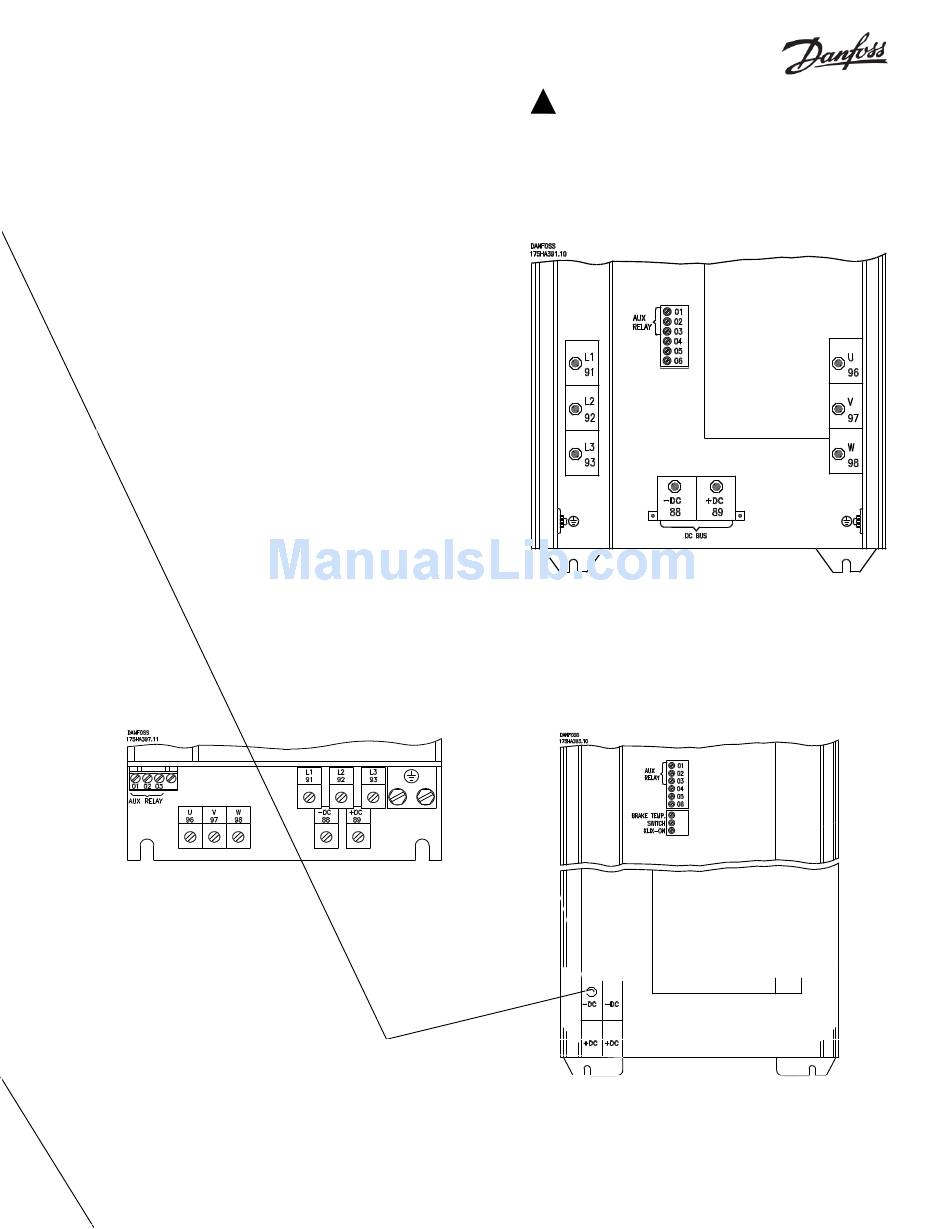

Connect input power to the terminals identified as L1, L2 and L3.
Connect the motor leads to the terminals identified as U, V and W.
NEMA 1 and NEMA 12
VLT 6002-6005, 200-240 V
VLT 6002-6011, 380-460 V
NEMA 1
VLT 6006-6032, 200-240 V
VLT 6016-6062, 380-575 V
WARNING
!
Connecting input power to motor terminals will
result in drive failure when the power is ap-
plied.
NEMA 1
VLT 6042-6062, 200-240 V
VLT 6075-6125, 380-460 V
NEMA 1
VLT 6150-6275, 380-460 V
