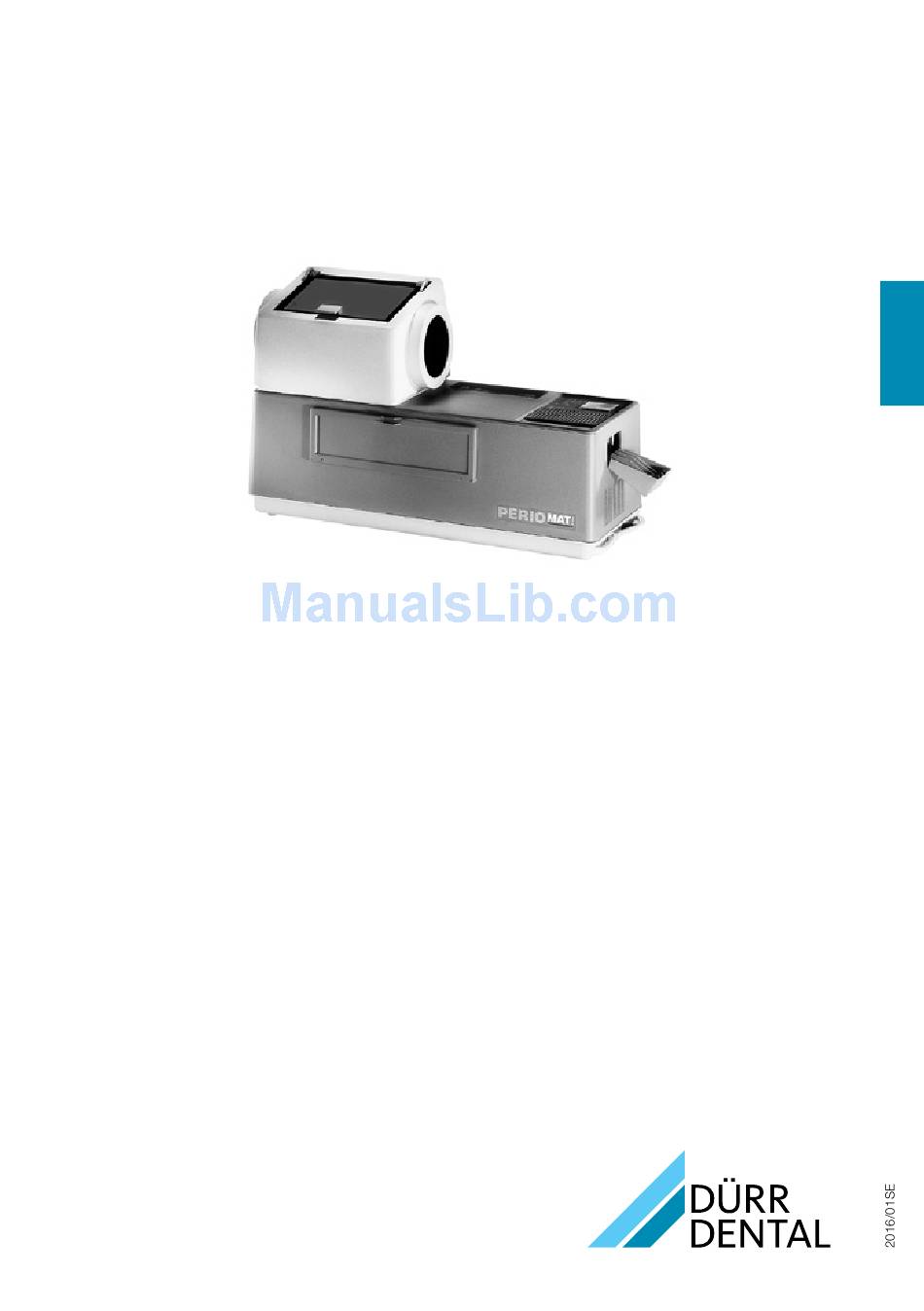

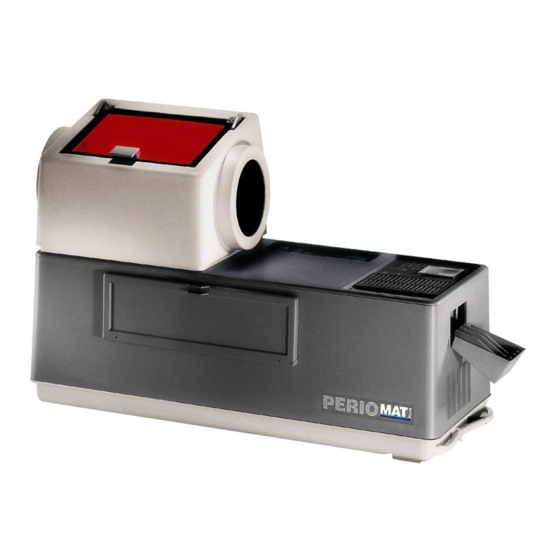

- Page 1 Periomat Plus Installation and Operating Instructions...
-
Page 3: Table Of Contents
Content Important Information 1. Warnings and Symbols 4 10. Chemical preparation 18 2. General 5 11. -
Page 4: Important Information Use
Further symbols used Important These symbols are used in this documentation Information and /or on the appliance: Notes, eg special instructions concer- 1. Warnings and Symbols ning efficient usage of the appliance Warnings Unplug at the mains and remove all The warning notes in this document are desi- power gned to point out possible hazards which could... -
Page 5: General
2. General Operating Instructions is the reference versi- on If there is any doubt about the translation please consult your dealer 2.1 Note on Conformity • Any reprinting of the technical documentation, This product has been tested for conformity in whole or in part, is subject to prior approval according to the appropriate directives as laid of Dürr Dental being given in writing down by the European Union and has been... -
Page 6: 25 Notes On Medical Products
• Other systems should not be plugged into the same multi-socket unit 2.6 Correct Usage The Periomat Plus is designed for the develop- ment of intraoral X-ray films of sizes 2 x 3 cm to 5,7 x 7,6 cm 2.7 Incorrect usage... -
Page 7: Safety
3. Safety 3.1 General Safety Notes This appliance has been so designed and de- veloped by the manufacturer that under correct usage that there can be no danger to operator or patient In spite of this, we feel it is our duty to mention the following safety measures in order to prevent any possible danger • When using this appliance all local and rele-... - Page 8 2016/01SE...
-
Page 9: Delivery Contents
4. Delivery Contents Model 1307-01 (230 V, 50 Hz) Periomat Plus with daylight top, and heating 1 Daylight top 1304A710-00 2 Waste container 1303-000-06... -
Page 10: Technical Data
5. Technical Data 5.1 Model Overview Model 1307-01 (230 V, 50 Hz) Periomat Plus with daylight top, and heating Model 1307-01 Voltage Frequency Rated current Rated power Duty cycle Film processing time Developing temperature °C Warm-up time min / °C Heating Appliance fuse... -
Page 11: 53 Ambient Conditions
6. Switch panel functions The yellow and green switches are fitted with an integrated control lamp Yellow main power supply (23) Pos O: Periomat Plus OFF Pos l: Periomat Plus ON Green transport schwitch (24) Pos O: Transport motor OFF... -
Page 12: Mounting
Mounting 7. Set-up 7.1 Room for Set-up Max. Ambient temperature 25 °C. Never use the Periomat in a position with direct sunlight! The film material may become expo- sed despite the use of the daylight top. • Set up the Periomat in a dry, well ventilated room • The mains supply socket should be so laid out that the main appliance plug is clearly visible,... - Page 13 • Replace the parts in position • Place the protective cover (3) in position • Place the cover (4) onto the loading slot (slot 8 must face to the front) • Hang the film collector (12) in position 2016/01SE...
- Page 14 • Check that the local supply voltage of the mains supply socket is identical to the voltage information on the model identification plate of the appliance CAREFUL Danger of a short circuit due to con- densated water coming into contact with the electronic circuit board! • Only connect and operate the appli- ance after allowing it to warm up to room temperature after transport...
- Page 15 2016/01SE...
-
Page 16: Circuit Diagram
9. Circuit diagram 2016/01SE... -
Page 17: 91 Descriptions
9.1 Descriptions 1 Yellow main power supply 2 Green transport switch 3 Transformer unit 4 Electronics 5 Temperature sensing device 6 Bath heating 7 Plug 8 Ventilation fan for film drying 9 Distributor 1 10 Distributor 2 11 Transport motor 12 Fuse controller 13 Fuse power supply 14 Heating for film drying... -
Page 18: Chemical Preparation
10. Chemical preparation In order to produce perfect developer results we recommend you use the specially designed Dürr Periomat Intra/C Chemicals ATTENTION Danger of liquid overflowing! Defect in the heater plate. • If liquid overflows, remove the heater plate and wipe dry, see 122 Film quality insufficient due to mixing of chemicals. -
Page 19: Instructions For Use
11. Instructions for use Films of format 3 x 4 cm are placed into the loading slot without adapter, see 111 Films of larger formats are first placed in the ap- propriate adapter before insertion in the loading slot, see 112 11.1 Film insertion without adapter • Switch on the appliance at the green transport switch (24)... - Page 20 • After film development the 3 x 4 cm films fall into the film collector (12) between the guiding ridges (28) • Once the films are in the film collector, switch off at the green transport switch (24) • At the end of surgery hours or before a longer break, eg midday break, switch the appli- ance off at the yellow main power switch (23) 11.1.1 Speedy developing for...
-
Page 21: 112 Film Insertion With Adapter
11.2 Film insertion with adapter When working with the adapter the guiding ridges in the film collector must first be remo- ved When frequent switching between films with and without adapter is encountered, we recommend that a second film collector (12) is ordered (Order no 1303-001-00) • Extract the guiding ridge (28) from the film collector (12)... - Page 22 • Place the adapter (11), arrow downwards, into the loading slot ATTENTION Danger of inadvertant mixing of chemicals! If the adapter is falsely inserted (not with arrow pointing down) then film developer and fixer will be carried over. Poor quality of developed film. • Check carefully that the arrow on the adapter points downwards 11.2.2 Film at 2 x 3,5 cm, 2 x 3 cm and...
- Page 23 11.2.3 Film at 4 x 5 cm and 2,7 x 5,4 cm • Place the films (max 2 films) into the adapter (11d) • Place the adapter vertically into the loading slot The film edges must no be allowed to touch the shaft sides • Place the light protective cover (15) in position • Slide the start lever (27) to the right...
-
Page 24: 113 Miscellaneous
After the films have been developed they fall with the adapter into the film collector (12) • After film development switch off the film transport at the green transport switch (24) • At the end of surgery hours or before a longer break, eg midday break, switch the appli- ance off at the yellow main power switch (23) 11.3 Miscellaneous... -
Page 25: Maintenance
12. Maintenance Only trained specialists or personnel trained by Dürr Dental may service the unit 12.1 Twice weekly change water and check level of chemicals. • Switch off the appliance at the yellow switch (23) Unplug at the mains and remove all power • Set the appliance up on a stable and hori- zontal surface in the vicinity of a mains supply... - Page 26 • Empty the watertank and fill the watertank (6) again • Check the level of the chemicals in the devel- oper (8) and fixer (7) tanks • Top up any liquid loss by adding water at max. 25 °C to the markings (see inside of flap) ATTENTION Danger of liquid overflowing!
-
Page 27: 122 Every 3 Weeks Change Chemicals
12.2 Every 3 weeks change chemicals After ca 3 weeks or after developing approximately 350 films of 3 x 4 cm format the developer and fixer are used up and need to be replaced • Before cleaning place the sponge and brushes (from Perioclean-Set) ready • Switch off the appliance at the yellow switch (23) Unplug at the mains and remove all... - Page 28 • Lift the film transport (5) slightly and allow the chemicals to drain off • Place the film transport in a suitable area, eg washbasin or sink, spray with Spray Cleaner WR 2000 and allow to work for ca 10 min • Swivel the temperature controller (25) upwards • Empty both chemicals and water • Observe any local or national rules and regula-...
-
Page 29: 123 Every 6 Months Clean The Film
• Dry the area surrounding the loading slot with a lint-free cloth • Remove any possible remaining deposits or dirt from the film transport using a brush (e g from the Perioclean-Set) • Rinse the film transport thoroughly under warm running water • Place the film transport onto a draining board • Make up chemicals, see 10 Chemical preparation 12.3 Every 6 months clean the film... - Page 30 2016/01SE...
