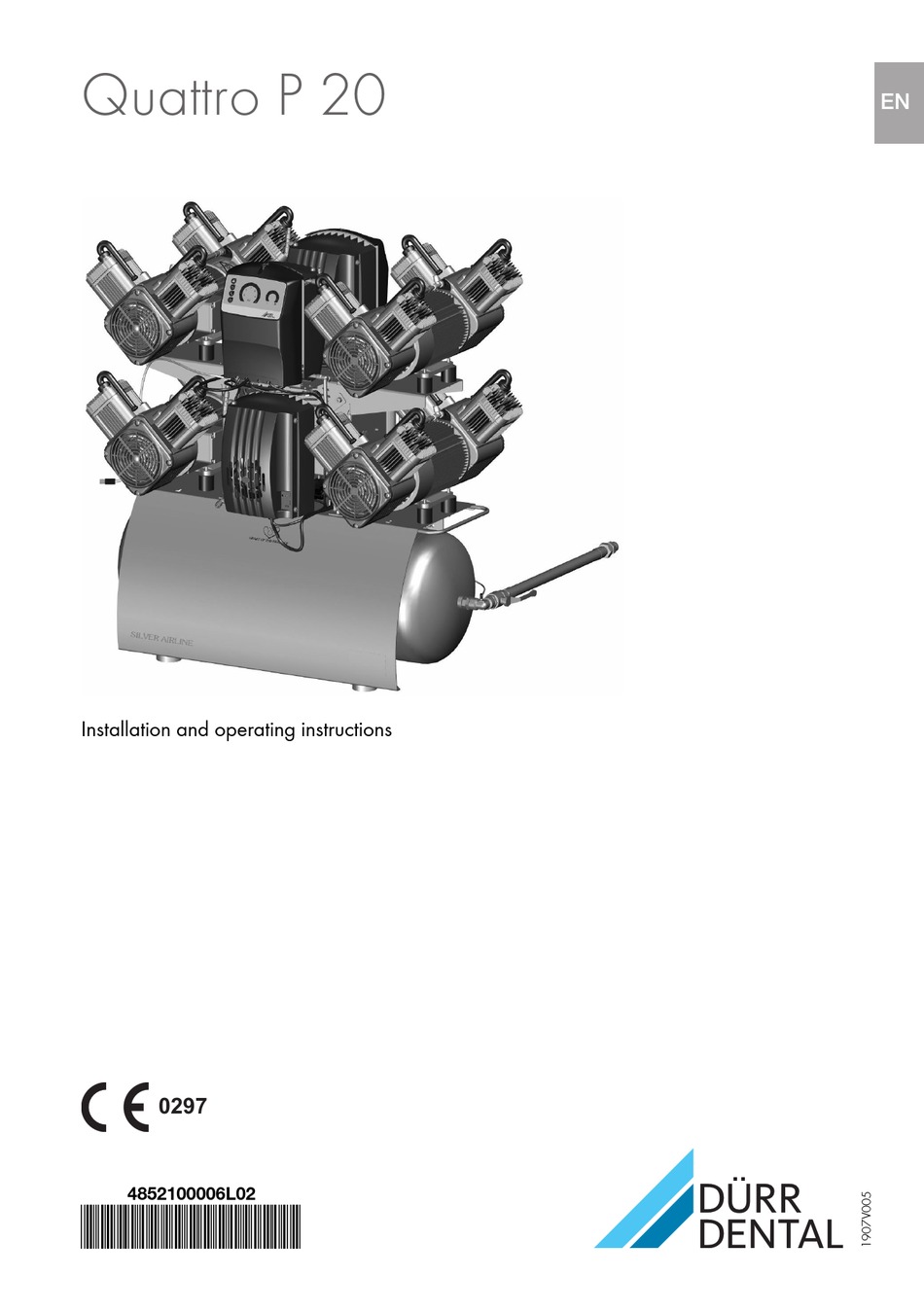

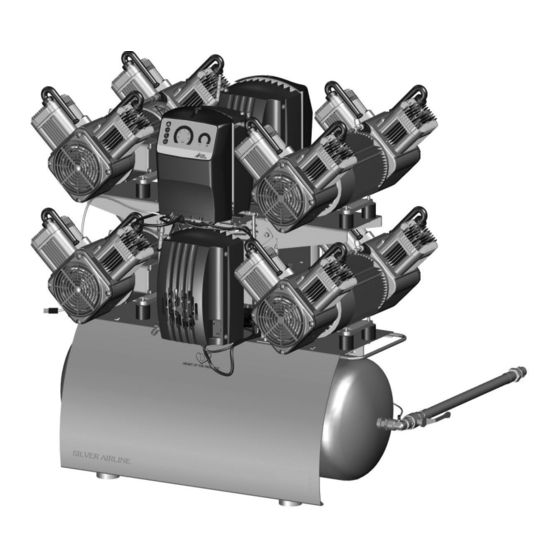

  • Page 1 Quattro P 20 Installation and operating instructions 0297 4852100006L02 *4852100006L02*...
  • Page 3 Technical data ....Quattro P 20 ....

  • Page 4: Table Of Contents

    Contents 14.1 Taking the unit out of use ..14.2 Storage of the unit ... Troubleshooting 15 Tips for operators ....16 Tips for service technicians .
  • Page 5 These installation and operating instructions apply to: Observe the operating instructions. Quattro P 20 Order number: 4852-54; 4852100022; Disconnect all power from the unit. 4852100023 Warnings and symbols Refer to the accompanying electronic documents.
  • Page 6 Important information The Installation and Operating Instructions must Safety not be copied or reprinted, neither in full nor in Dürr Dental has designed and constructed this part, without written authorisation from Dürr unit so that when used properly and for the Dental.
  • Page 7 Important information Electrical safety WARNING Observe and comply with all the relevant elec- ❯ Risk of explosion due to ignition of trical safety regulations when working on the combustible materials unit. Do not operate the unit in any rooms in ❯...
  • Page 8 Important information 2.10 Disposal The unit must be disposed of properly. Within the European Union, the unit must be disposed of in accordance with EU Directive 2012/19/EU (WEEE). If you have any questions about the correct ❯ disposal of parts, please contact your dental trade supplier.
  • Page 9 Quattro P 20 ..... 4852-54 Quattro P 20 ....4852100022 Quattro P 20 .
  • Page 10 Product description Technical data Quattro P 20 Electrical data 4852-54 Rated voltage Mains frequency Nominal current at 8 bar (0.8 MPa) 17.6 19.2 Speed 1440 1700 Type of protection IP 21 Mains fuses * Max. permissible mains impedance in accordance with EN 61000‑3‑11 ** 0.13...
  • Page 11 Product description Filter mesh size Sintered filter for membrane drying unit µm Network connection LAN technology Ethernet Standard IEEE 802.3u Data rate Mbit/s Connector RJ45 Type of connection Auto MDI-X ³ CAT5 Cable type Ambient conditions during storage and transport Temperature °C -10 to +55...
  • Page 12 Product description Quattro P 20 Electrical data 4852100022 4852100023 Rated voltage Mains frequency Nominal current at 8 bar (0.8 MPa) 17.6 19.2 Speed 1440 1700 Type of protection IP 21 Mains fuses * Max. permissible mains impedance in accordance with EN 61000‑3‑11 ** 0.13...
  • Page 13 Product description Network connection LAN technology Ethernet Standard IEEE 802.3u Data rate Mbit/s Connector RJ45 Type of connection Auto MDI-X Cable type ³ CAT5 Ambient conditions during storage and transport Temperature °C -10 to +55 Relative humidity max. 95 Ambient conditions during operation Temperature °C +10 to +40...
  • Page 14 Product description Distance between rubber feet Compressor unit type plate Membrane drying unit The type plate of the membrane drying unit is located on the side of the membrane drying unit. a (cm) b (cm) 90 l 32.5 Type plate Complete system The type plate of the overall system is located on the console.
  • Page 15 Product description Operation The compressor unit draws in atmospheric air and compresses it without oil. It then transports the oil-free compressed air to the membrane dry- ing unit. The cooler and the membrane dryer extract moisture from the compressed air. The oil-free, hygienic and dry air is stored in the pres- sure tank ready for use in connected devices.
  • Page 16 Product description The compressor unit with the shortest operating time since the compressor was connected to voltage is started. This distributes the operating time more or less uniformly between the com- pressor units. If the compressor is disconnected from the voltage and is then reconnected to the power supply, compressor unit 1 will start first again.
  • Page 17 Assembly Assembly ≥ 40 °C Requirements The unit must not be set up or operated within the vicinity of the patients (within a radius of 1.5 m). The unit can be installed either at the same level as the surgery room or on a floor below (e.g. cel- lar).
  • Page 18 Assembly Transport Installation Installing the compressor unit WARNING Place the pressure tank with the rubber feet in ❯ Risk of explosion of the pressure tank the rubber pads. and pressure hoses The pressure tank and the pressure ❯ hoses must be vented before they are stored or transported.
  • Page 19 Assembly Place the compressor units on the vibration Connect the compressor units via the pressure ❯ ❯ reducers. hose to the upper connections of the coolers. Attach the compressor units with the lock ❯ washers and nuts. Place the console on the supports. ❯...
  • Page 20 Assembly Attach the crossbeam to the console with a Screw the vibration reducers into the console. ❯ ❯ lock washer and screw. Place the compressor units on the vibration ❯ reducers. Attach the compressor units with the lock ❯ Hook the fuse box in the keyholes and attach it ❯...
  • Page 21 Assembly Connect the hoses of the pressure tank to the Connect the hoses of the lower connections of ❯ ❯ outlet of the membrane dryers (OUT). the coolers to the inlet of the membrane dryers (IN). Warning – risk of dangerous electric volt- ages The mains plug must not be plugged in.
  • Page 22 Assembly Plug the temperature sensor connector and ❯ NOTICE the power supply of the compressor units into the sockets provided. The operating panel cable is very short and can damage the PCB when the cover is removed. Carefully remove the cover of the con- ❯...
  • Page 23 Assembly Insert the Dürr Connect transition piece into the Secure the connection hose of the membrane ❯ ❯ drain pipe. dryer to the free drop section with the hose clip. If the Dürr Connect connector interface (DN 40) included in the scope of delivery does not fit the existing drain pipe, addi- tional connector interfaces can be pur- chased from Dürr Dental.
  • Page 24 Assembly Connect the pressure hose with the supplied ❯ DANGER connecting sleeve to the pipe system. Risk of electric shock due to defective mains cable Mains cables must not be allowed to ❯ come into contact with any hot sur- faces on the unit.
  • Page 25 Assembly Connect the pressure hoses from the con- – Display parameters ❯ trollers. – Select operating modes Additionally pull the hoses through the hose – Indicate messages and error situations from the accessories and secure the latter to – Change unit settings the pressure tank with a cable tie.
  • Page 26 Assembly Commissioning Establishing the electrical connections DANGER In many countries technical medical prod- ucts and electrical devices are subject to Risk of electric shock due to defective regular checks at set intervals. The owner mains cable must be instructed accordingly. Mains cables must not be allowed to ❯...
  • Page 27 Assembly Read off the pressure when the unit starts up. Turn the screw clockwise as far as it will go. ❯ ❯ If the readings deviate from the values preset at The valve must now be closed again. the factory, adjust the values to the factory set- Press and hold the service key until the ❯...
  • Page 28 Assembly 10 Adjustment options Network configuration Various options are available for network configu- 10.1 Adjustment of the switch- ration: ü Automatic configuration via DHCP (recom- on/cut off pressure mended). ü Automatic configuration via Auto-IP for direct WARNING connection of unit and computer. Risk of explosion of the pressure ves- ü...
  • Page 29 Assembly Use the service key to confirm. ❯ If no touch pulse is received for 30 sec- onds, the system will automatically switch to standby operation. The settings are not saved. 4852100006L02 1907V005...
  • Page 30 Assembly 11 Controller 11.1 Mains connection L1.1 L2.1 L3.1 PE.1 L1.2 L2.2 L3.2 PE.2 X1 Mains connection 3/N/PE AC 400 V F1 Fuse C16A F2 Fuse C16A 4852100006L02 1907V005...
  • Page 31 Assembly 11.2 Main controller L1.2 L2.2 PE.2 L3.2 -X101 -X13 N -X14 -X10 -X15 Fuse T10AH Fuse T10AH Fuse T10AH Fuse T10AH Fuse T10AH Fuse T10AH 4852100006L02 1907V005...
  • Page 32 Assembly Fuse T1.6AH Status indicator LEDs for temperature sensor, compressor unit 1 Status indicator LEDs for temperature sensor, compressor unit 1 Status indicator LEDs for temperature sensor, compressor unit 1 Status indicator LEDs for temperature sensor, compressor unit 2 Status indicator LEDs for temperature sensor, compressor unit 2 Status indicator LEDs for temperature sensor, compressor unit 2 Compressor unit 1 Compressor unit 2...
  • Page 33 Assembly 11.3 Auxiliary controller L1.1 L2.1 PE.1 -X101 L3.1 -X13 N -X14 -X10 -X15 Fuse T10AH Fuse T10AH Fuse T10AH Fuse T10AH Fuse T10AH Fuse T10AH Fuse T1.6AH Status indicator LEDs for temperature sensor, compressor unit 3 4852100006L02 1907V005...
  • Page 34 Assembly Status indicator LEDs for temperature sensor, compressor unit 3 Status indicator LEDs for temperature sensor, compressor unit 3 Status indicator LEDs for temperature sensor, compressor unit 4 Status indicator LEDs for temperature sensor, compressor unit 4 Status indicator LEDs for temperature sensor, compressor unit 4 Compressor unit 3 Compressor unit 4 Cooling fan motor, membrane drying unit 3...
  • Page 35 Usage Service key Check of the safety valve Usage and adjustment of the pres- sure range (see "9.3 Checking the safety valve" 12 Operation and "10.1 Adjustment of the switch-on/cut off pres- Prior to working on the unit or in case of sure").
  • Page 36 Usage 12.2 Switching the unit on/off – Adjusting the pressure range (see "10.1 Adjustment of the switch-on/cut off pressure"). Switch the unit on and off via the surgery main ❯ – Confirming filter replacement (see "13.2 switch. Changing the filter"). The compressor unit will start up automatically –...
  • Page 37 Usage 13 Maintenance Prior to working on the unit or in case of danger, disconnect it from the mains. CAUTION Risk of infection due to burst filters Particles enter the compressed air network and can therefore enter the mouth of the patient. Replace filters in accordance with the maintenance schedule.
  • Page 38 Usage Remove the air intake filter. ❯ 13.2 Changing the filter NOTICE Shortened service life, bad air quality, reduced delivery Replace the filter 1x per year or as ❯ soon as the yellow LED lights up. Filter replacement button, yellow LED lights As soon as the LED lights up, it can be temporarily switched off by pressing the button.
  • Page 39 Usage Replace the filter housing and close. 14 Taking out of use ❯ 14.1 Taking the unit out of use If the compressor is not to be used for a longer period of time, it is recommended that the unit be properly shut down and taken out of operation.
  • Page 40 Usage While the compressor is running, open the ❯ condensate drain valve on the membrane dry- ing unit. When no more water emerges, close the condensate drain valve. Unplug the mains plug. ❯ Allow all of the pressure to vent off. ❯...

  • Page 41: Troubleshooting

    Troubleshooting Troubleshooting 15 Tips for operators Any repairs exceeding routine maintenance may only be carried out by qualified personnel or our service. Error Possible cause Remedy LED on the filter replacement Filter replacement required Replace the intake filter, fine/ ❯ button lights up sterile filter and sintered filter (see "13.2 Changing the fil-...
  • Page 42 Troubleshooting Error Possible cause Remedy Compressor does not switch Excessive air extraction Check air requirements and ❯ dimensioning of the compres- off or has difficulty reaching the cut off pressure sor. Air intake filter dirty Replace the air intake filter. ❯...

  • Page 43: Tips For Service Technicians

    Troubleshooting 16 Tips for service techni- cians 16.1 Notes on repairs If a unit has failed and needs to be replaced, this can be done while the system is running. To do so, the following steps must be observed: ü Emergency mode is activated ü...

  • Page 44: Appendix

    Appendix Appendix 17 Handover protocol This document confirms the qualified handover and provision of instructions for the medical device from Dürr Dental. This must be carried out by a qualified adviser for the medical device, who will instruct you in the proper handling and operation of the medical device. Product name Order number (REF) Serial number (SN)
  • Page 48 Hersteller/Manufacturer: DÜRR DENTAL SE Höpfigheimer Str. 17 74321 Bietigheim-Bissingen Germany Fon: +49 7142 705-0 www.duerrdental.com info@duerrdental.com...

This manual is also suitable for:

4852-5448521000224852100023
