To Configure the Physical Layer Settings
Before you use Eye or SDI Status displays to monitor the SDI physical layer, you should configure the eye and physical layer
settings on the waveform rasterizer, as described on the following pages, for your monitoring needs. The eye and physical
layer settings are initially set to FACTORY defaults, which you can restore using the FACTORY front-panel button.

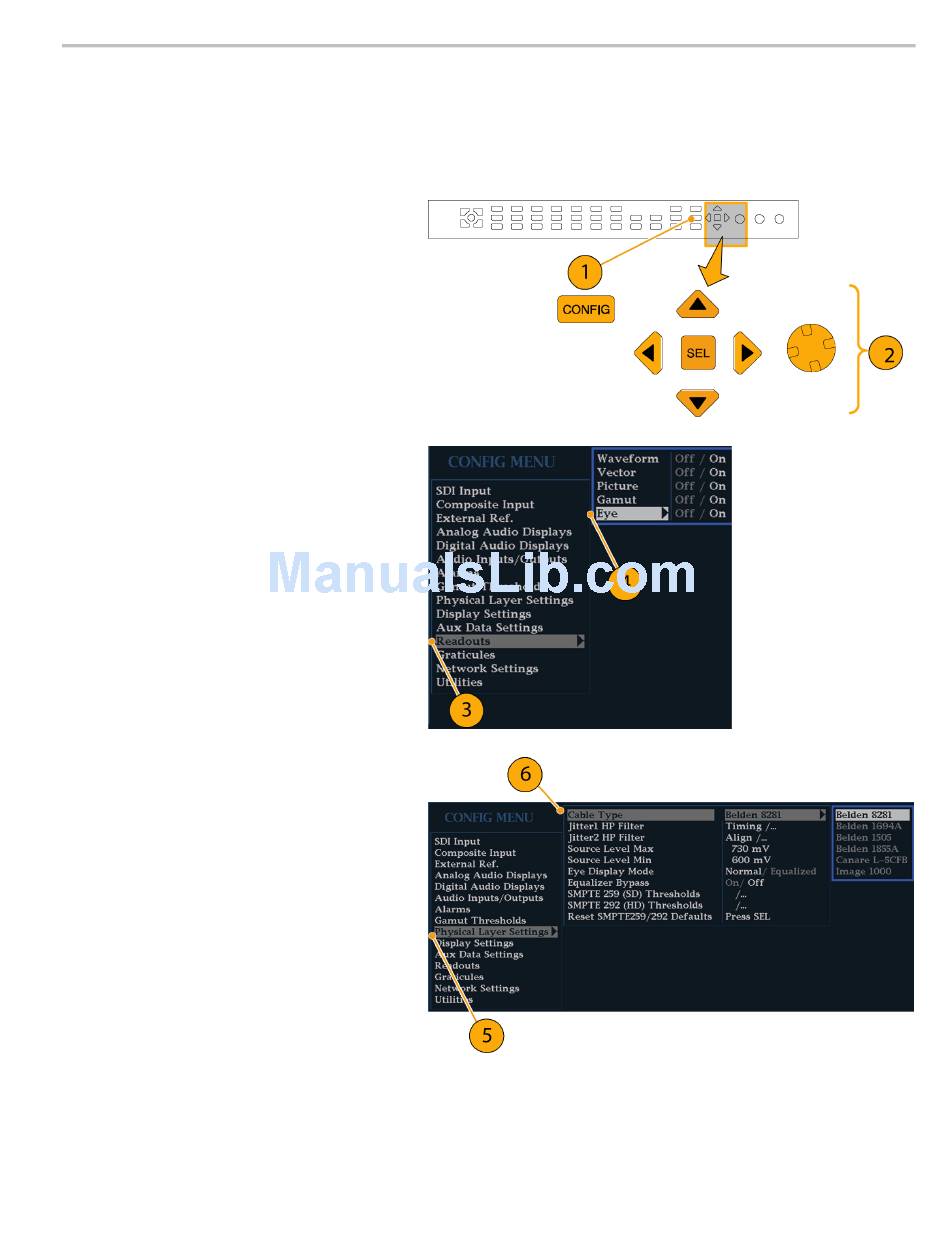

1. Press the CONFIG button to display the
CONFIG menu.
2. Use the selection (arrow) keys, the SEL
button, and the General knob to make
the menu selections in the steps that
follow.
3. Select Readouts.
4. Set Eye to On.
5. Select Physical Layer Settings.
6. Select Cable Type, and select the
best match for the type of cable that
is connecting the SDI signal to the
rasterizer.
