To Set Gain and/or Sweep

Each tile maintains its own settings independent of the other tiles. These settings include GAIN and SWEEP, and Display
Type (among others). For instance, when you switch a tile to a different measurement, the GAIN and SWEEP settings will
be changed to what they were the last time the selected measurement was displayed in the tile. As the procedure below
indicates, GAIN and SWEEP do not apply to all display types.

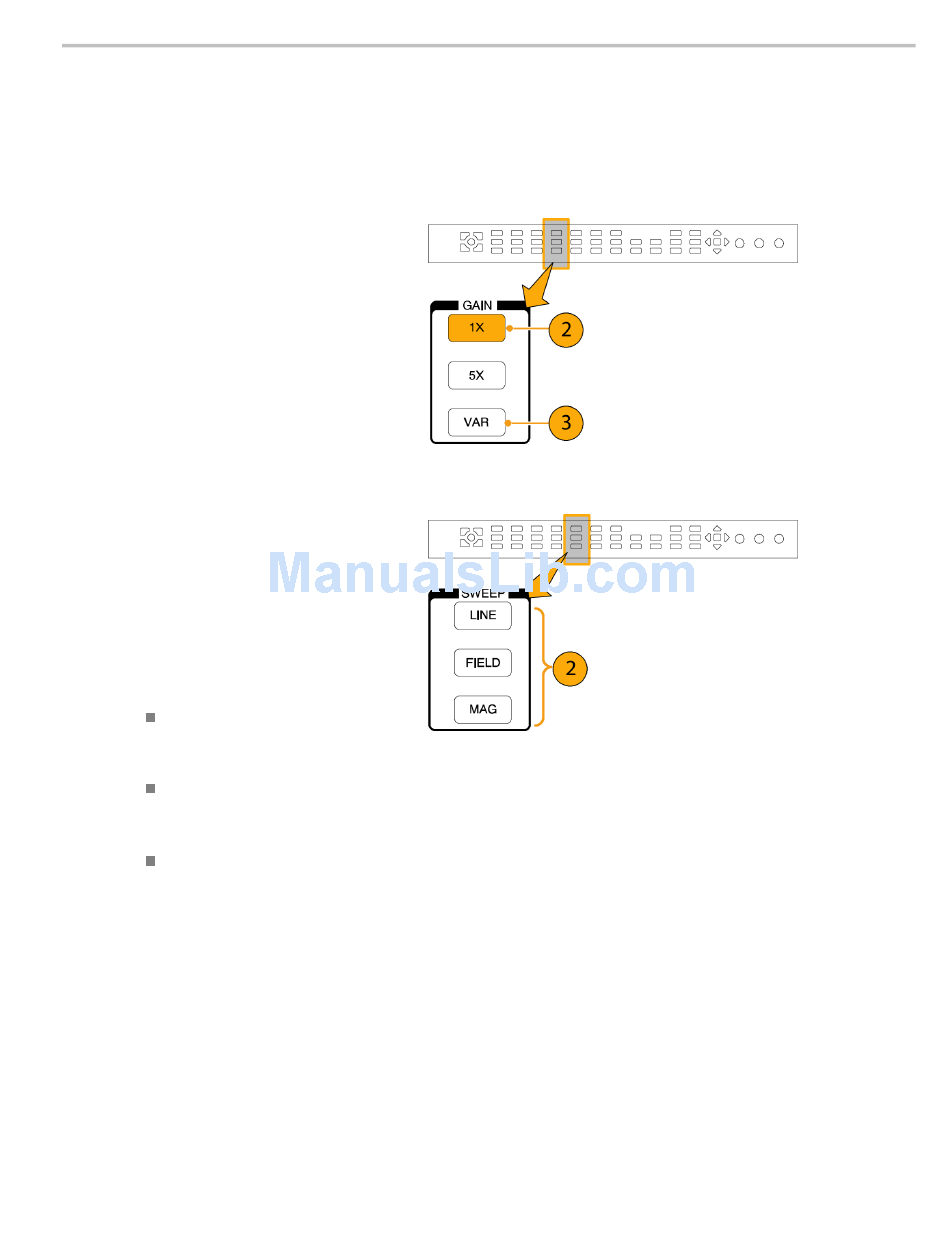

To Set Gain
1. Select a tile and a measurement as
explained in To Select a Measurement.
(See page 23.)
2. If GAIN is selectable, one of the GAIN
buttons will be lit; otherwise select
a measurement that supports GAIN
selection, such as WFM. Push the button
for the GAIN setting that you want.
3. If you push VAR(iable), set the gain that
you want using the GENERAL knob.
To Set Sweep
1. If SWEEP is selectable, one of the
SWEEP buttons will be lit; otherwise
select another measurement that
supports SWEEP selection, such as
WFM.
2. Push the button for the SWEEP setting
that you want.
LINE – Sets the active tile to the
current Line rate sweep or 2 Line
sweep
FIELD – Sets the active tile to the
current Field rate sweep or 2 Field
sweep
MAG – Sets the active tile to
Variable Gain. Gain is set using the
GENERAL knob.
3. Repeat steps 1 and 2 until you have
selected measurement displays for all
tiles that you wish to define.
