To Check Surround Sound

The waveform rasterizer can also display the surround sound listening environment.
To Check Surround Sound
1. Open the audio display in a tile and
select the input containing the surround
audio. (See page 88.)

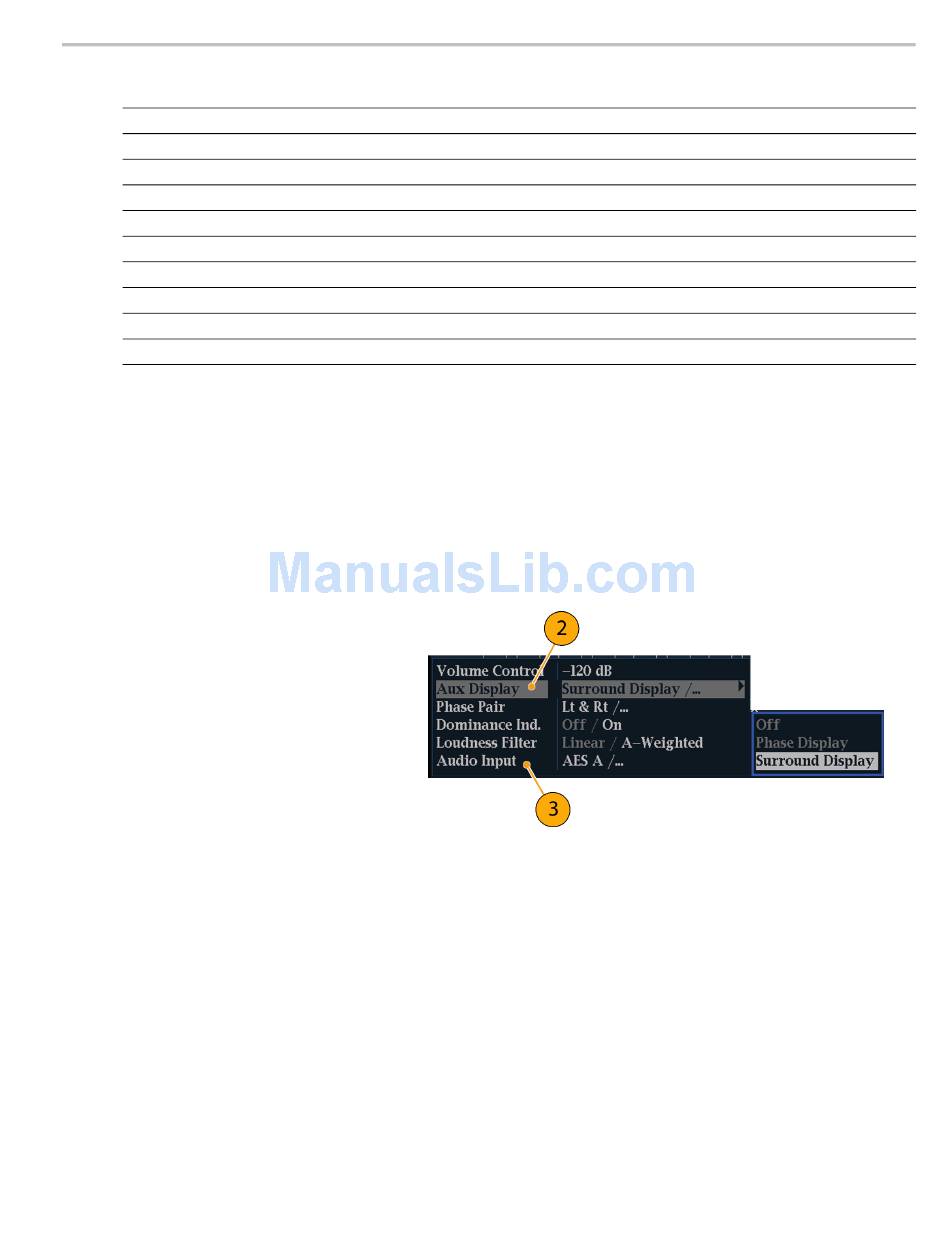

2. Select Aux Display, and then select
Surround Sound Display. Press SEL
or the right-arrow key to turn the phase
display on.
3. Set the Audio Input to match the signal
that you are checking.
NOTE. If you want the level bars labeled
with their surround sound channel names
instead of channel numbers, select Srnd
(Surround) when you configure the audio
inputs. (See page 86.)
You can also set the Dolby Listening mode.
(See page 95, How to Monitor Dolby-Based
Surround Sound.)
WVR6100, WVR7000, and WVR7100 Waveform Rasterizers Quick Start User Manual
Response averaging time (s)
0.0167
0.0333
0.0667
0.1333
0.2667
0.5333
1.0
1.5
2.0
2.5
Speed setting Response averaging time (s)
11 3.0
12 3.5
13 4.0
14 4.5
15 5.0
16 5.5
17 6.0
18 6.5
19 7.0
20 7.5
