Introduction

1.3 Spare Parts

Contact Danfoss for information about spare parts, part
1 1
numbers, and ordering.

1.4 Unpacking

Contents:
•
Inverter
•
Mounting plate
•
Accessories bag, containing: 3 mounting screws, 2
cable glands, 2 rubber cups, 1 earthing screw,
and 1 security label for France.
•
4 to 6 Sunclix mating parts depending on the
number of MPPT for FLX Pro 5-17.
•
Installation guide, booklet format
•
Quick guide, poster format
The following items are not supplied:
•
Security screws, M5 x 8-12, optional (not available
as product from Danfoss)

1.5 Identification of Inverter

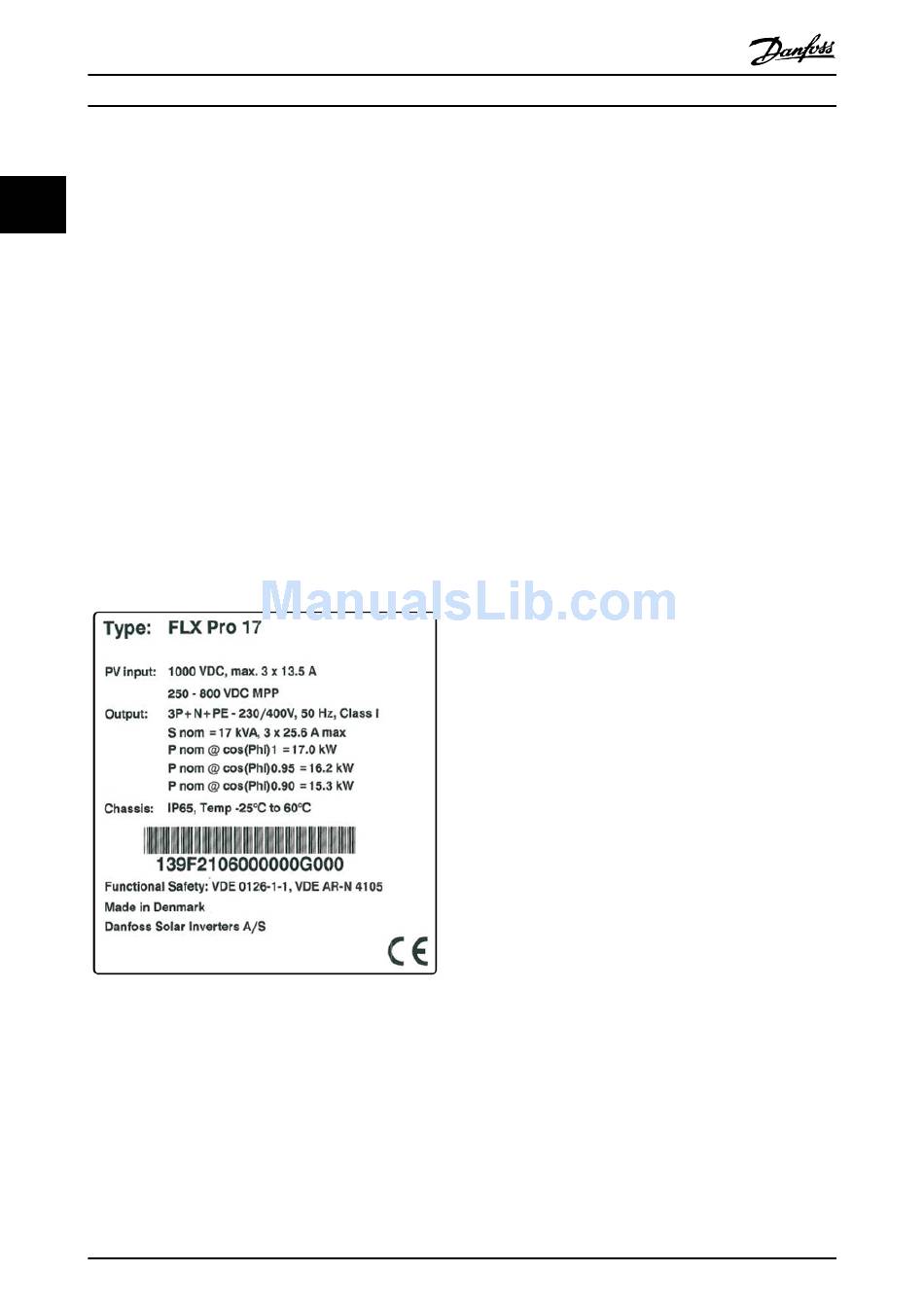

Illustration 1.2 Product Label
The product label on the side of the inverter shows:
•
Inverter type
•
Important specifications
•
Serial number, located under the bar code, for
inverter identification.
4

1.6 Installation Sequence

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
For installation and setup of multiple FLX Pro inverters in
master-follower configuration:
•
•
•

1.7 Return and Disposal

When replacing an inverter, it can either be returned to
your distributor, to Danfoss directly, or disposed of
according to local and national regulations. Danfoss is
committed to its policy of environmental responsibility,
and therefore appeals to end users who are disposing of
inverters to follow local environmental legislation and to
seek safe, responsible means of disposal.
L00410568-02_02 / Rev. date: 2013-12-10
Pay special attention to 1.1 Safety Message Types.
Install the inverter according to 2.1 Environment
and Clearances, 2.2 Mounting the Mounting Plate
and 2.3 Mounting the Inverter.
Open the inverter according to 2.5 Access to the
Installation Area.
Install AC according to 2.6 AC Grid Connection.
Install RS-485 or Ethernet, if used, according to
2.7 RS-485 or Ethernet Connections.
Install options, if any, according to the installation
guide supplied with the option.
Close the inverter according to 2.5 Access to the
Installation Area.
Install PV according to 2.10 PV Connection.
Turn on AC at the mains switch.
Set language, master mode, time, date, installed
PV power, country, and grid code:
•
For setup via the web interface, refer to
3.3 Web Interface.
•
For setup via the display, refer to
3.2 Display.
Turn on PV by turning on the PV load switch.
Refer to 2.10.1 Connection of PV.
Verify the installation by comparing with the
autodetection result in the display, as described
in 2.10 PV Connection.
The inverter is now in operation.
Perform steps 2–9 and 11 for each inverter.
Perform step 10 on the inverter planned as
master.
Perform step 12.
