5.4 Installation Conditions
Parameter
Temperature
Relative humidity
Pollution degree
Environmental class according to IEC
Air quality - general
Air quality - coastal, heavy industrial and agricultural zones
Vibration
Observe product ingress protection class
Max. operating altitude
Installation
Table 5.7 Conditions for Installation
Parameter
Mounting plate
Table 5.8 Mounting Plate Specifications
5.4.1 France UTE Requirements
NOTICE
In France, observe the UTE C 15-712-1 and NF C 15–100
requirements.
For installation in France, apply warning label to front of
inverter.
Specification
−25 °C - +60 °C (for temperature derating see the FLX Series Design Guide.)
95 % (non-condensing)
PD2
IEC60721-3-3
3K6/3B3/3S3/3M2
ISA S71.04-1985
Level G2 (at 75% RH)
Must be measured and classified acc. to ISA S71.04-1985
1G
IP65
2000 m above sea level.
PELV protection is effective up to 2000 m above sea level only.
Avoid constant stream of water.
Avoid direct sunlight.
Ensure adequate air flow.
Mount on non-flammable surface.
Mount upright on vertical surface.
Prevent dust and ammonia gases.
The FLX inverter is an outdoor unit.
Condition
Hole diameter
Alignment

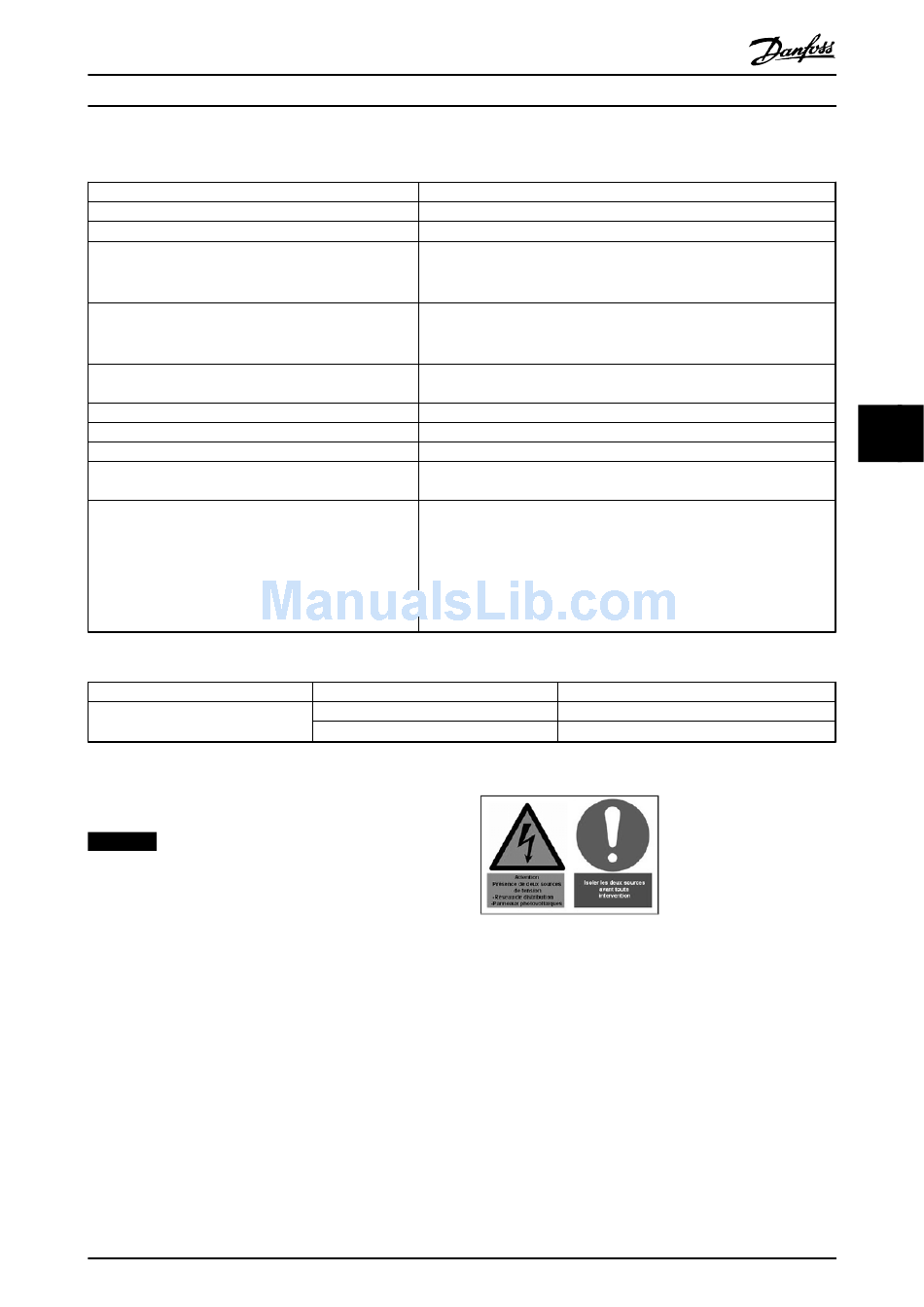

Illustration 5.1 Warning Label
L00410568-02_02 / Rev. date: 2013-12-10
Specification
30 x 9 mm
Perpendicular ±5° all angles
5
5
39
