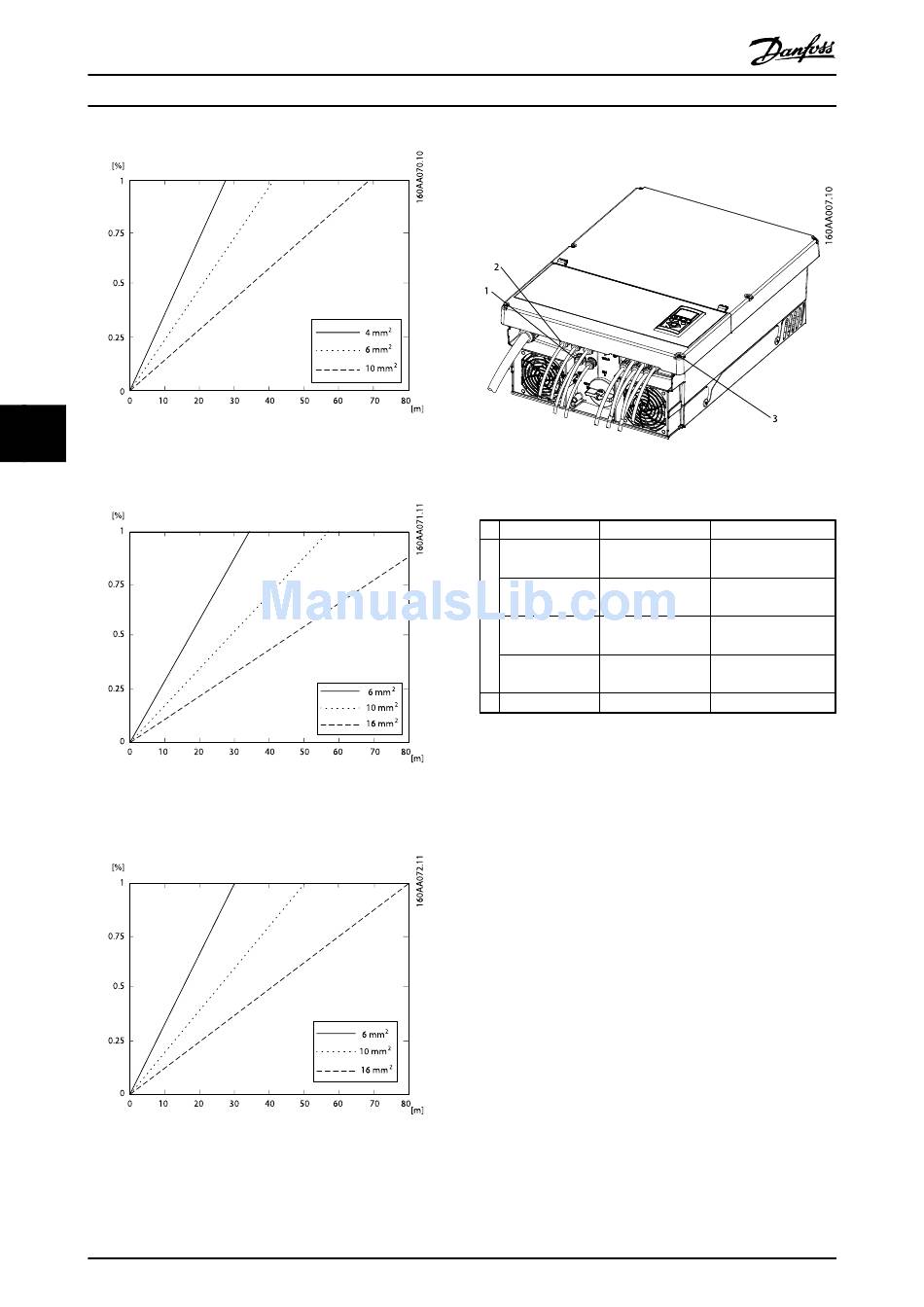

Illustration 5.8 FLX Series 12.5, Cable Losses [%] versus Cable
Length [m]
Illustration 5.9 FLX Series 15, Cable Losses [%] versus Cable
Length [m]
Illustration 5.10 FLX Series 17, Cable Losses [%] versus Cable
Length [m]
42

5.6 Torque Specifications

Illustration 5.11 Overview of Inverter with Torque Indications
1
Parameter
1 M16 cable gland
body
M16 cable gland,
compression nut
2 M25 cable gland
body
M25 cable gland,
compression nut
3 Front screw
Table 5.11 Nm Specifications 1
L00410568-02_02 / Rev. date: 2013-12-10
Tool Tightening Torque
Wrench 19 mm 3.75 Nm
Wrench 19 mm 2.5 Nm
Wrench 27 mm 7.5 Nm
Wrench 27 mm 5.0 Nm
Torx TX 20 1.5 Nm
