Proline Promag 53 MODBUS RS485
Design / dimensions
Weight (SI units)
!
Endress+Hauser

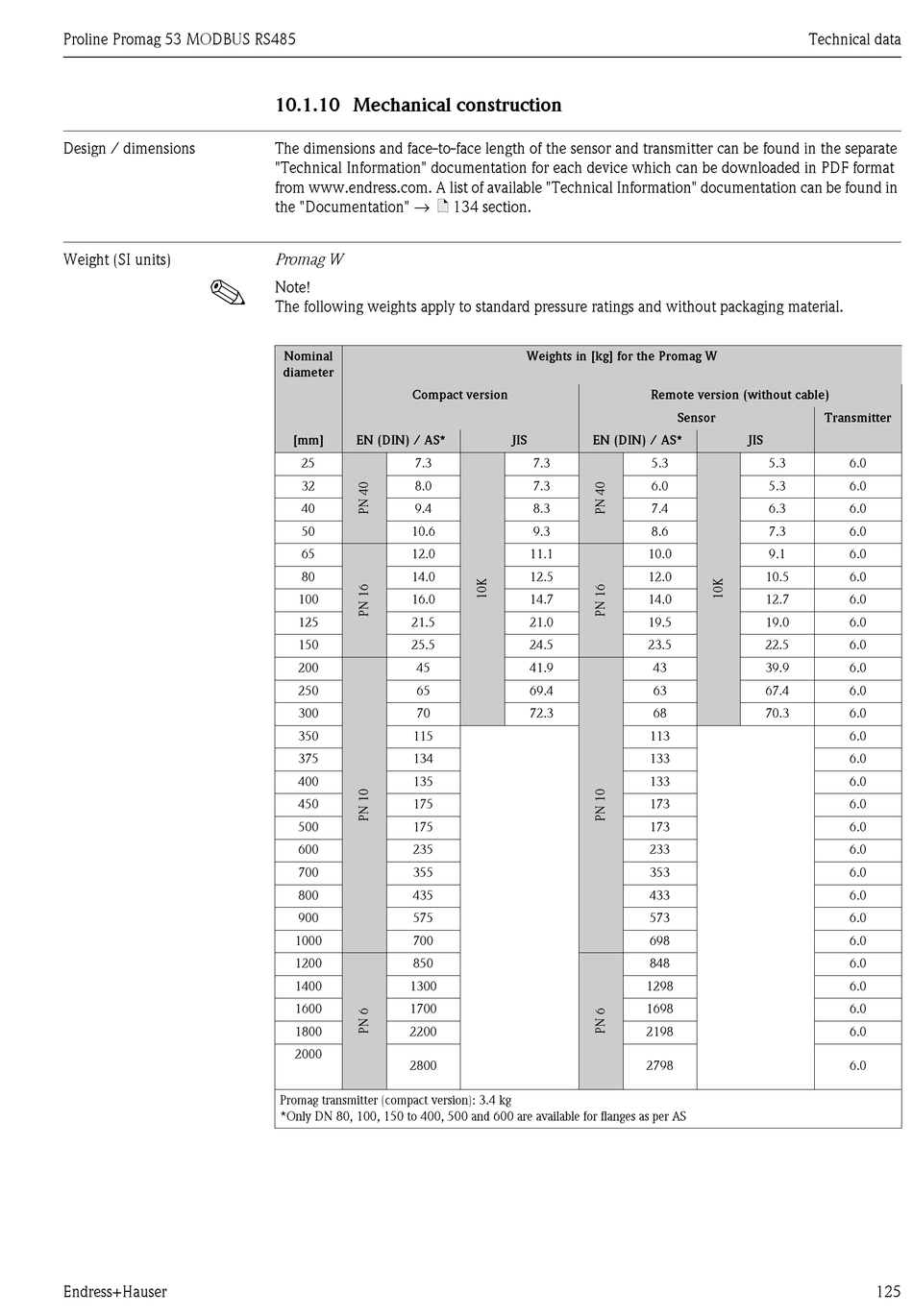

10.1.10 Mechanical construction

The dimensions and face-to-face length of the sensor and transmitter can be found in the separate
"Technical Information" documentation for each device which can be downloaded in PDF format
from www.endress.com. A list of available "Technical Information" documentation can be found in
the "Documentation" → ä 134 section.
Promag W
Note!
The following weights apply to standard pressure ratings and without packaging material.
Nominal
diameter
Compact version
[mm] EN (DIN) / AS*
25 7.3
32 8.0
40 9.4
50 10.6
65 12.0
80 14.0
100 16.0
125 21.5
150 25.5
200 45
250 65
300 70
350 115
375 134
400 135
450 175
500 175
600 235
700 355
800 435
900 575
1000 700
1200 850
1400 1300
1600 1700
1800 2200
2000
2800
Promag transmitter (compact version): 3.4 kg
*Only DN 80, 100, 150 to 400, 500 and 600 are available for flanges as per AS
Weights in [kg] for the Promag W
Remote version (without cable)
Sensor
JIS EN (DIN) / AS*
7.3 5.3
7.3 6.0
8.3 7.4
9.3 8.6
11.1 10.0
12.5 12.0
14.7 14.0
21.0 19.5
24.5 23.5
41.9 43
69.4 63
72.3 68
113
133
133
173
173
233
353
433
573
698
848
1298
1698
2198
2798
Technical data
Transmitter
JIS
5.3 6.0
5.3 6.0
6.3 6.0
7.3 6.0
9.1 6.0
10.5 6.0
12.7 6.0
19.0 6.0
22.5 6.0
39.9 6.0
67.4 6.0
70.3 6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
