Identification
8
2.1.2

Nameplate of the sensor

1
2
3
4
5
6
7
8
9

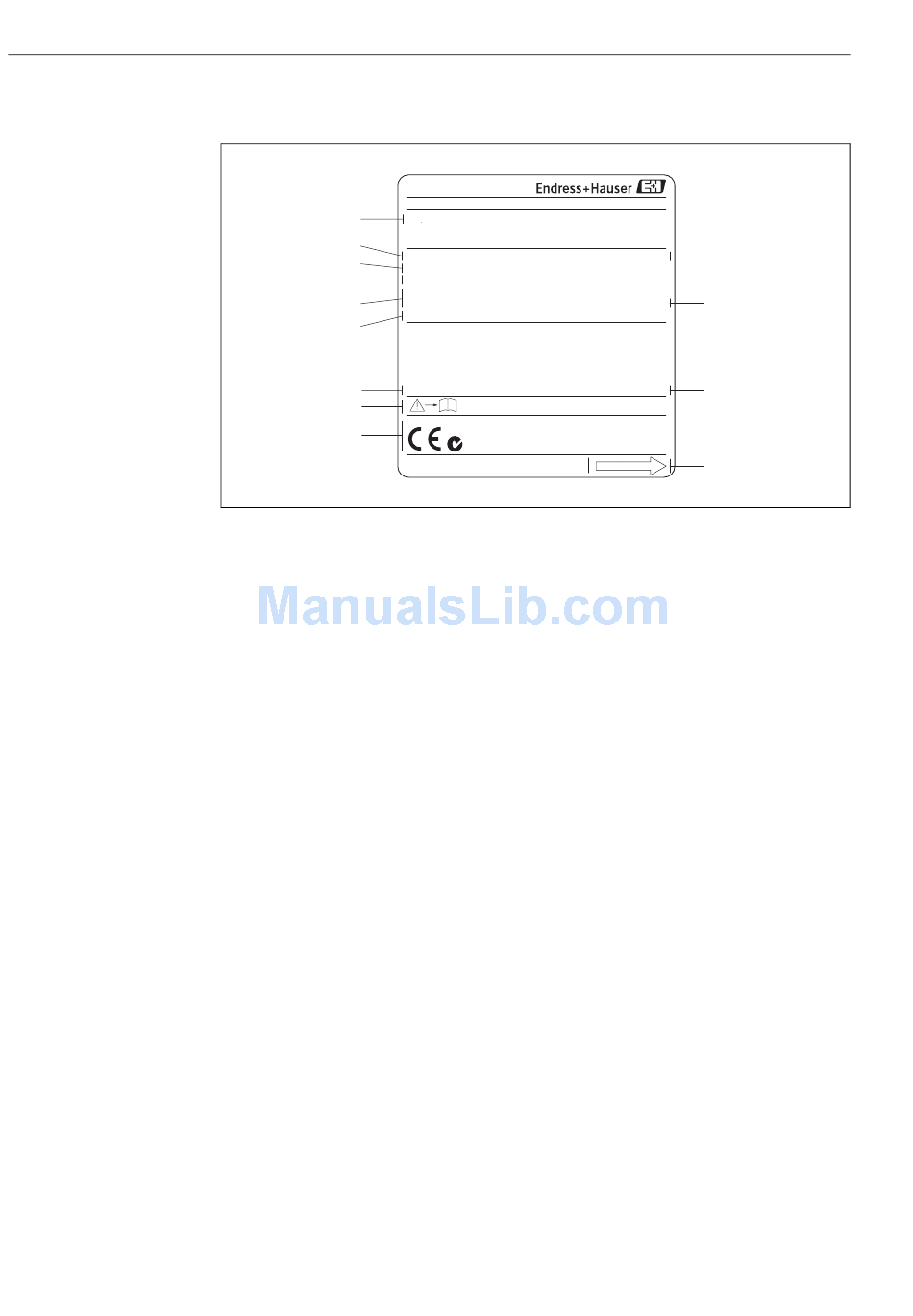

Fig. 2: Nameplate specifications for the "Promag W" sensor (example)
1 Order code/serial number: See the specifications on the order confirmation for the meanings of the individual
letters and digits
2 Calibration factor with zero point
3 Nominal diameter/nominal pressure
4 Medium temperature range
5 Materials: lining/measuring electrode
6 Reserved for additional information on special products
7 Permitted ambient temperature range
8 Please comply with the Operating Instructions
9 Reserved for additional information on device version (approvals, certificates)
10 Calibration tolerance
11 Additional information
– EPD: with empty pipe detection electrode
– R/B: with reference electrode
12 Degree of protection
13 Flow direction
PROMAG W
Order Code: 53W1H-XXXXXXXXXXXX
12345678901
Ser.No.:
ABCDEFGHJKLMNPQRST
TAG No.:
1.0000/0000
K-factor:
DN100 DIN EN PN40 /
–20 °C ...+150°C/–4 ...+300°F °F
TM:
PFA
Materials:
1.4435/316L
Electrodes:
–20°C (–4°F)<Tamb<+60°C (+140°F)
i
N12895
Pat. US 4,382,387 4,704,908 5,540,103
Proline Promag 53 MODBUS RS485
10
0.2 CAL
11
EPD/MSÜ, R/B
12
NEMA/Type4X
13
Endress+Hauser
a0011854
