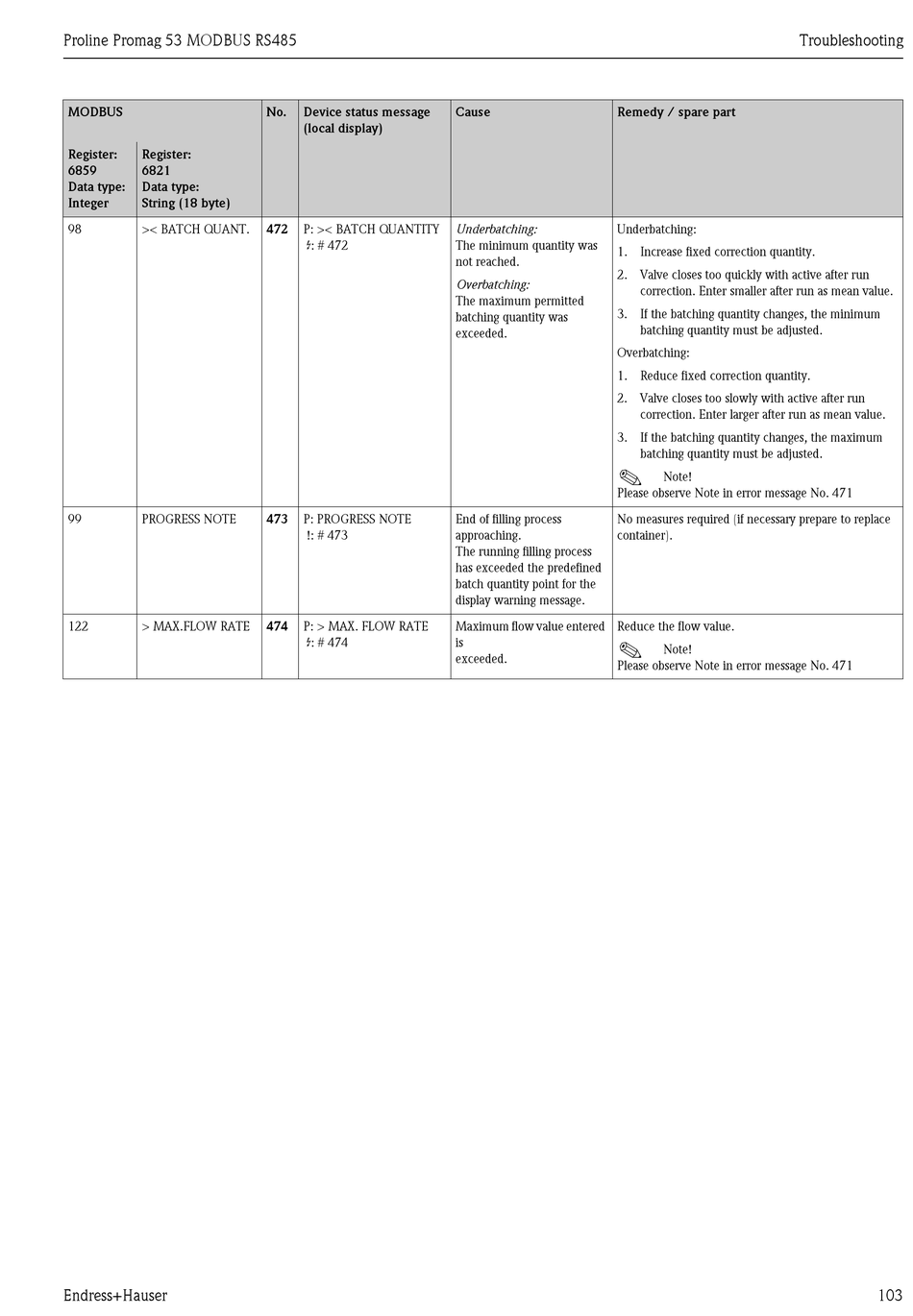

Proline Promag 53 MODBUS RS485
MODBUS
Register: Register:
6859 6821
Data type: Data type:
Integer String (18 byte)
98 >< BATCH QUANT.
99 PROGRESS NOTE
122 > MAX.FLOW RATE
Endress+Hauser
No. Device status message
(local display)
472 P: >< BATCH QUANTITY
$: # 472
473 P: PROGRESS NOTE
!: # 473
474 P: > MAX. FLOW RATE
$: # 474
Cause Remedy / spare part
Underbatching: Underbatching:
The minimum quantity was
1. Increase fixed correction quantity.
not reached.
2. Valve closes too quickly with active after run
Overbatching:
The maximum permitted
3. If the batching quantity changes, the minimum
batching quantity was
exceeded.
Overbatching:
1. Reduce fixed correction quantity.
2. Valve closes too slowly with active after run
3. If the batching quantity changes, the maximum
!
Please observe Note in error message No. 471
End of filling process No measures required (if necessary prepare to replace
approaching. container).
The running filling process
has exceeded the predefined
batch quantity point for the
display warning message.
Maximum flow value entered Reduce the flow value.
!
is
exceeded.
Please observe Note in error message No. 471
Troubleshooting
correction. Enter smaller after run as mean value.
batching quantity must be adjusted.
correction. Enter larger after run as mean value.
batching quantity must be adjusted.
Note!
Note!
