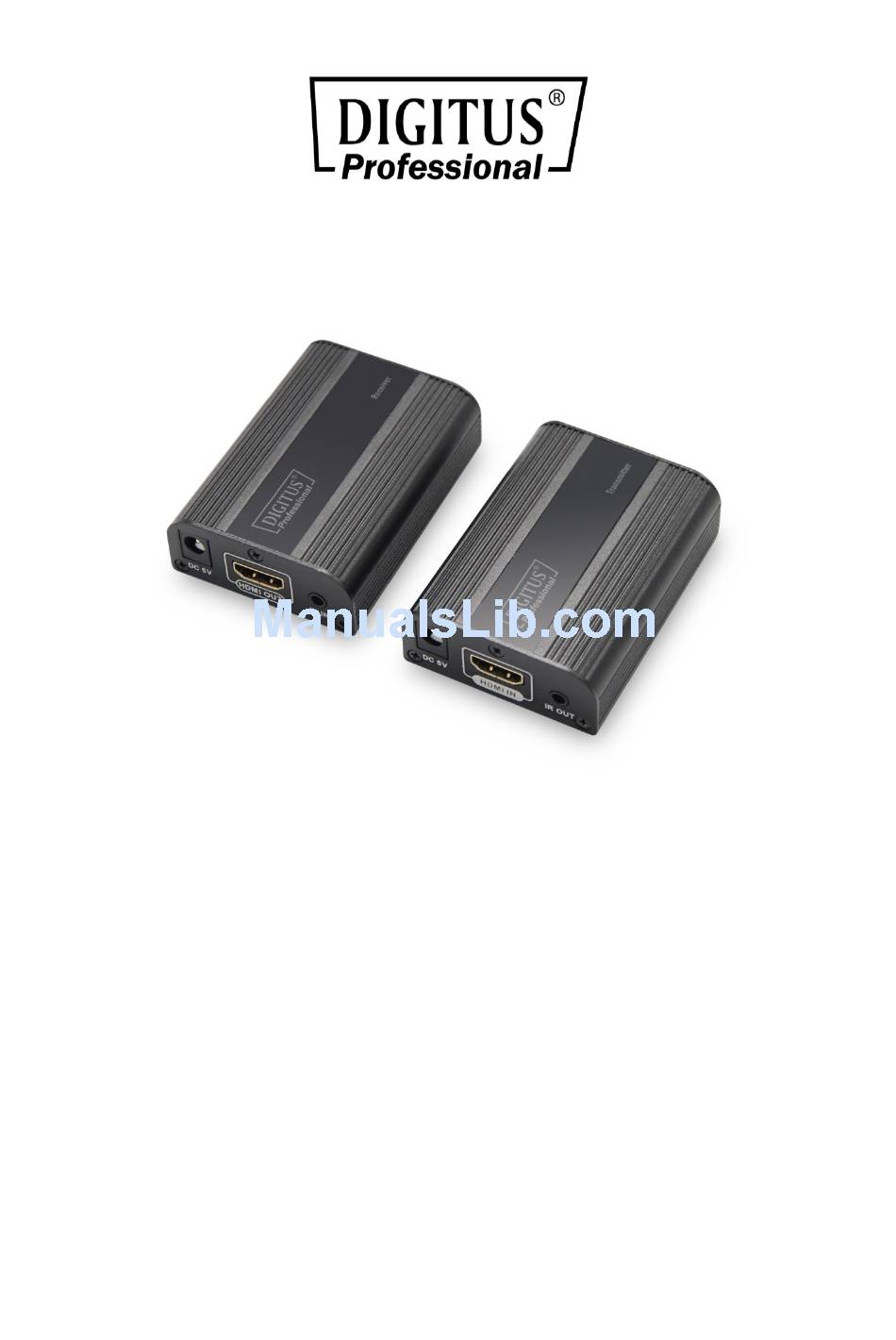

4K HDMI Extender Set, 4K2K/60Hz
Manual
DS-55204
The Digitus 4K Extender Set, 4K2K/60Hz offers an extender solution of up to 60 m for
the highest demands - both for high-resolution graphics and for absolutely smooth
video playback. It transmits digital 4K2K/60Hz video and audio signals to a maximum
length of up to 30 m. 4K2K/30Hz content can be transmitted to up to 60 m. It also
supports UTP/STP CAT 6, 6a as well as 7 network cables (as per IEEE-568B standard).

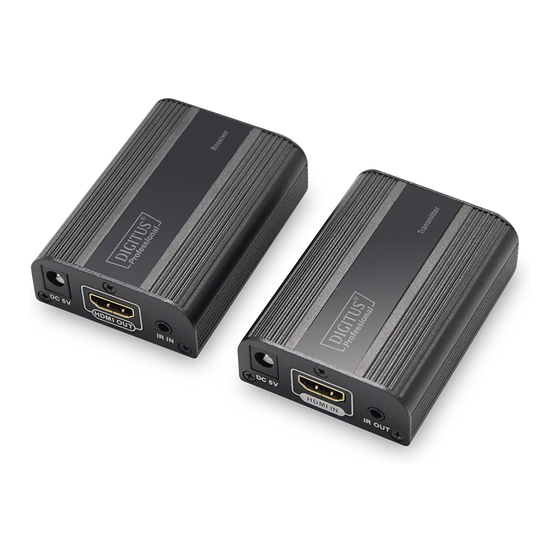

It consists of a transmitter as well as a receiver unit. It also includes two infrared
units (transmitter, receiver) which enable the use of the remote control of the
connected input source.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-55204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DS-55204

Summary of Contents for Digitus DS-55204

  • Page 1 Manual DS-55204 The Digitus 4K Extender Set, 4K2K/60Hz offers an extender solution of up to 60 m for the highest demands - both for high-resolution graphics and for absolutely smooth video playback. It transmits digital 4K2K/60Hz video and audio signals to a maximum length of up to 30 m.

  • Page 2: Important Safety Instructions

    Important Safety Instructions: 1. Do not mix up HDMI to RJ45 sender and RJ45 to HDMI receiver before installation. 2. Do not hot plug when it is working. 3. Use DC5V power supply only. Make sure specification matched if using adapters not supplied by factory.

  • Page 3: Specification

    Specification Item Description Model DS-55204 Product type HDMI2.0 Extender over CAT 6 HDMI2.0 extender over CAT 6, 30m Function Feature with 4K@60Hz, 60m with 4K @30Hz, zero latency Max transfer rate 18Gbps Color Depth 12bit HDMI version HDMI2.0 HDCP version HDCP2.2...

  • Page 4: Installation Requirements

    TX: 80g Weight RX: 80g Colour black MTBF (Meantime between failures) >30000Hours 5V1A power adapter x 2 IR sender x 1 Accessory: IR receiver x 1 User manual x 1 Installation Requirements 1. HDMI source device (computer graphics card, DVD, PS3,) HD monitoring like camera etc.

  • Page 5: Installation Procedures

    2. Receiver unit (RX) Reset button Press for restarting the unit ① RJ45 signal input Input encoded HDMI signal ② Power indicator LED indicator turn on when power on ③ DC5V input Connect with the display supply ④ HDMI signal output Connect with the display device ⑤...
  • Page 6 2. Connection HDMI EXTENDER TX HDMI EXTENDER RX CAT6/6A/Cable HDMI OUT HDMI display 3. Connection instruction  Connect source device to Transmitter unit (TX), and display device to Receiver unit (RX) via HDMI cables.  Connect Transmitter unit (TX) and Receiver unit (RX) via network cables (CAT 6, CAT 6A or CAT 7).
  • Page 7 Q: There is no output on screen when all connections are correct? 1. Please check and make sure the display/monitor supports the HDMI signal which fed out from the source device. 2. Please make sure the HDMI cables supports 4K×2K if the output signal from the source device is 4K×2K resolution.
