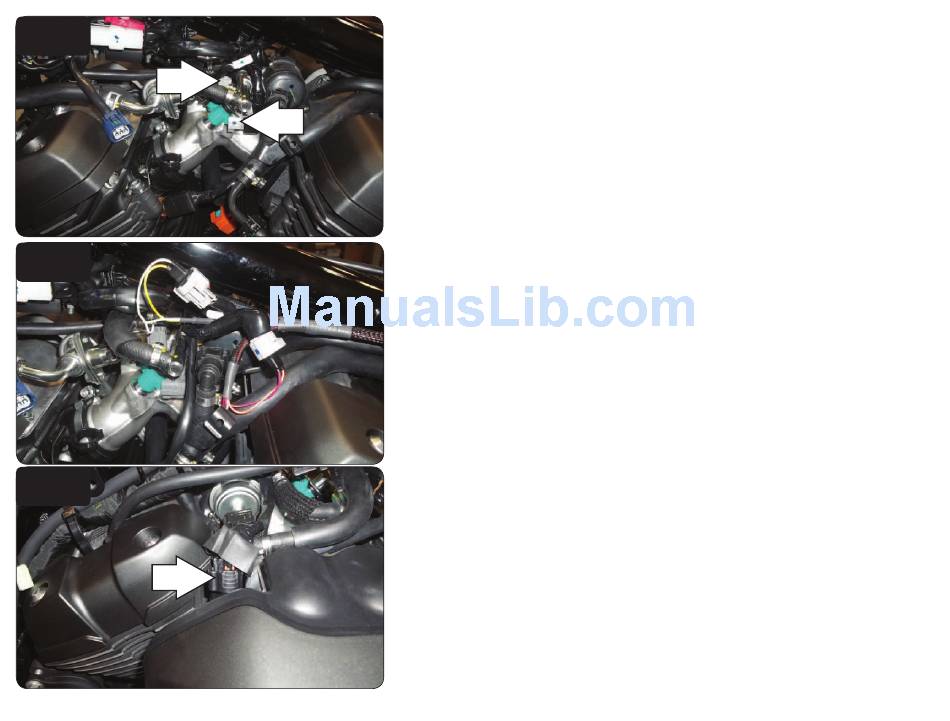

FIG.D
rear
FIG.E
FIG.F
TPS
IFC22035
www.powercommander.com
9
front
10 Attach the PCFC connectors with the orange wires to the front cylinder fuel
11 Attach the PCFC connectors with the yellow wires to the rear cylinder fuel
12 Unplug the Throttle Position Sensor (TPS) connector.
Unplug the stock wiring harness from the front and rear cylinder fuel injectors.
The front and rear cylinder fuel injectors are located directly on top of the
intake manifold.
injector and stock wiring harness.
injector and stock wiring harness.
The TPS connector is located on the rear of the throttle bodies.
2009-2017Yamaha XV950, Bolt 950, & SCR950 - 4
