Installation instructions for part 95-9310B
BMW 3-Series 1999-2005,
3-Series
(coupe, convertible)
(for factory switch panel with five separate openings)
KIT FEATURES
• ISO DDIN radio provision
• Painted matte black
• Relocates the factory climate control and switches
KIT COMPONENTS

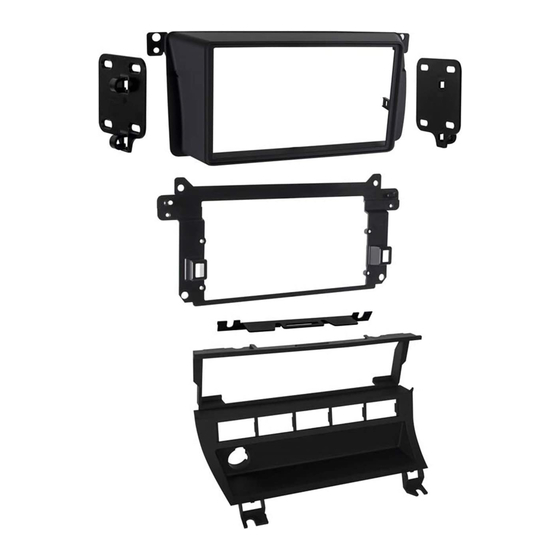

• A) Radio trim panel • B) Back up housing • C) Radio brackets • D) Climate and switch panel housing
• E) Climate bracket • F) (4) #8 x 1/2" Phillips screws • G) (2) #8 x 3/8" Phillips screws • H) (2) panel clips
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-8590 • 70-9003 (nav models 02-06) Antenna Adapter: • 40-VW10 40-EU10 (nav models 02-06)
METRA. The World's best kits.
2006, M3 2001-2006
95-9310B
C
D
metraonline.com
Table of Contents
Dash Disassembly ..............................................2-4
Kit Assembly
– ISO DDIN radio provision ...................................... 5
Climate and Switch Panel Assembly .................... 6
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Pick tool
E
CAUTION: Metra recommends disconnecting the negative battery
terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your
local Dealership for more information. All accessories, switches,
F
climate controls panels, and especially air bag indicator lights
must be connected before reconnecting the battery or cycling
G
H
the ignition. Also, do not remove the factory radio with the key
in the on position, or the vehicle running. It would be best to
remove the key from the ignition and then wait a few seconds
before removing the factory radio.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
