KIT COMPONENTS

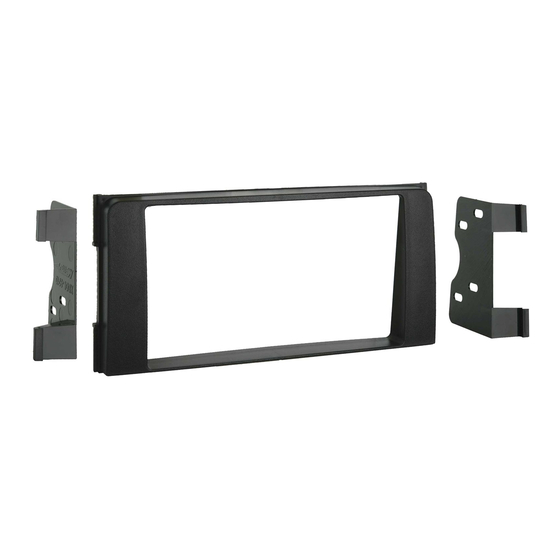

• A) Radio trim panel • B) Radio brackets • C) (4) #8 x 3/8 Phillips screws
A
B
Metra. The World's Best Kits.
®
Toyota 4-Runner Limited
(without navigation)
KIT FEATURES
• ISO DDIN radio provision
C
MetraOnline.com
2003-2009
© COPYRIGHT 2018 METRA ELECTRONICS CORPORATION
95-8210
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1761 • TYTO-01 (for amplified
models)
Antenna Adapter: Not required
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 5/8/18 INST95-8210
