INSTALLATION INSTRUCTIONS FOR PART 95-7882B

Honda Civic 2013-up

KIT FEATURES

• Double DIN radio provision

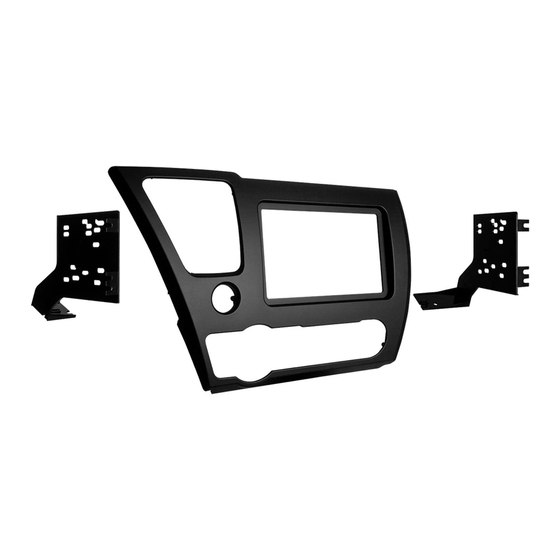

KIT COMPONENTS

• A) Radio Trim Panel • B) Brackets • C) 3 metal and 3 plastic Panel Clips

• D) (4) #8 x 3/8" truss-head Phillips screws • E) (9) #8 x 3/8" pan-head Phillips screws

• F) (3) #4 x 3/8" truss-head Phillips screws • G) 2) #8 x 1/2" pan-head Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-1729 standard system harness • 70-1730 premium sound harness

Antenna Adapter: • 40-HD11

METRA. The World's best kits.

APPLICATIONS

95-7882B

™

1-800-221-0932

Dash Disassembly

– Honda Civic 2013-up ........................................... 2

Kit Assembly

– Double DIN radio provision ................................... 3

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Socket Wrench

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

metraonline.com

Table of Contents

Need help?

Do you have a question about the 95-7882B and is the answer not in the manual?

Questions and answers

Summary of Contents for Metra Electronics 95-7882B

Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7882B APPLICATIONS Table of Contents Honda Civic 2013-up 95-7882B Dash Disassembly – Honda Civic 2013-up ........... 2 Kit Assembly – Double DIN radio provision ........3 KIT FEATURES • Double DIN radio provision KIT COMPONENTS • A) Radio Trim Panel • B) Brackets • C) 3 metal and 3 plastic Panel Clips •...
Page 2 95-7882B Dash Disassembly 1. Below radio, open pocket door and (Figure D) remove two Phillips screws and remove pocket. (Figure A) 2. Remove two Phillips screws from bottom edge of factory radio. (Figure B) 3. Remove two 8mm screw from inside pocket cavity (facing up).
Page 3 95-7882B Kit Assembly Double DIN radio provisions 2. Attach the three metal and three plastic panel clips. (factory clips 1. Factory screws can be used, or using the nine #8 x 3/8” pan-head Phillips can be used in place of the metal...
Page 4 INSTALLATION INSTRUCTIONS FOR PART 95-7882B NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow.
Page 5 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-7882B AplicAciones Indice Honda Civic 2013 y mas 95-7882B Desmontaje del tablero – Honda Civic 2013 y mas ........2 Ensamble del kit – Provisión de radio DDIN ........3 cArActerísticAs del kit • Provisiones de radio DDIN •...
Page 6 95-7882B Desmontaje del tablero 1. Debajo del radio, abra la puerta de la cavidad y quite los dos tornillos Phillips y quite la cavidad. (Figura A) 2. Quite los dos tornillos Phillips del borde inferior del radio de fábrica. (Figura B) 3.
Page 7 95-7882B Ensamble del kit Provisiones de unidad central doble DIN 2. Instale los 3 ganchos del panel de metal y los tres de plástico. (Se pueden usar ganchos de 1. Se pueden usar los tornillos de fábrica, o usando los nueve tornillos Phillips de cabeza fábrica en lugar de ganchos de metal, pero...
Page 8 INSTRUCCIONES DE INSTALACIÓN PARA LA PIEZA 95-7882B EL CONOCIMIENTO ES PODER NOWLEDGE IS OWER Mejore sus habilidades de instalación y fabricación Enhance your installation and fabrication skills by inscribiéndose en la escuela de dispositivos electrónicos enrolling in the most recognized and respected mobile electronics school in our industry.
