Metra Electronics Ford F-150 2009-up Installation Instructions

INSTALLATION INSTRUCTIONS FOR PART 95-5819

Ford F-150 2009-up

KIT FEATURES

• Double DIN radio provision

KIT COMPONENTS

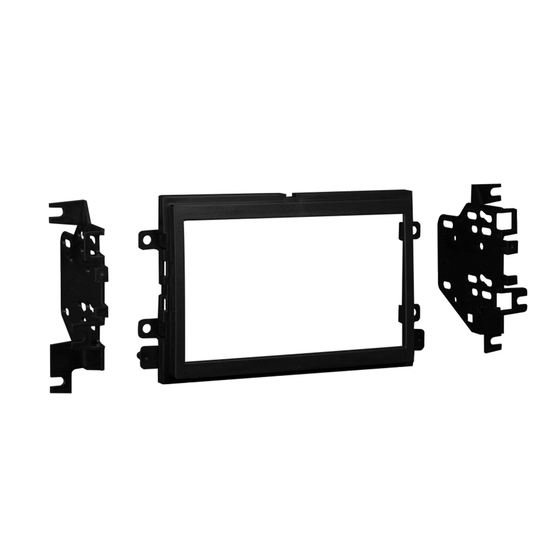

• A) Double DIN radio housing • B) Double DIN brackets

METRA. The World's best kits.

(only XL models without plus package)

95-5819

™

1-800-221-0932

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness:

• 70-5520 - Ford 2003-up

Antenna Adapter:

• 40-CR10 - Chrysler 2002-up

TOOLS REQUIRED

• Cutting tool • Phillips screwdriver

• Socket wrench

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.
