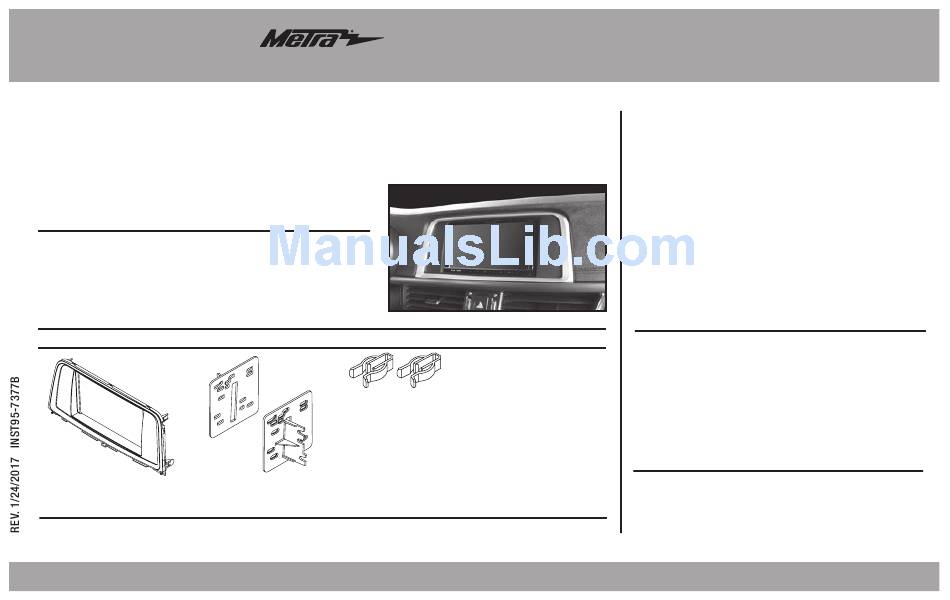

INSTALLATION INSTRUCTIONS FOR PART 95-7377B
Kia Optima 2016-up
KIT FEATURES
• ISO DDIN radio provision
• Painted matte black
KIT COMPONENTS

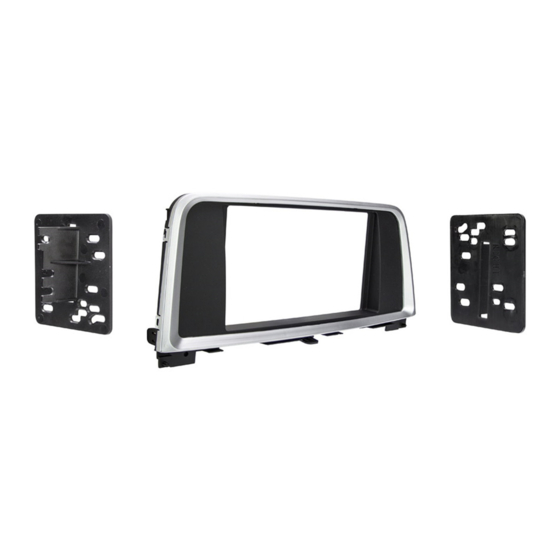

• A) Radio trim panel • B) Radio brackets • C) (2) Panel clips
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • 70-7304 Antenna Adapter: • Not required
METRA – The World's best kits.
95-7377B
C
metraonline.com
®
Table of Contents
Dash Disassembly ................................................. 2
Kit Preparation ....................................................... 3
Kit Assembly .......................................................... 3
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
CAUTION!
All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
