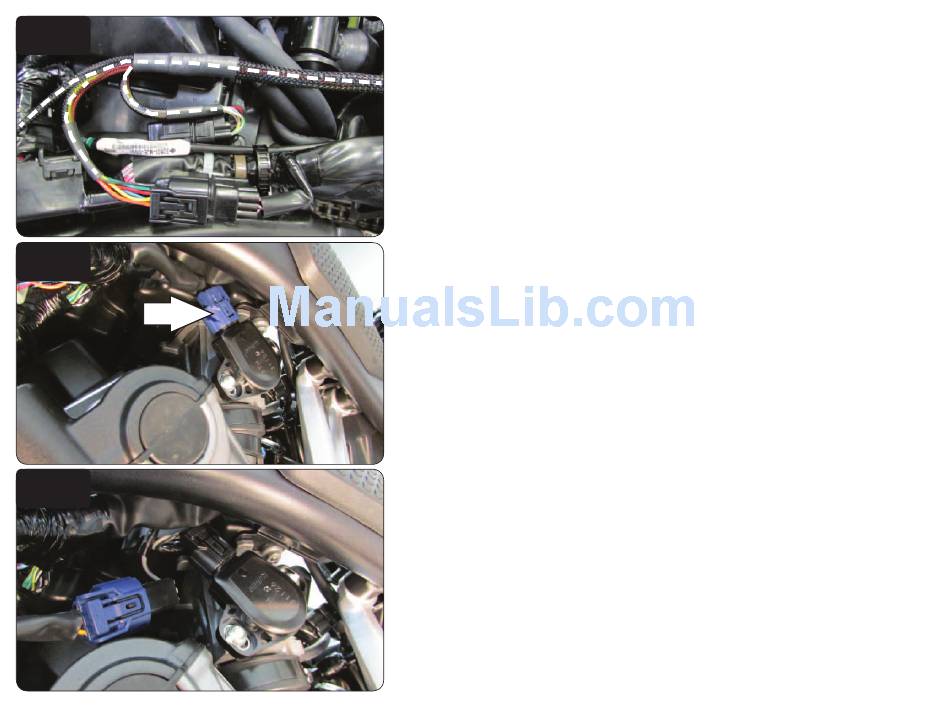

Plug the PCFC wiring harness in-line of the stock Fuel Injector sub-harness
connectors (Fig. D).
9
Route the pair of 3-pin PCFC wiring harness connectors along the left side of
the airbox, between the airbox and the frame, and to the bike's Throttle Position
Sensor on the left hand side of the throttle bodies.
10 At the left hand side of the throttle bodies, unplug the stock wiring harness
from the bike's Throttle Position Sensor (Fig. E).
11 Plug the PCFC wiring harness in-line of the bike's TPS and the stock wiring
harness (Fig. F).
2014 Honda CB650F/CBR650F - PCFC - 4
