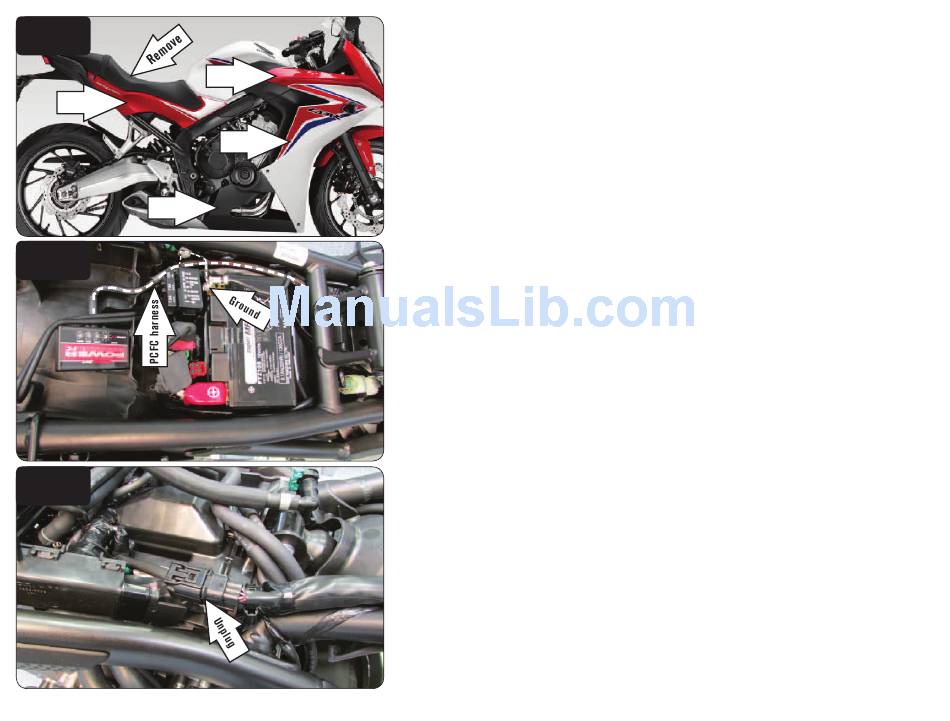

FIG.A
Remove
Remove
FIG.B
FIG.C
FC16052
Remove
Remove
www.powercommander.com
1
Remove the seat.
2
Remove both side panels below the seat. Remove the mid and lower fairing
panels on both sides. Remove the inner fairing panels just forward of the fuel
tank on both sides (Fig. A).
3
Loosen the front of the fuel tank. Lift and prop the fuel tank.
4
Using the supplied Velcro, secure the PCFC module in the tail section just rear
of the bike's battery (Fig. B).
Clean both surfaces with the supplied alcohol swab prior to applying the
Velcro adhesive.
5
Route the PCFC wiring harness forward along the left side frame rail and
under any frame cross-members.
6
Secure the PCFC ground wire with the small ring lug to the negative (-)
terminal of the bike's battery.
7
Locate and unplug the Fuel Injector sub-harness connector just below the fuel
tank on the left side of the bike (Fig. C).
This is a BLACK 6-pin connector.
2014 Honda CB650F/CBR650F - PCFC - 3
