Vitek VTC-IR62NZ922 Manual

Package Includes
VTC-62nZ922 General operation
Camera Instructions
Plastic Anchor:
6 x 30mm (4pcs)
Mounting screw:
4 x 30mm (4pcs)
Assembly screw:
4 x 14mm (4pcs)
Hex l -Wrench :
5mm (1pc)
3mm (1pc)
Safety Precaution
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do noT use other than
specific power source.
CAUTIon: To REdUCE THE RIsK oF ElECTRIC sHoCK,
do noT REMoVE CoVER (oR BACK).
no UsER sERVICEABlE PARTs InsIdE.
REFER sERVICInG To QUAlIFIEd sERVICE PERsonnEl.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons .
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment . This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPs) or a battery.
Complete Installation and
Mounting
Template operation Instructions on Cd
Easy
Video sub-out
Bracket
Cable (1pc)
Coupler for EMI Ferrite
RJ45 Cable (1pc) Core (1pc)
2
3

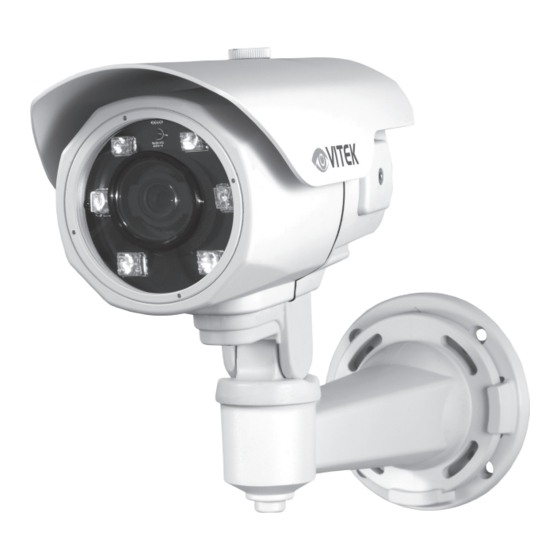

ENVI 2.1MP Vandal Resistant AFZ/WDR IR
• 1/2.9" Sony® CMOS
• 2.1 MegaPixel With full 1080p/720p Output
• Up to 30fps live view@ 1920x1080 (1080p)
• MegaPixel IR Corrected 9-22mm Varifocal Lens
• Mechanical IR Cut Filter (True Day/Night)
• H.264/MJPEG Dual Streaming
• 16:9 Video format
• On-board Intelligence (OBI Technology) delivers Auto-
Focus-Zoom by tracking motion, then optically zooming
in to that area of the frame
• 6 High Power 850nm IR LEDs with up to 300' IR
range
• Fully programmable advanced WDR
• Onvif Compliance
• Integrated Cooling Fan
• Standard SD memory card slot for Local recording
• Advanced OSD Functions: Motion Activated Pointing
Zoom, Defog, Dynamic IR, BLC/HLC, Motion Deblur,
Pixel Defect Compensation, Title Set, Mirror, Flip
• Heavy Duty IP68 rated weather/vandal resistant
aluminum construction
• 12VDC / 24VAC & PoE (Power over Ethernet)
Operation
Specifi cations & installation procedure subject
to change without notice. Visit www.vitekcctv.
com for the most current information available.
Safety Precaution
NOTICE
The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
Avoid installing in areas where shock or vibration may occur.
Pay attention to safety when installing the connection cable and observe that the
cable is not subjected to heavy loads, kinks or damage and no moisture can get in.
never open the device no user serviceable parts
The warranty becomes void if repairs are undertaken by unauthorized persons.
Maintenance and repair have to be carried out only by authorized service centers.
Use only a mild detergent to clean the housing.
The camera should never be operated beyond the technical specifications.
This can lead to damage to the camera and void the warranty.
The camera should never be operated in water.
Complete Installation and Operation Instructions can be
found on Included CD.
4
VTC-IR62NZ922
Network Bullet Camera
