Vitek VTC-IR1600 Specifications

VTC-IR600 / VTC-IR1600

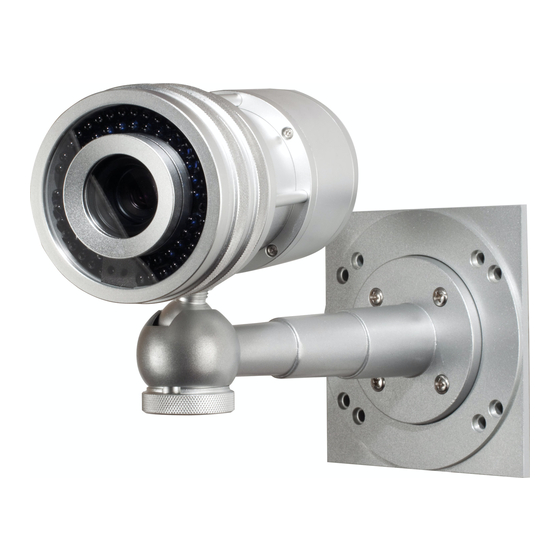

The Long Range IR Bullet Cameras by Vitek combine Long Range Night Vision Surveillance with a Heavy Duty
Vandal Resistant Construction. An Uncompromising 480 Line CCD Module and IR Corrected Lens along with
Individual Infrared LED and Camera/Lens Compartments result in Optimum Video Performance in Day or Night. IR
LEDS are set at both 10 degrees and 30 degrees to enable optimum performance in close-up and distant viewing
applications.
FEATURES
•
1/3" Color dual programmed CCD tuned for optimal
performance in day or night conditions
•
480 TV Lines Resolution
•
60 Infrared LEDs at 850nm enable viewing in Total Darkness
up to 150 Feet (VTC-IR600) / 160 Infrared LEDs at 850nm
enable viewing in Total Darkness up to 350 Feet (VTC-
IR1600)
•
Three individually isolated compartments for: Camera, IR
LEDs, and Power Module.
•
Vari-Focal DC Auto Iris IR Lens 4.2~15.5mm F1.4 (VTC-
IR600) / Vari-Focal DC Auto Iris IR Lens 5.0~50mm F1.4
(VTC-IR1600)
•
Heavy Duty Weather/Vandal Resistant Aluminum
Construction is 100% water and dust proof
VTC-IR600
•
Heavy Duty Aluminum Feed-Through Wall Mount Included
•
External focus and zoom controls for ease of installation and
adjustment
•
150mA Power consumption (IR-Off) & 900mA (VTC-IR600 -
IR On), 1800mA (VTC-IR1600 - IR On)
•
IR picture quality is dramatically improved by separating the
Camera and IR LED compartments, preventing stray IR light
from entering the lens.
•
80,000 Hour LED life expectancy
•
Dual Voltage: 12VDC / 24VAC
•
Dimensions: 6.875" L x 3.5" OD (VTC-IR600 Camera) / 9" L
x 5" OD (VTC-IR1600 Camera) / 8.0" (Mount)
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
Long Distance Infrared
Bullet Cameras
VTC-IR1600
